Tuxedo has a 5 year structural warranty and 1 year parts warranty.

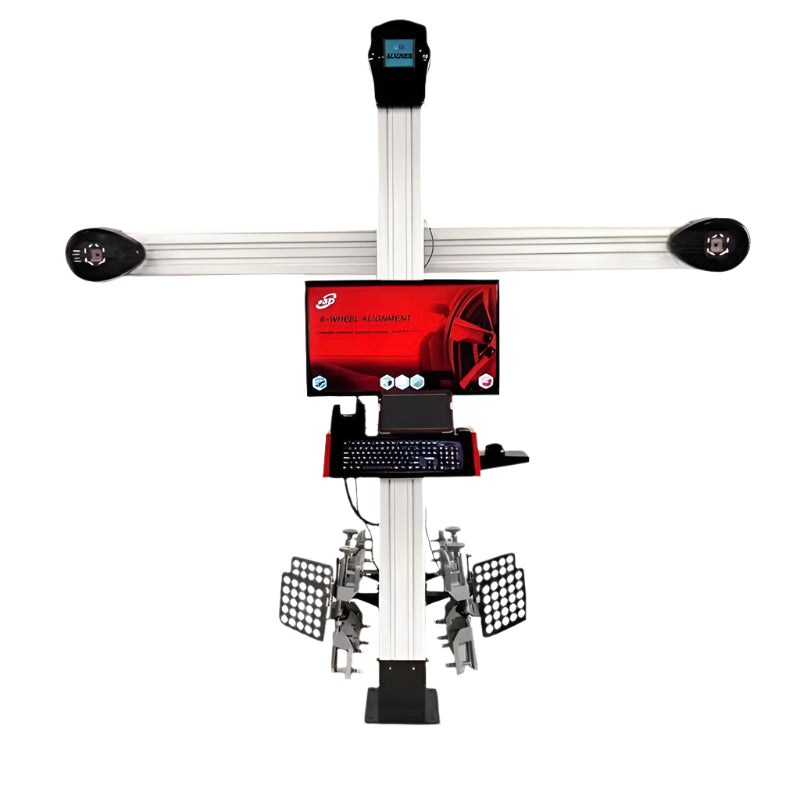

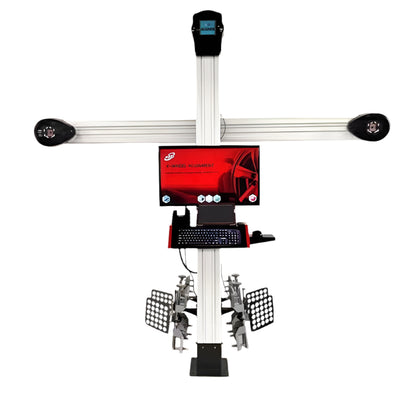

The KATOOL KT-AV6 Pro 3D Wheel Alignment Machine is the all-in-one solution for high-precision wheel alignment on today’s vehicles. Built with cutting-edge imaging technology and a mobile lift-friendly design, the KT-AV6 Pro is engineered to enhance accuracy, speed, and flexibility in any shop environment. Whether you're working on compact sedans or full-size SUVs, this system ensures fast setup, intuitive operation, and outstanding results—without the need for recalibration during installation.
Designed for 2-post lifts and scissor lifts, the KT-AV6 Pro offers real-time data syncing to smartphones and tablets, allowing technicians to monitor alignment readings from anywhere in the bay. The included tablet, 30” display screen, keyboard and mouse, and printer streamline workflow, while Android/iOS-compatible software minimizes ongoing system maintenance. Built-in Wi-Fi and USB support make updates and data transfer effortless.
With unlimited vehicle spec memory and free yearly database upgrades, your alignment machine stays current with all major U.S., European, and Asian vehicle models. Whether you’re running a busy tire shop or a high-volume repair center, the KT-AV6 Pro delivers dependable performance with powerful, user-friendly features.
Key Features
Mobile 3D wheel aligner designed for lifts
Includes tablet, 30" display, keyboard, mouse, and printer
Real-time display syncs with smartphone and tablet for remote monitoring
No calibration needed during installation
Compatible with Android & iOS for simple, low-maintenance operation
Free annual database updates for the latest vehicle models
Built-in Wi-Fi and USB for data transfer and software upgrades
Perfect for 2-post and scissor lift setups
Specifications
| Specification | Value |
|---|---|
| Power Supply | 100–240V, 50/60Hz, 1 Phase |
| Working Temperature | 41°F – 104°F (5°C – 40°C) |
| Cameras | 2 Total |
| Tire Diameter | 9 27/32” – 31 1/2” (250–800 mm) |
| Wheelbase | 62 63/64” – 82 43/64” (1.6–2.1 m) |
| Track Width | 70 55/64” – 177 11/64” (1.8–4.5 m) |
| Product Weight | 440.9 lbs (200 kg) |
| Shipping Weight | 529.1 lbs (240 kg) |
| Shipping Dimensions | 29.9×48×47.2 in & 110.2×12.6×15.7 in |
| Warranty | 1-Year Limited Warranty |
Includes:
✔ Tablet + 30” Display
✔ Keyboard + Mouse
✔ Onboard Printer
✔ Wi-Fi Device + USB Drive
✔ Complete Hardware + Accessory Kit
