Tuxedo has a 5 year structural warranty and 1 year parts warranty.

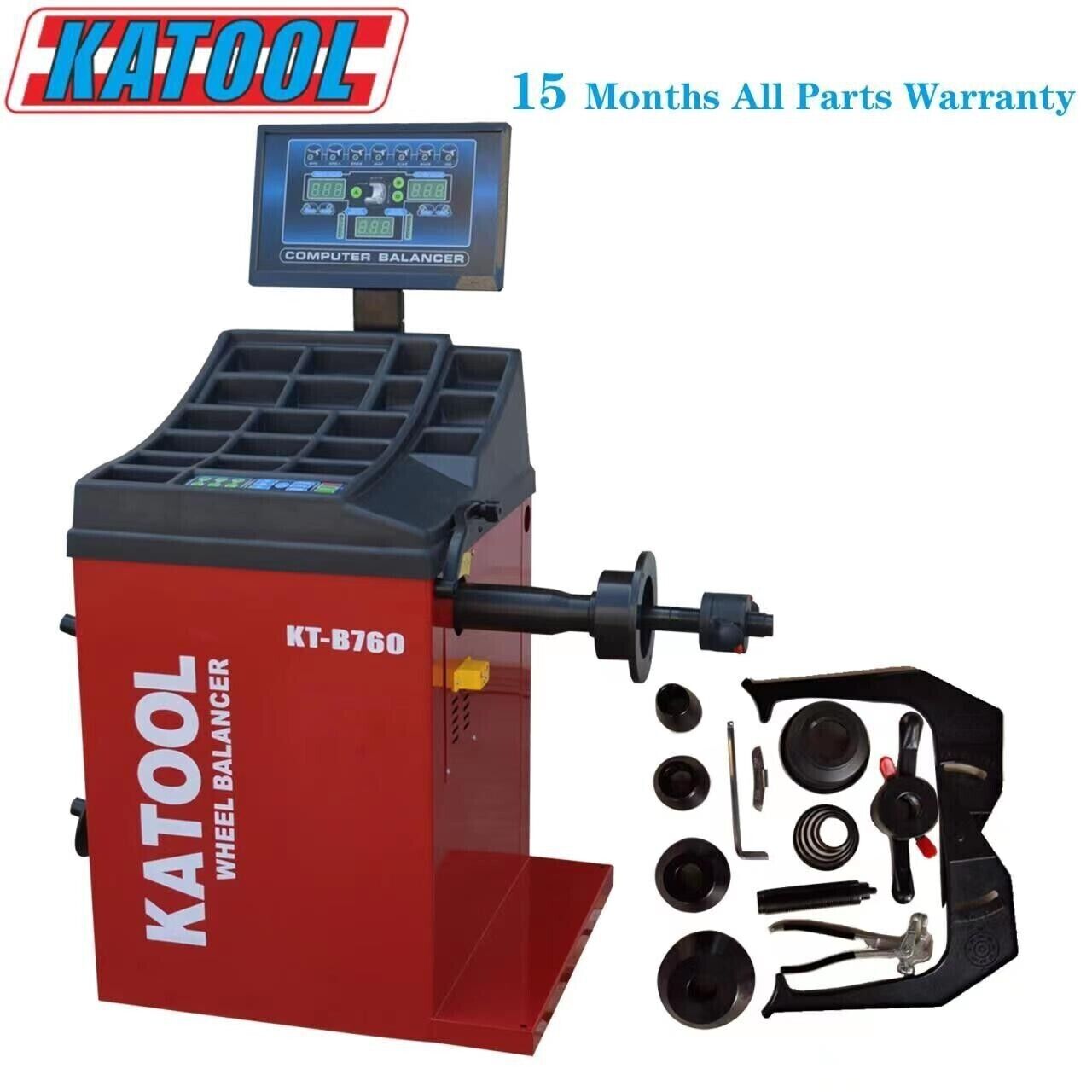

Designed for precise and reliable wheel balancing, the KATOOL KT-B760 Wheel Balancer is built to meet the demands of busy automotive shops. Featuring a rugged 3mm-thick steel frame with 8mm-thick bottom and side sensor support plates, this balancer offers excellent durability and vibration control for accurate measurements.
The unit includes an automatic measurement ruler for quick A & D value inputs and laser guidance for exact weight placement. Its advanced pressure sensor system ensures stable, precise readings every time. Powered by a top-tier motor with pure copper winding, it delivers efficient performance with reduced defects and longer life.
Additional features include moisture- and dust-resistant electronics, multiple balancing modes for various rim types, built-in fault diagnostics, and self-calibration for hassle-free operation. The balancer supports both metric and imperial units and offers an optional wheel guard and extended shaft for wider wheels.
Product Features
Automatic Ruler: Quick and accurate A & D measurement inputs
Laser Guidance: Precise balance weight placement
3mm Steel Frame: Durable construction with minimal vibration
8mm Sensor Support Plates: Stable and accurate sensor operation
High-Performance Motor: Pure copper winding for power and longevity
Heat-Treated Shaft: 36mm for enhanced strength and durability
Moisture/Dust Resistant PCB: Welded for anti-static and dustproof reliability
Multiple Balance Modes: Optimized for different rim profiles
Self-Calibrating System: Built-in diagnostics and easy recalibration
Unit Selection: Switch between Ounce/Gram and MM/Inch
Optional Wheel Guard & Extended Shaft: Safely balance wider wheels
Product Specifications
| Specification | Value |
|---|---|
| Rim Diameter | Up to 30" |
| Wheel Width | 3" to 12" |
| Max Wheel Diameter | 880 mm (34.64") |
| Center Hole Diameter | <135 mm (5.31") |
| Max Wheel Weight | 65 kg (143 lbs) |
| Balancing Speed | 180 RPM |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
| Power Supply | 110V / 1PH / 60Hz |
| Motor Power | 0.25 kW |
