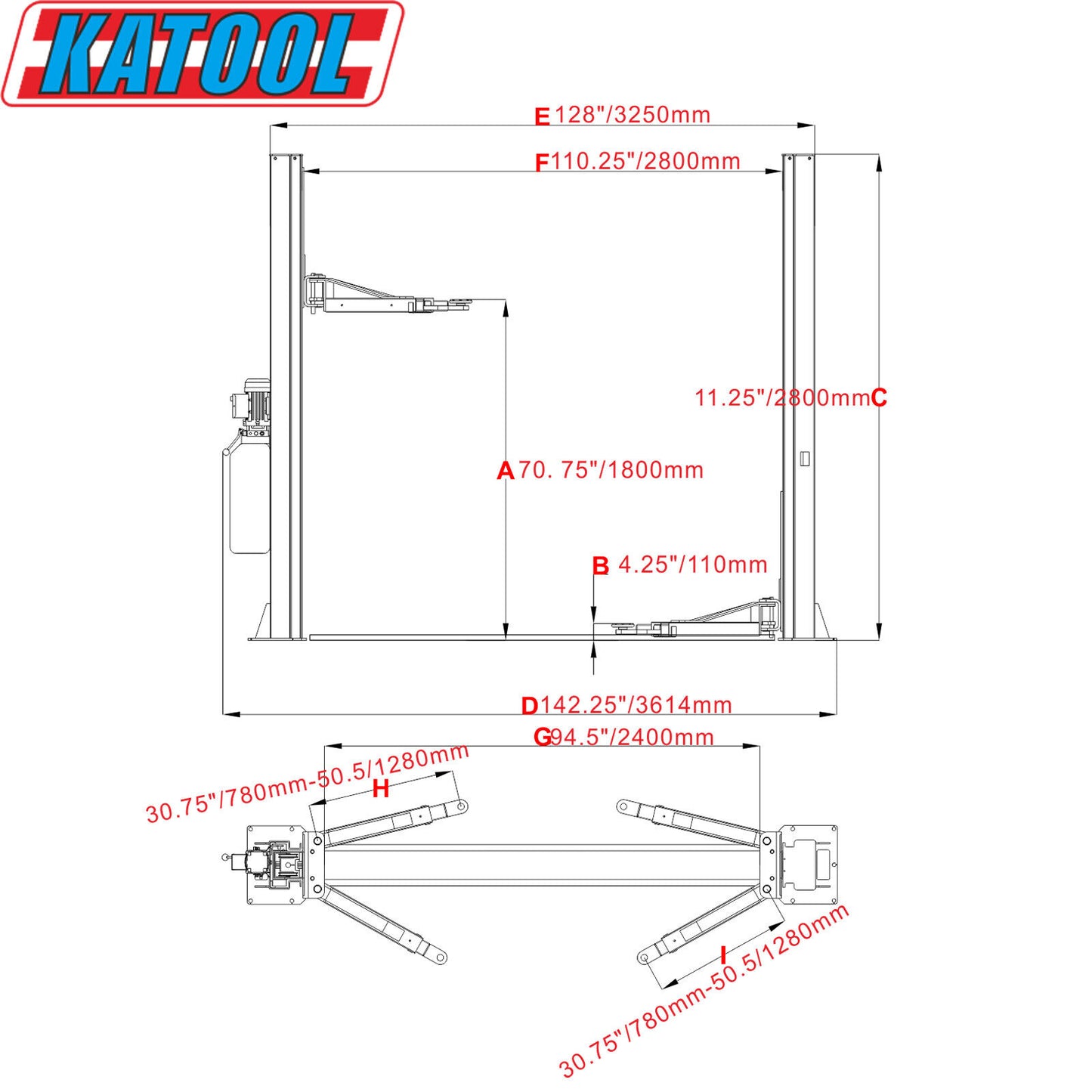

  • Technical drawing of a Katool KT-H100 product with dimensions labeled
1 8

KATOOL KT-H100 10000 lbs. Floor Plate Two Post Lift

KATOOL KT-H100 10000 lbs. Floor Plate Two Post Lift

$1,999.00
$1,999.00
Sold out
LTL Freight cost for continental USA is $400

Availability: Low stock: 25 left
SKU: KT-H100
Vendor: Katool
Category: Two Post Lift
Tags: Automotive Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

KT-H100 Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

Katool KT-100H 10,000 LB Two Post Lift – Built for Strength, Safety, and Versatility

Take your shop to the next level with the Katool KT-100H Two Post Lift, designed to handle vehicles up to 10,000 lbs with confidence. Whether you’re working on cars, trucks, or SUVs, this rugged lift delivers unmatched stability and functionality thanks to its heavy-duty construction, dual hydraulic chain-drive cylinders, and base plate design.

Engineered with safety in mind, the KT-100H is CE Certified and rigorously tested for dynamic and static loads, giving you the peace of mind you need in a high-performance shop. This lift features a symmetric arm setup for balanced lifting and dual manual safety locks for easy release from either column.

Included with the lift are extension adaptors (+30mm and +120mm), letting you work with a wider variety of vehicle frames. Additional highlights like rubber door guards, foot protection guardrails, and an integrated toolbox make this lift a reliable, all-in-one solution for professional and home garages alike.

⚠ Important: Installation requires a concrete surface with a minimum thickness of 5.9” (150mm) and 3000 PSI strength. Always verify site conditions before installation to ensure safety and performance.

Product Features

  • 10,000 lb lifting capacity for cars, SUVs, and light-duty trucks

  • Dual hydraulic chain-driven cylinders for smooth, even lifting

  • Symmetric arm configuration for vehicle balance

  • Base plate design for added stability

  • Two-side manual safety release

  • Rubber door protection pads

  • Includes +30mm and +120mm extension adaptors

  • Integrated tool tray and foot-guard safety system

  • Available in 220V or 110V motor options
 Close-up of a mechanical component with scissors and Katool KT-H100 branding. Red two-post car lift with tool attachments on a white background
Product Specifications
Lifting Capacity 10,000 lbs / 4,500 kg
Max. Lifting Height 70.75 in / 1,800 mm
Minimum Height 4.25 in / 110 mm
Overall Height 110.25 in / 2,800 mm
Overall Width 142.25 in / 3,614 mm
Outside Column Width 128 in / 3,250 mm
Inside Column Width 110.25 in / 2,800 mm
Drive-Through Clearance 94.5 in / 2,400 mm
Front Arm Reach (Min–Max) 30.75–50.5 in / 780–1,280 mm
Rear Arm Reach (Min–Max) 30.75–50.5 in / 780–1,280 mm
Motor 220V / 60Hz / 1PH / 2.2kW
Net Weight 1,256 lbs / 570 kg
