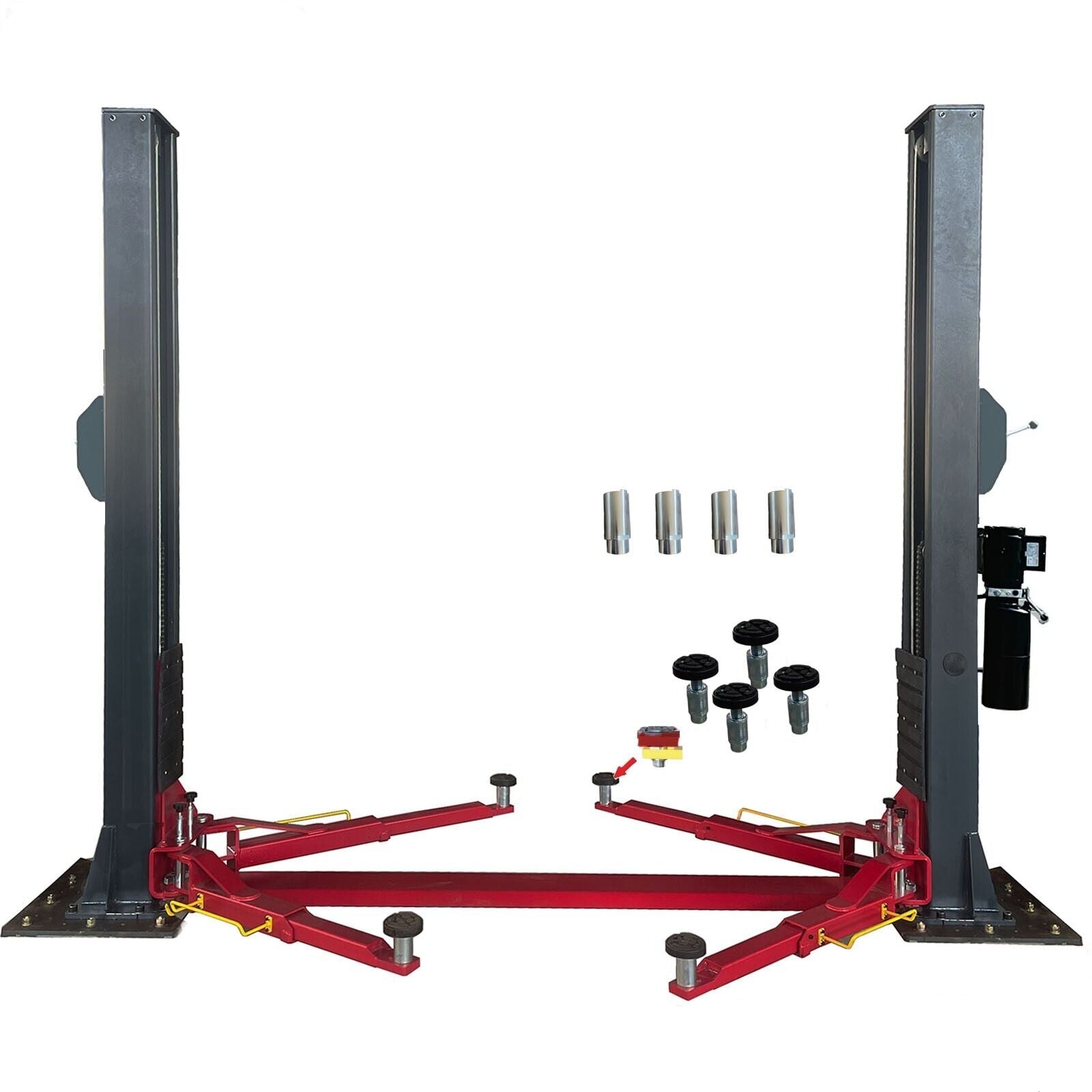

Katool KT-H120D 12,000 LB Floor Plate Two Post Lift – Heavy-Duty Lifting with Practical Design

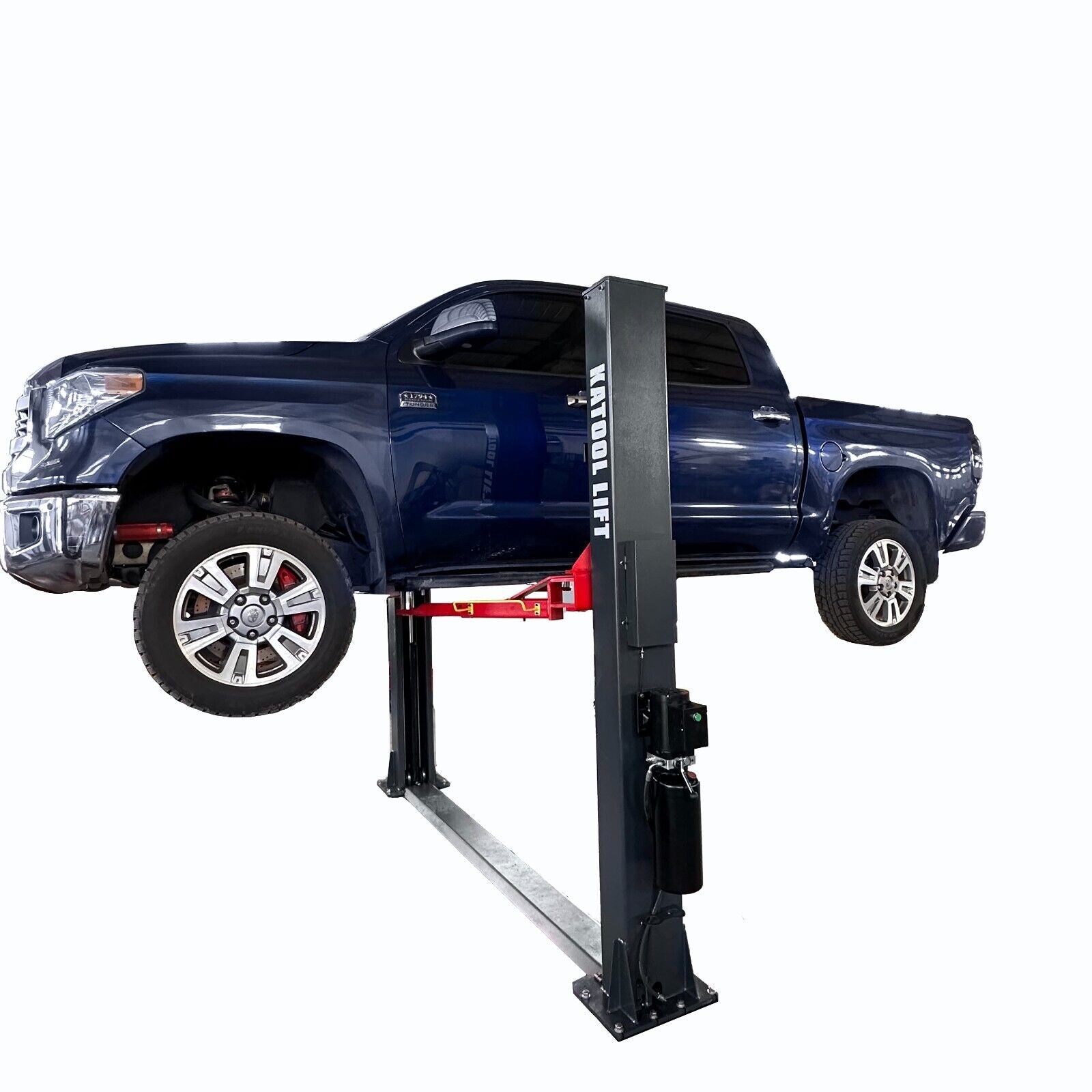

Designed for serious power and built for real-world shop conditions, the Katool KT-H120D Two Post Lift offers a strong 12,000 lb lifting capacity, making it the ideal choice for full-size trucks, vans, and heavier commercial vehicles. With a floor plate design and symmetric arm layout, this lift is perfect for low-ceiling garages that still need top-tier performance.

The KT-H120D features dual hydraulic chain-drive cylinders for smooth, stable lifting and a manual safety lock release located on a single column for simplified operation. Screw-on lifting pads and +100mm extension adaptors come standard, offering extra height and reach for lifting a wide range of vehicles.

Built with safety in mind, this lift includes rubber door guards to protect vehicle finishes and operates using a high-quality 220V/60Hz/1PH hydraulic system, ensuring reliable performance day in and day out.

⚠ Important Installation Requirement: Concrete must be at least 5.9" thick (150 mm) and rated 3000 PSI minimum. Always verify site conditions before purchasing.

Key Features

• Heavy-duty 12,000 lb lifting capacity for larger vehicles

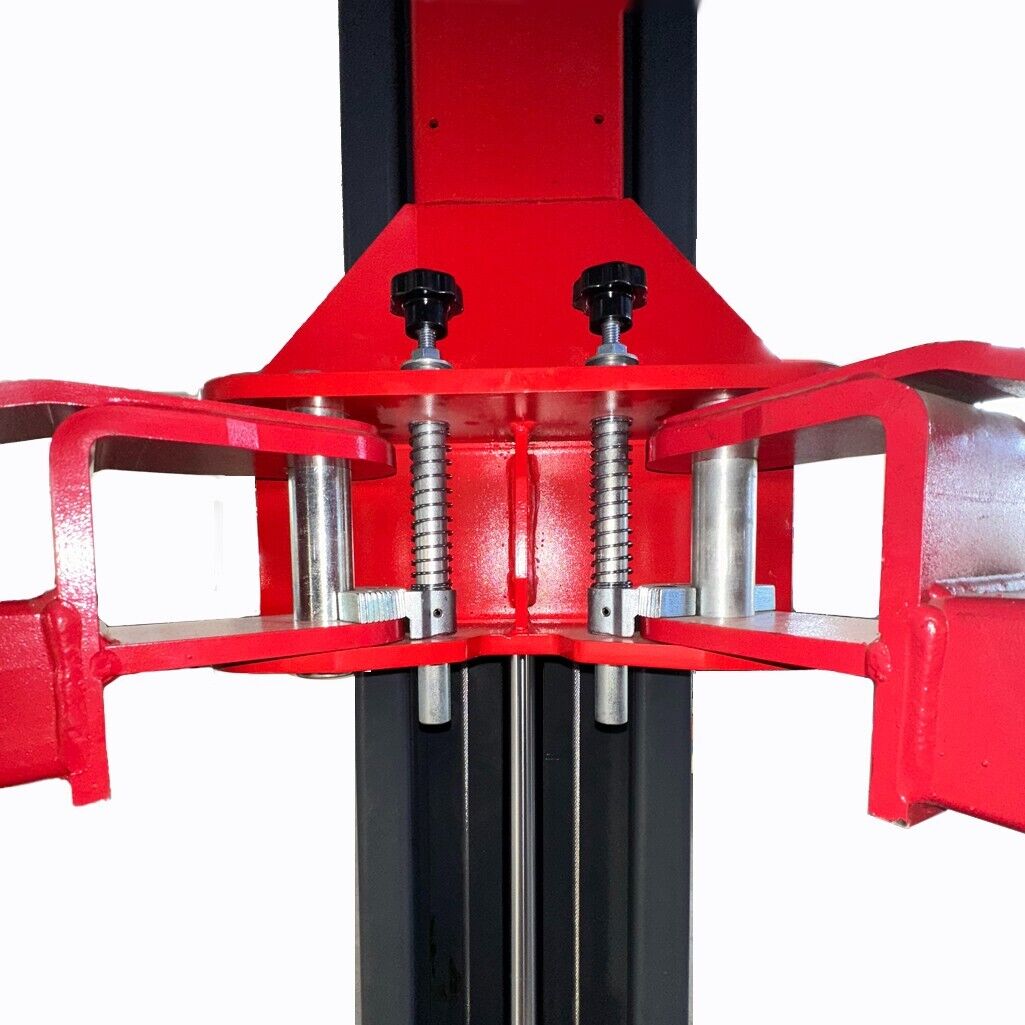

• Symmetric arms for balanced lifting

• Base plate design – ideal for shops with lower ceilings

• Manual safety lock release on one side for simplified use

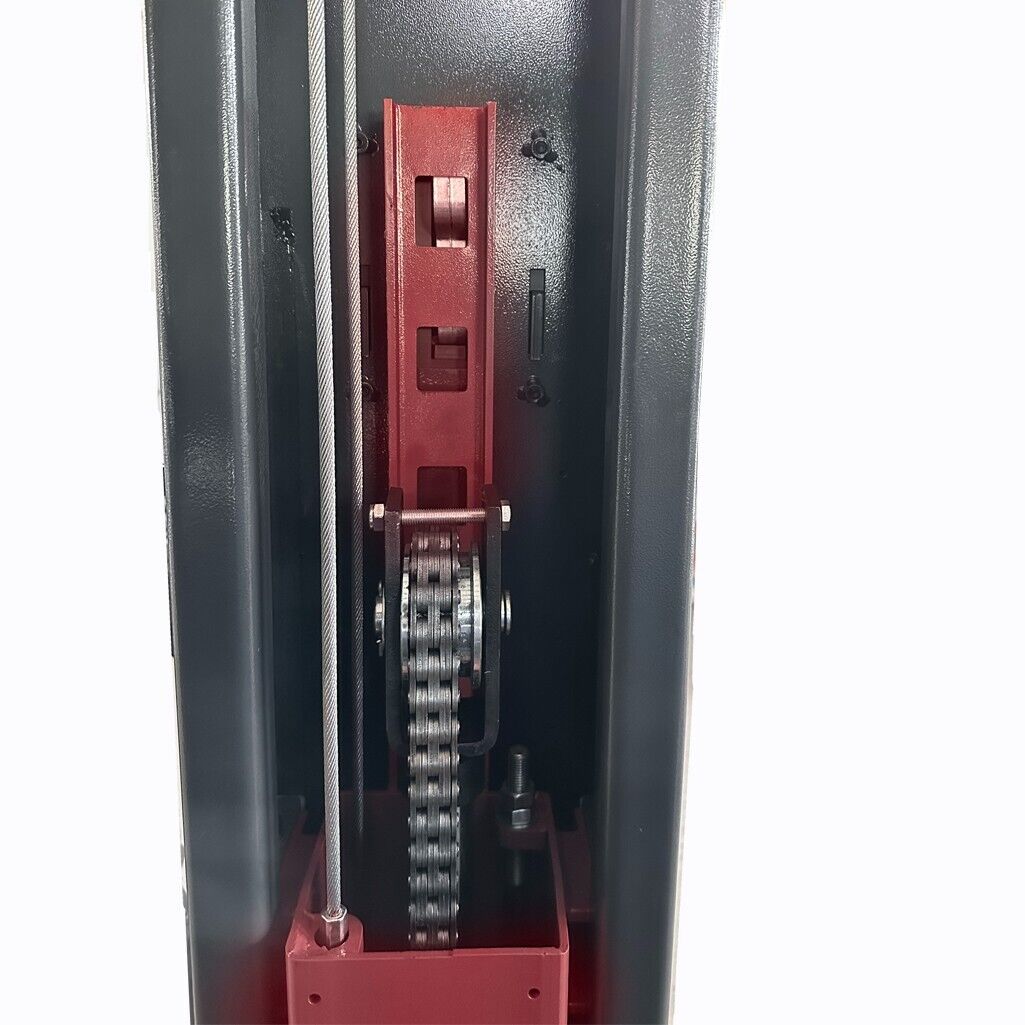

• Dual hydraulic chain-drive cylinders for smooth operation

• Rubber pad door protection to prevent vehicle damage

• Screw-on pads with +100mm extension adaptors included

• Runs on a 220V/60Hz/1PH high-efficiency hydraulic system

Technical Specifications

In stock and ready for pickup or delivery. Shop the Katool KT-H120D today at TurboLifts.com—your trusted source for professional-grade automotive equipment.
