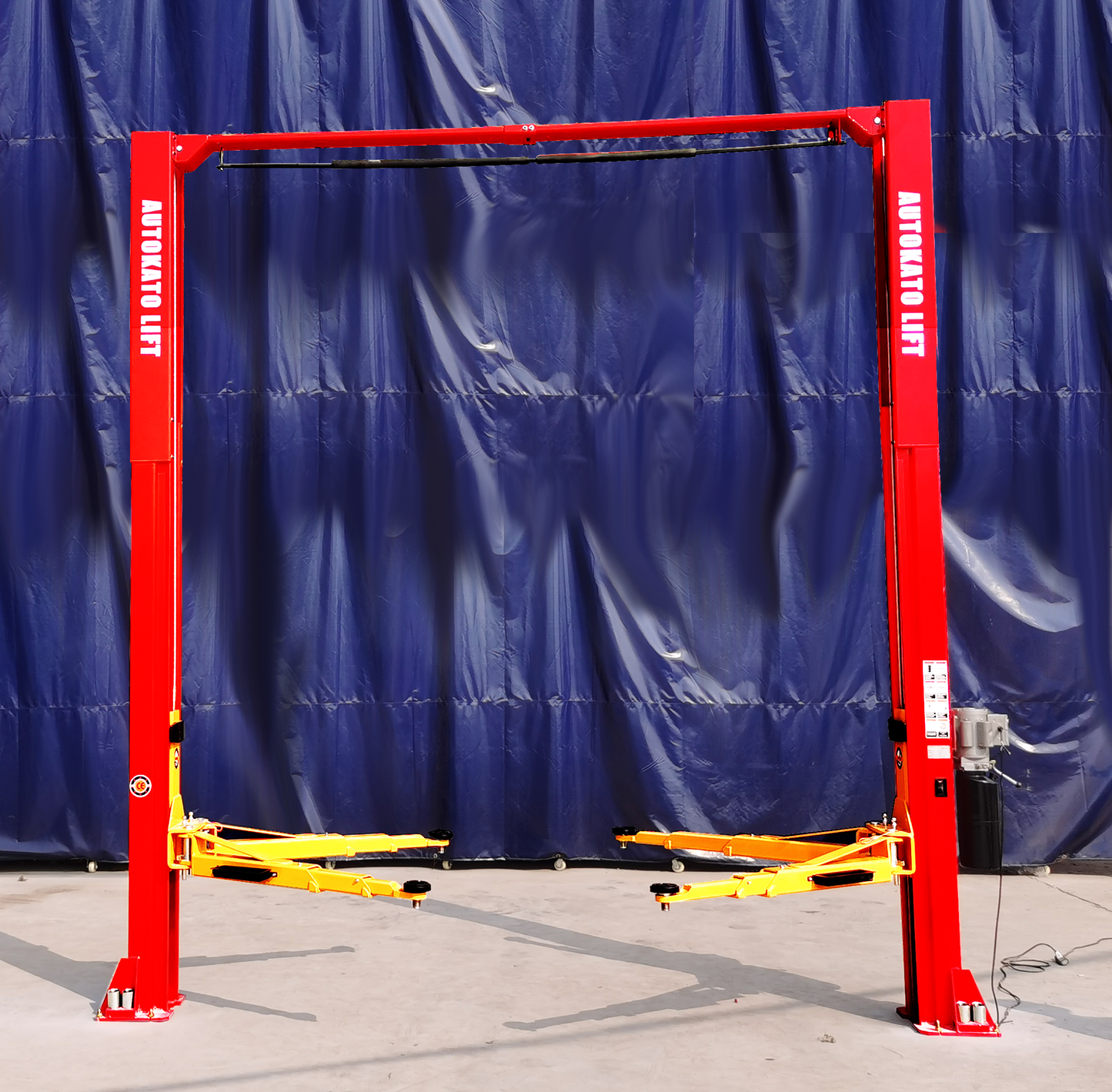

  • Red automotive lift with yellow parts against a blue tarp background
1 8

KATOOL KT-M120 12000 lbs. Clear Floor Two Post Lift

KATOOL KT-M120 12000 lbs. Clear Floor Two Post Lift

$2,599.00
$2,599.00
Sold out
Shipping calculated at checkout.

Availability: Low stock: 23 left
Vendor: Katool
Category: Two Post Lift
Tags: Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Tuxedo has a 5 year structural warranty and 1 year parts warranty.

Tuxedo Warranty Form

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

View full product details

Katool KT-M120 12,000 LB Clear Floor Two Post Lift – Built for Bigger Jobs

The Katool KT-M120 is your heavy-duty solution for lifting larger vehicles with confidence and precision. With a powerful 12,000 lb capacity, this clear floor two post lift is ideal for full-size trucks, commercial vehicles, and heavy-duty service centers. Its symmetric arm configuration, dual hydraulic chain-drive cylinders, and overhead shutoff bar make it both high-performing and operator-safe.

Certified to CE standards, the KT-M120 exceeds international safety benchmarks, undergoing 115% dynamic and 150% static load tests. It includes rubber door protection pads, +30mm and +120mm extension adaptors, and manual safety locks on both columns for added versatility and peace of mind.

With a spacious 117.75" drive-through clearance and 165.5" total width, this lift delivers superior access and adaptability. Whether you're working in a commercial bay or outfitting a serious home garage, the KT-M120 gives you strength, space, and safety in one high-performance package.

⚠ Concrete Requirement: Must be installed on concrete that is at least 5.9 inches thick (150mm) with a minimum 3000 PSI strength. Always verify surface specs before installation.

Key Features

  • 12,000 lb lifting capacity – Ideal for full-size trucks and fleet vehicles

  • CE Certified with 115% dynamic and 150% static load-tested

  • Symmetric arm design for balanced vehicle lifting

  • Clear floor design for unobstructed workspace

  • Dual hydraulic chain-drive cylinders ensure reliable operation

  • Manual safety lock release on both posts

  • Rubber pad door guards protect vehicle finishes

  • Includes +30mm and +120mm extension adaptor sets

  • Overhead shutoff bar prevents accidental over-lifting

  • Foot protection guardrails and integrated tool tray

  • High-quality hydraulic system with 220V/60Hz/1PH (110V optional)

Technical Specifications

Specification Details
Lifting Capacity 12,000 lbs / 5,500 kg
Max. Lifting Height 70.75 in / 1,800 mm
Minimum Height 4.25 in / 110 mm
Overall Height 166.75 in / 4,235 mm
Overall Width 165.5 in / 4,204 mm
Outside Column Width 151.25 in / 3,840 mm
Inside Column Width 130 in / 3,390 mm
Drive-Through Clearance 117.75 in / 2,990 mm
Motor 220V / 60Hz / 1PH / 2.2kW
Net Weight 1,653 lbs / 750 kg

Now available for fast delivery or pickup. Shop the Katool KT-M120 at TurboLifts.com—your trusted supplier for professional-grade lifting equipment.
