Tuxedo has a 5 year structural warranty and 1 year parts warranty.

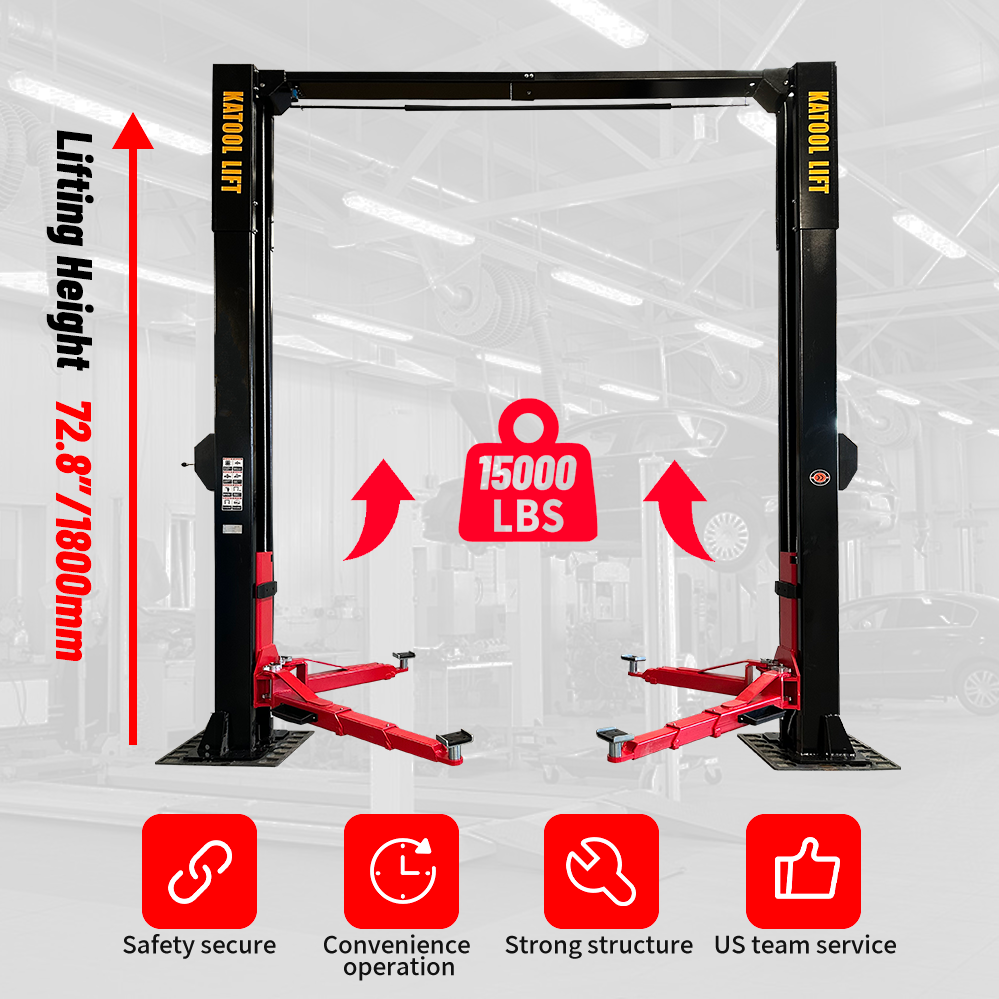

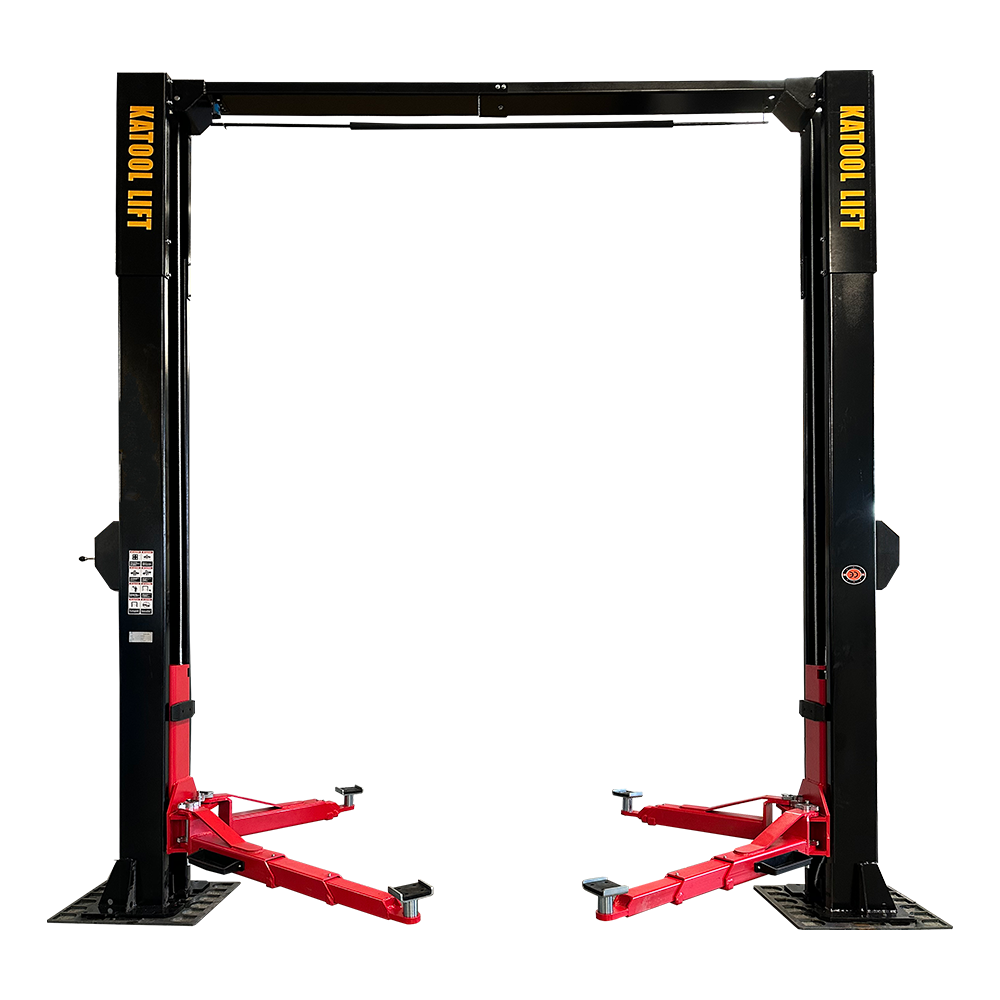

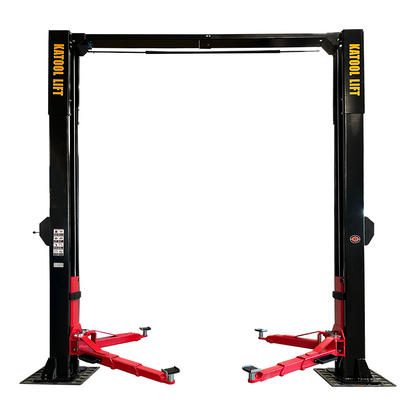

When power, safety, and reliability matter most, the Katool KT-M150D delivers. This 15,000 lb clear floor two post lift is engineered to handle the biggest vehicles in your shop—from heavy-duty trucks to full-size commercial vans—with precision and ease.
Built with asymmetric arm geometry and a single-point safety lock release, the KT-M150D offers excellent door clearance and simplified operation. Its clear floor design allows for unobstructed workspace access, while the heavy-duty direct drive hydraulic system ensures smooth and stable lifting every time.
The rugged steel frame is CE Certified and engineered to meet or exceed safety standards, offering professional-grade performance for fleet garages, diesel repair centers, and busy service bays.
⚠ Installation Requirement: Requires 5.9” (150mm) thick concrete rated at 3000 PSI minimum. Forklift or mechanical equipment needed for unloading. Always verify your site meets requirements prior to installation.
15,000 lb lifting capacity – Ideal for full-size pickups, box trucks, and work vans
Clear floor design for full under-vehicle access

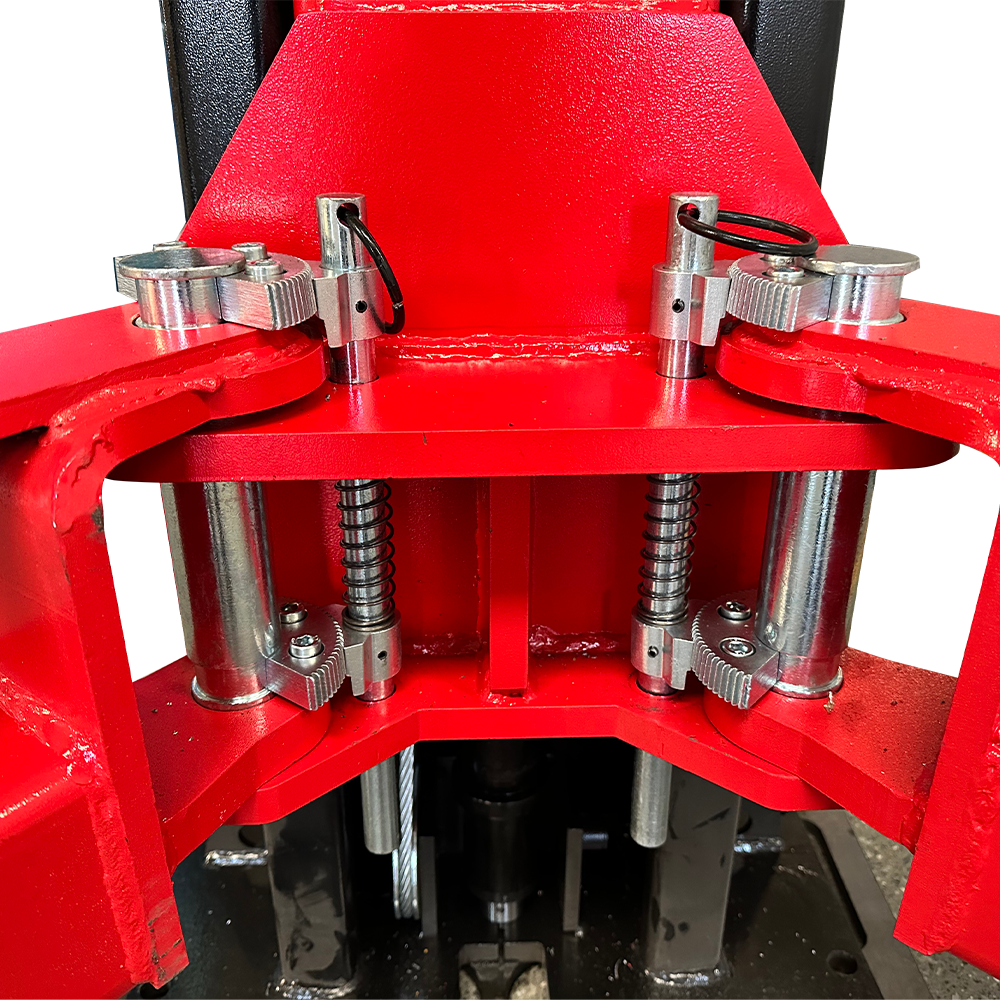

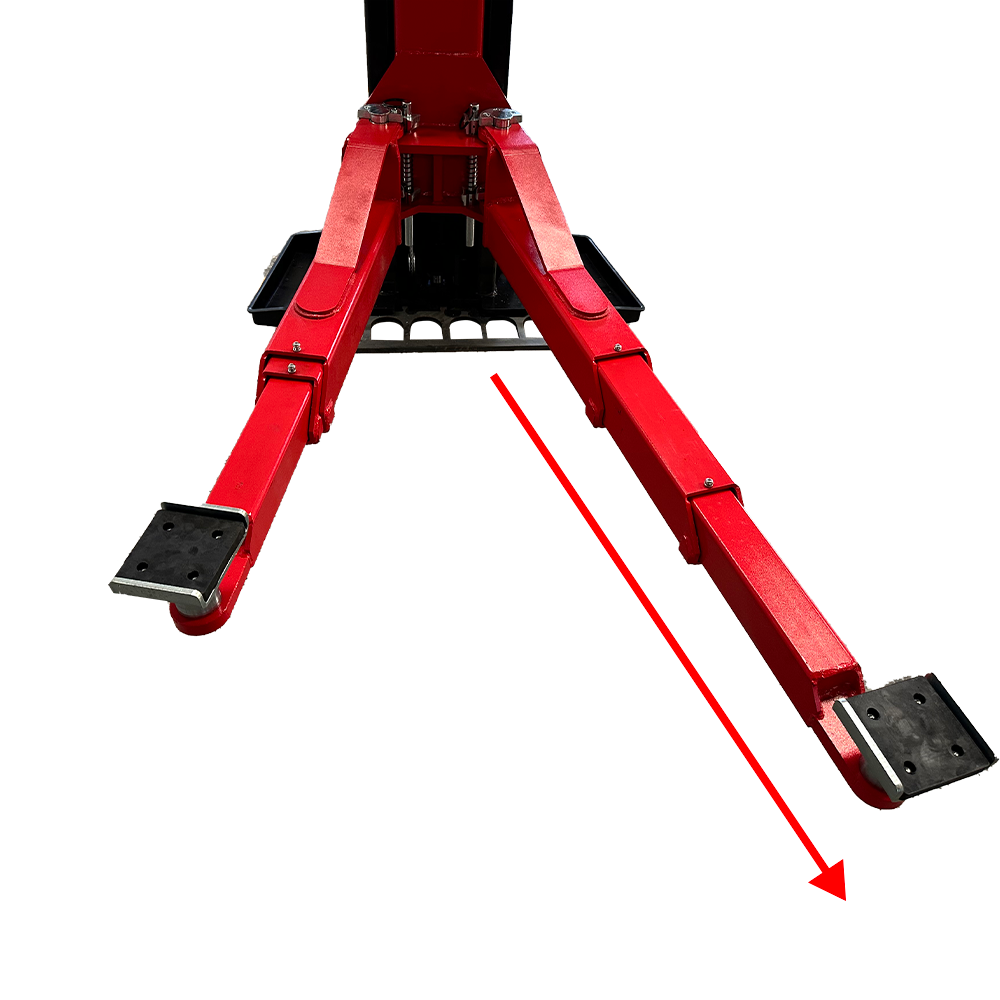

Asymmetric arms for improved door clearance and technician access

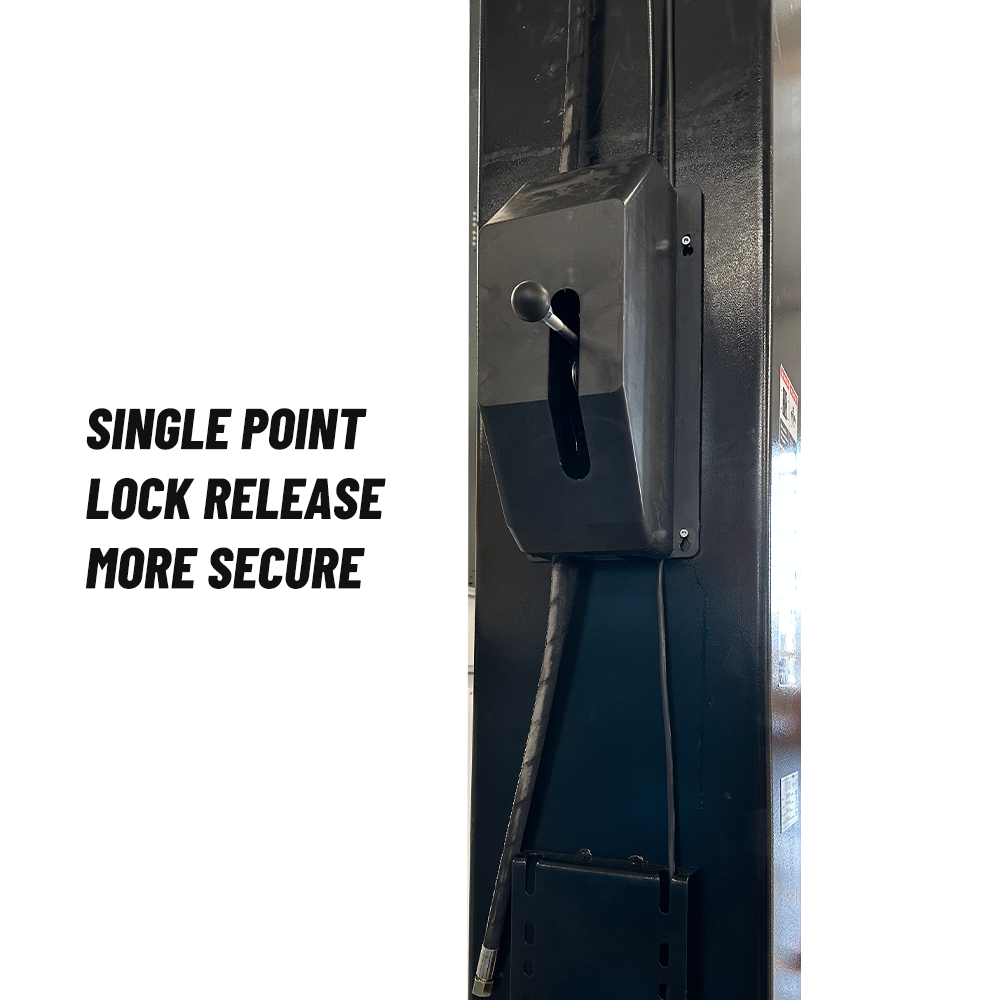

Single-point safety lock release for easy, secure lowering

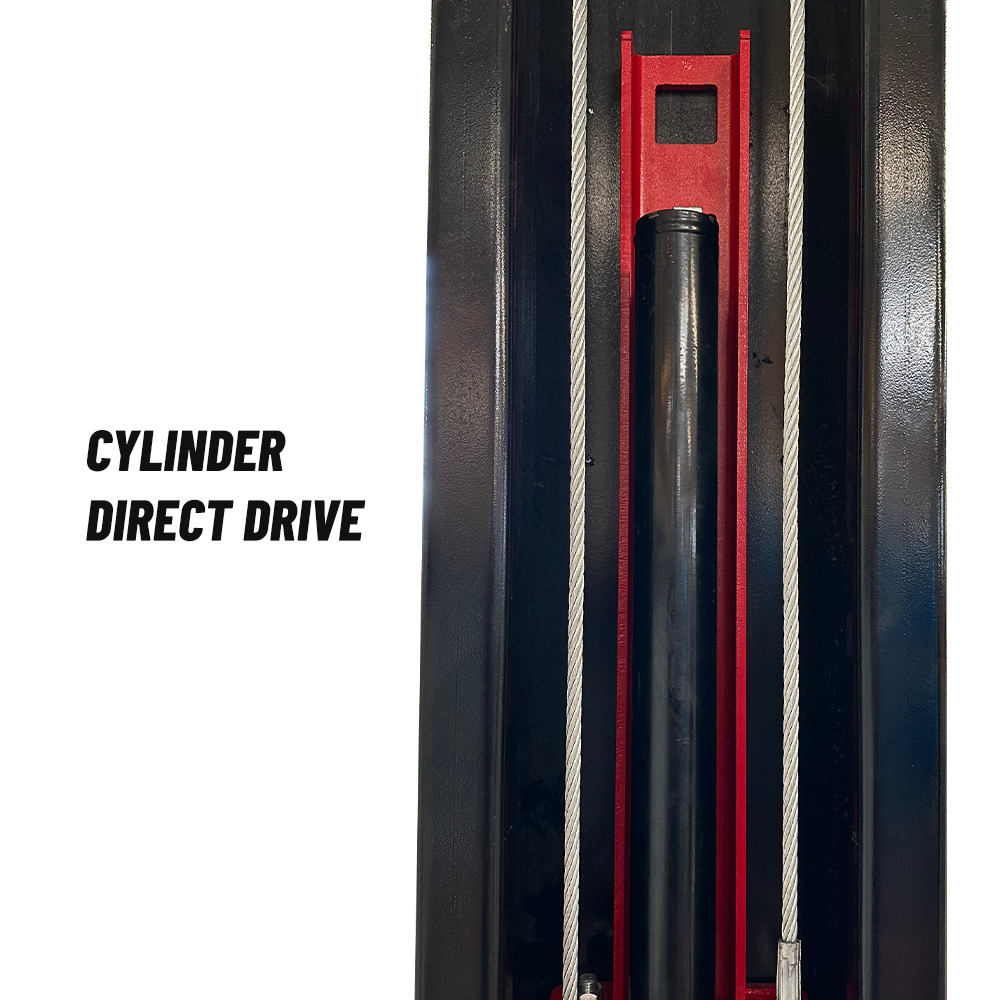

Direct drive hydraulic system reduces maintenance and improves lift efficiency
CE Certified construction – Built to meet demanding safety standards
Rubber pad door guards and adjustable screw pads included
Designed for commercial use, fleet service, diesel shops, and HD repair
| Specification | Details |
|---|---|
| Lifting Capacity | 15,000 lbs / 6,800 kg |
| Max. Lifting Height | 72.8 in / 1,830–1,900 mm |
| Minimum Pad Height | ~4.5 in / 115 mm |
| Overall Height | ~150–170 in / 3,810–4,320 mm |
| Overall Width | ~160–170 in / 4,060–4,320 mm |
| Inside Column Width | ~130 in / 3,300 mm |
| Drive-Through Clearance | ~115–120 in / 2,920–3,050 mm |
| Arm Type | Asymmetric |
| Locking System | Single-Point Manual Release |
| Drive System | Direct Drive |
| Motor | 220V / 60Hz / 1PH / 2.2kW |
| Net Weight | ~2,200–2,500 lbs / 1,000–1,130 kg |
Available now for delivery or local pickup. Get the power your shop needs with the Katool KT-M150D—only at TurboLifts.com, your trusted source for premium automotive lifts and equipment.
