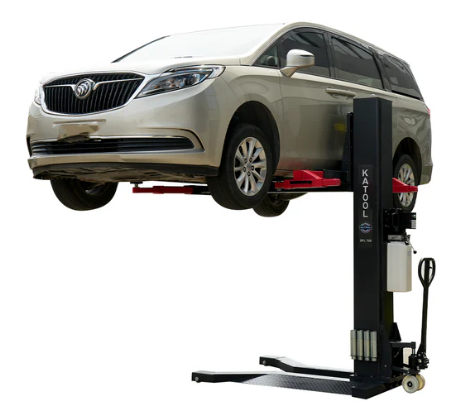

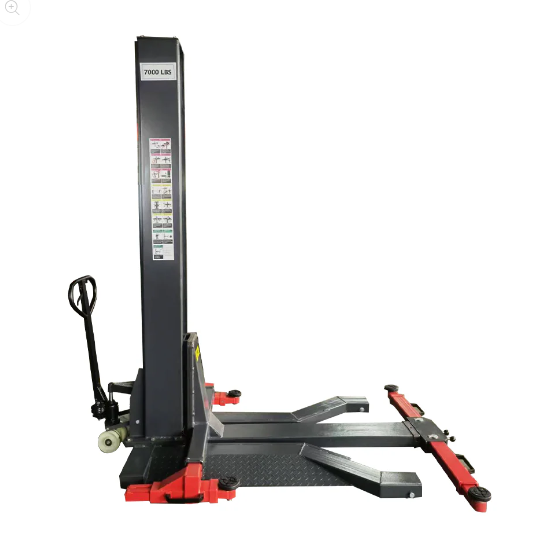

The KATOOL KT-SPL700 Single Post Lift offers a robust and space-saving solution perfect for busy shops needing dependable lifting power with minimal footprint. Designed for versatility, this single-post lift supports up to 7,000 lbs, making it ideal for a wide range of vehicles including cars, SUVs, and light trucks. Its compact design and adjustable lifting pads ensure compatibility with various vehicle sizes while maintaining a small installation footprint. Powered by a 110V motor requiring a 30 amp breaker, this lift balances performance and convenience, equipped with durable construction for long-lasting reliability.
| Key Features |
|---|
| 7,000 lbs (3,175 KG) Lifting Capacity |
| Adjustable Lifting Pad Distances for Vehicle Versatility |
| Compact Overall Height for Easy Installation in Low-Ceiling Spaces |
| Durable Single-Post Design with Heavy-Duty Column |
| 110V Motor with 30 Amp Breaker Requirement |

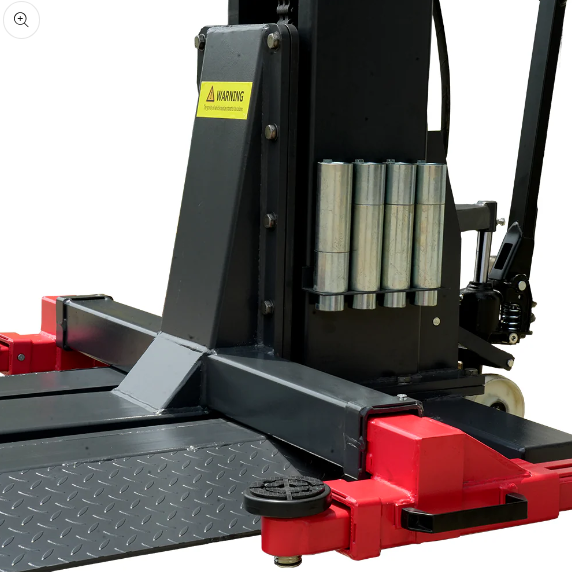

| Includes Adapter Sets for Added Lift Height Flexibility |
| Self-Lubricated Bushings and Bearings for Smooth Operation |
|
 |
| Specification | Value |
|---|---|
| Lifting Capacity | 7,000 lbs (3,175 KG) |
| Overall Height | 102.75 in (8 ft 6.75 in) |
| Max Lifting Height (No Adapters) | 71.67 in (5 ft 11.67 in) |
| Max Clearance | 68 in (5 ft 8 in) |
| Minimum Height | 5 in |
| Distance Between Lifting Pads (Column Side to Offside) | 39.5 in – 81 in |
| Distance Between Lifting Pads (Column Side to Column Side) | 53 in – 73 in |
| Distance Between Lifting Pads (Offside to Offside) | 54.33 in – 91.5 in |
| Motor/Electric Requirement | 110V, 30 Amp Breaker |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 1,900 lbs |
| Adapter Heights | Four adapters: 2.75 in and 6 in |
