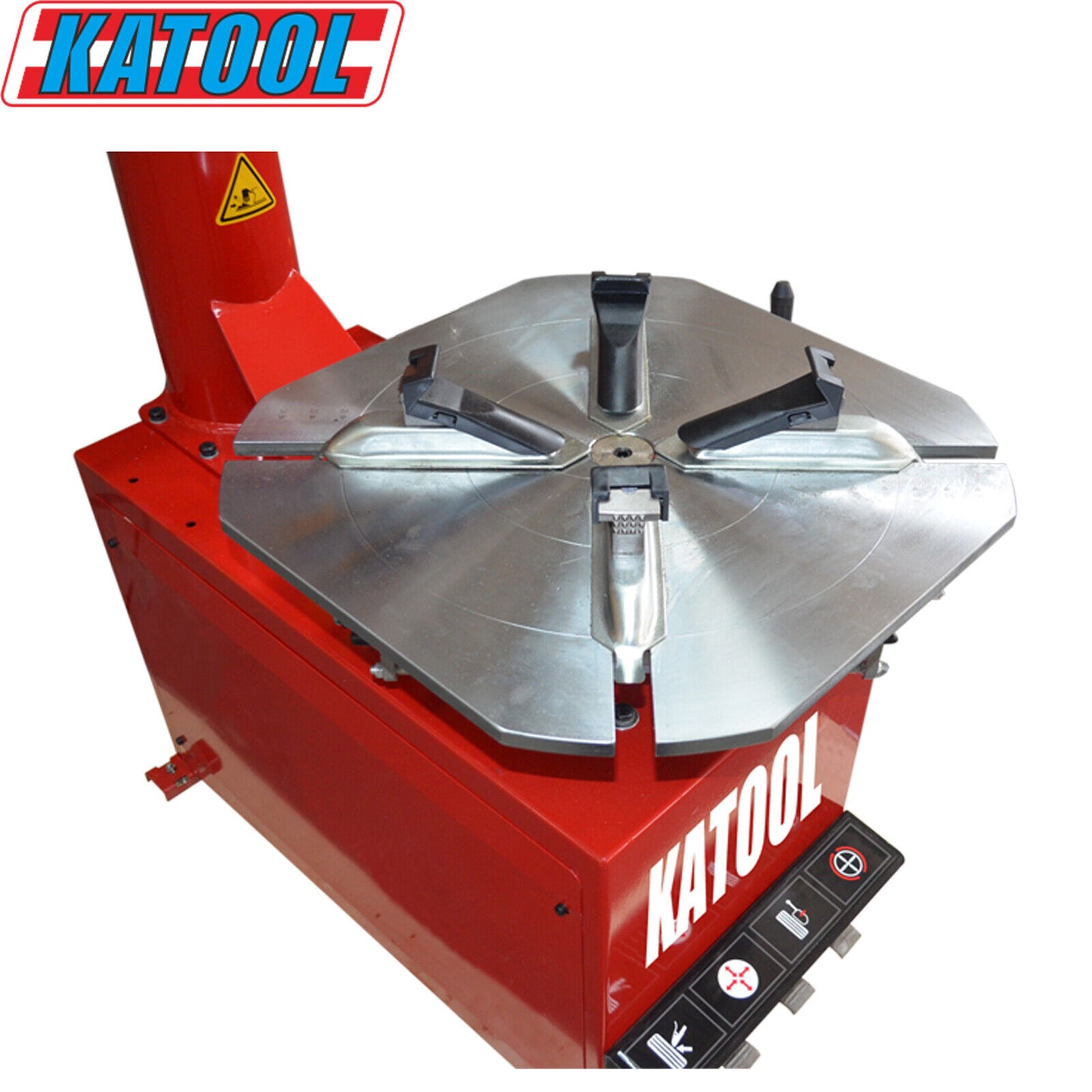

KATOOL KT-T830 Tire Changer with Double Assist Arms

KATOOL KT-T830 Tire Changer with Double Assist Arms

Regular price $1,549.00
Regular price Sale price $1,549.00
Sold out
Shipping calculated at checkout.

AvailabilityLow stock: 21 left

Vendor: Katool
Category: Tire Changer
Tags: Tire Changer

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Tuxedo has a 5 year structural warranty and 1 year parts warranty.

Tuxedo Warranty Form

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

View full product details

Katool KT-T830 Tire Changer with Double Assist Arms – 120V

Take control of even the most stubborn tires with the Katool KT-T830, a professional-grade tire changer built for performance, precision, and protection. Designed specifically for busy shops and garages, the KT-T830 features double assist arms, a bead blast seater, and a 7.32" stainless steel bead breaker cylinder for maximum leverage and convenience.

This machine is engineered with carburized alloy steel jaws and a stainless steel mounting head, giving it extreme durability and precision when handling high-volume workloads. Every contact point is rim-safe, thanks to protective covers that prevent cosmetic damage. A pull-type pedal control system paired with a 2.0HP motor ensures smooth, reliable operation.

The KT-T830 is equipped with a closed body cabinet, a high-efficiency lubricator, and is optimized for North American power with a 120V/1PH setup, making it a powerful and reliable addition to any tire service bay.


Product Features:

  • 8,000 lbs tire handling capacity (approximate, based on structure)

  • Alloy steel jaws with deep carburization for extra strength and durability

  • Stainless steel mounting head with plastic rim guard

  • Double assist arms for easier handling of low-profile and stiff sidewall tires

  • Bead blast seater with post tank for quick inflation

  • Pedal-controlled inflation gauge for hands-free tire seating

  • 2.0HP motor with pure copper winding for high torque and low heat

  • Closed cabinet protects internal components from debris and damage

  • Stainless steel 7.32" bead breaker cylinder for consistent breaking force

  • High-quality air lubricator extends life of pneumatic components

  • Ideal for tire shops, service centers, and mobile tire technicians


Product Specifications:

Specification Details
Max Wheel Diameter 41" (1040mm)
Max Wheel Width 15" (380mm)
Outside Clamp Range 12" – 24"
Inside Clamp Range 14" – 26"
Motor Power 2.0HP / 1.5KW
Power Supply 120V / 1PH
Rotation Speed 6.8 RPM
Air Pressure Range 116–145 PSI (0.8–1.0 Mpa)
Net Weight 529 lbs (240 KG)
Bead Breaker Cylinder 7.32" (186mm), stainless

Installation Notes:

  • Install on level concrete with proper power and air access

  • Anchor if required for stability

  • Connect to regulated air supply (110–145 PSI)

  • Calibrate inflation gauge, test pedal system, and apply tire lube before use


The Katool KT-T830 delivers the strength and control serious shops need to handle modern tires with speed and precision. Backed by Katool's quality engineering, it's the perfect addition for high-volume tire changers who want top-tier performance and durability.
