Tuxedo has a 5 year structural warranty and 1 year parts warranty.

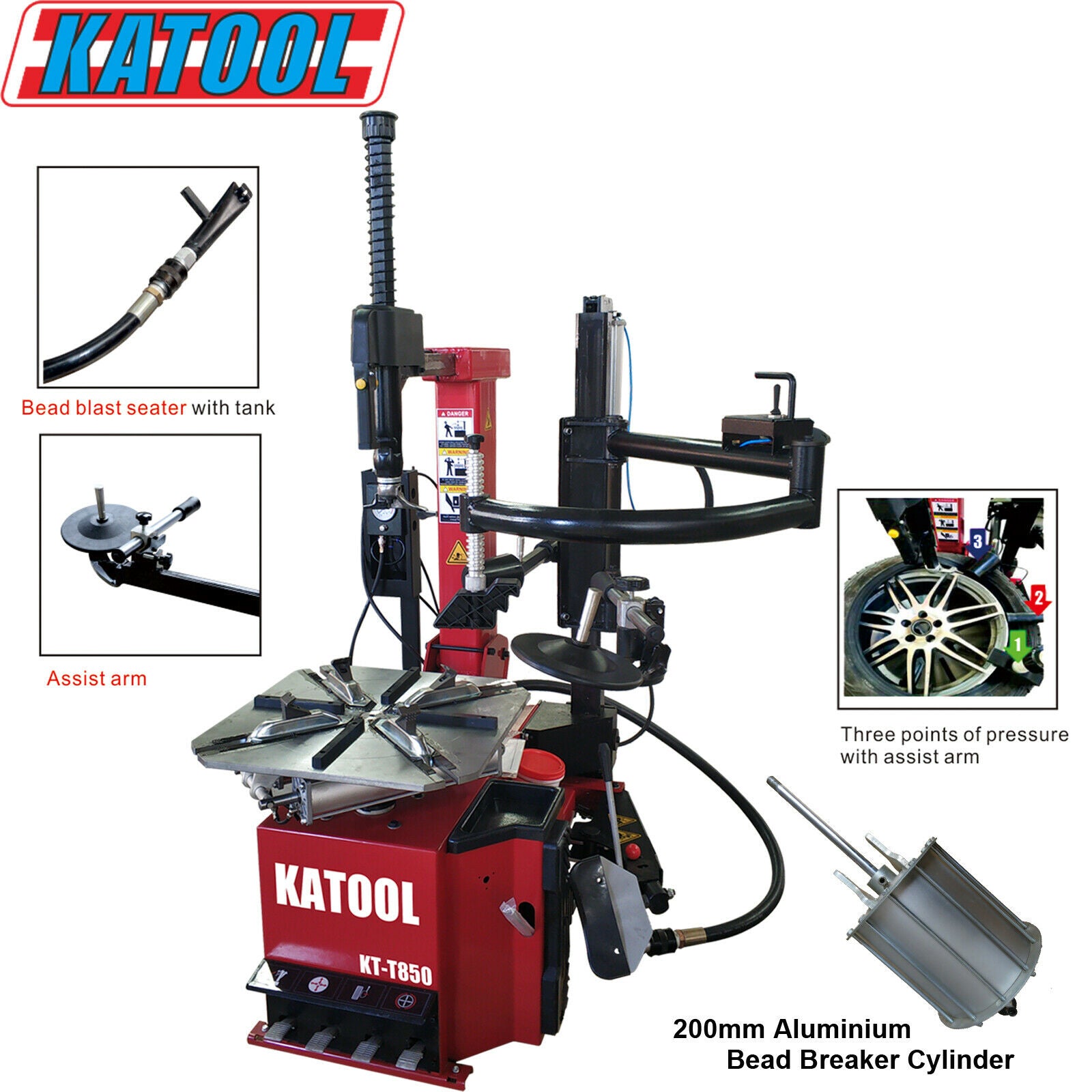

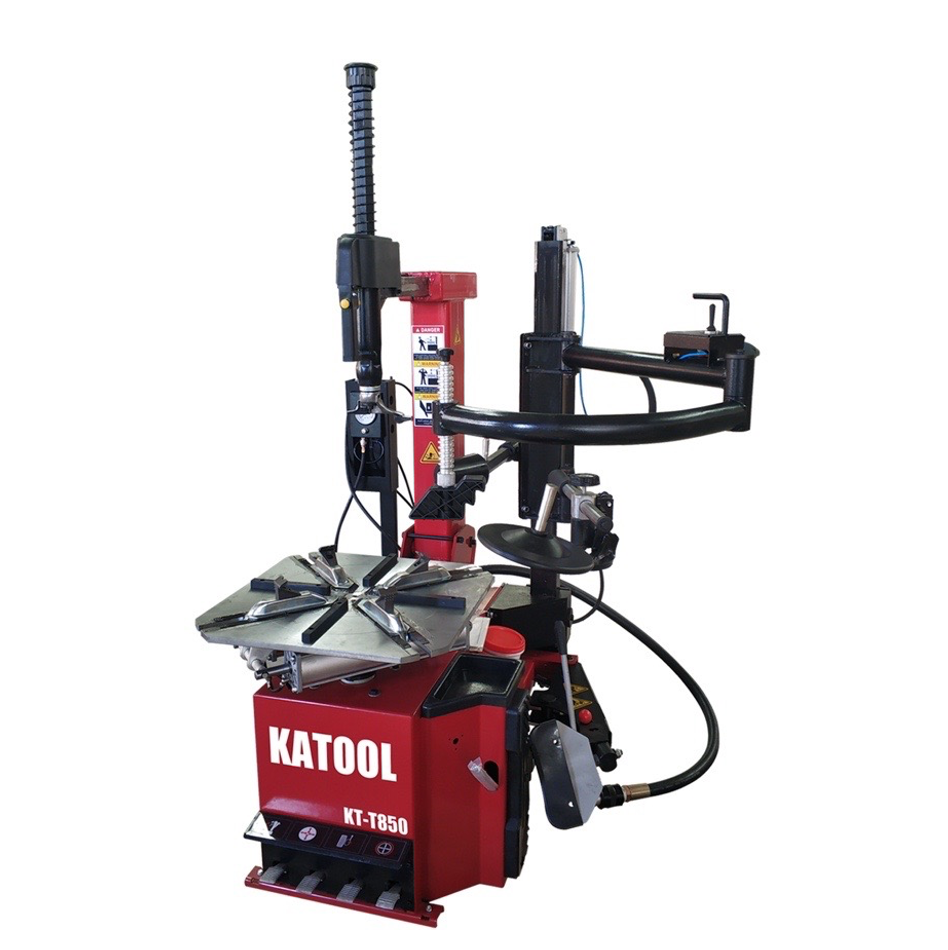

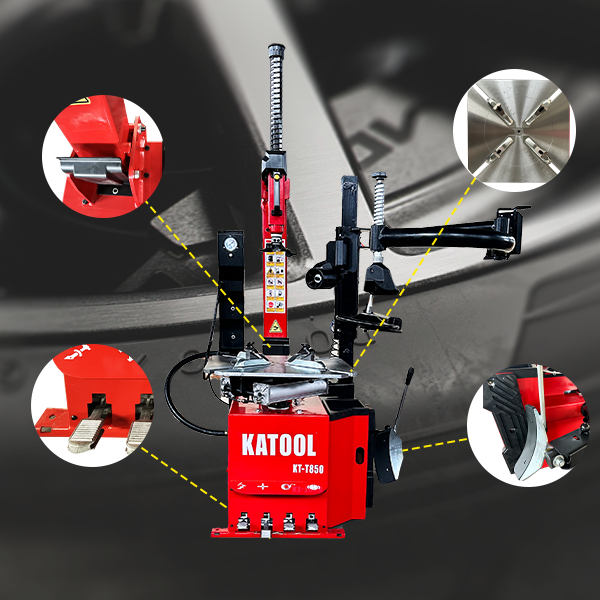

The KATOOL KT-T850 is a high-performance tilt-back tire changer designed for speed, safety, and durability. With a robust tilt-back tower, this machine allows for faster tire servicing and more clearance when working with wider wheels and tires. It’s equipped with hardened alloy steel jaws, a stainless steel mount/demount head, and a bead blast inflation system — all engineered to protect rims and maximize productivity.
Dual side assist arms make mounting low-profile, run-flat, and heavy tires easier, while the 200mm aluminum bead breaker cylinder adds the muscle to separate the toughest tire beads. Built with a closed-body design for long-lasting internal component protection and fitted with a pure copper motor for powerful, consistent operation, the KT-T850 is a go-to machine for serious automotive shops.

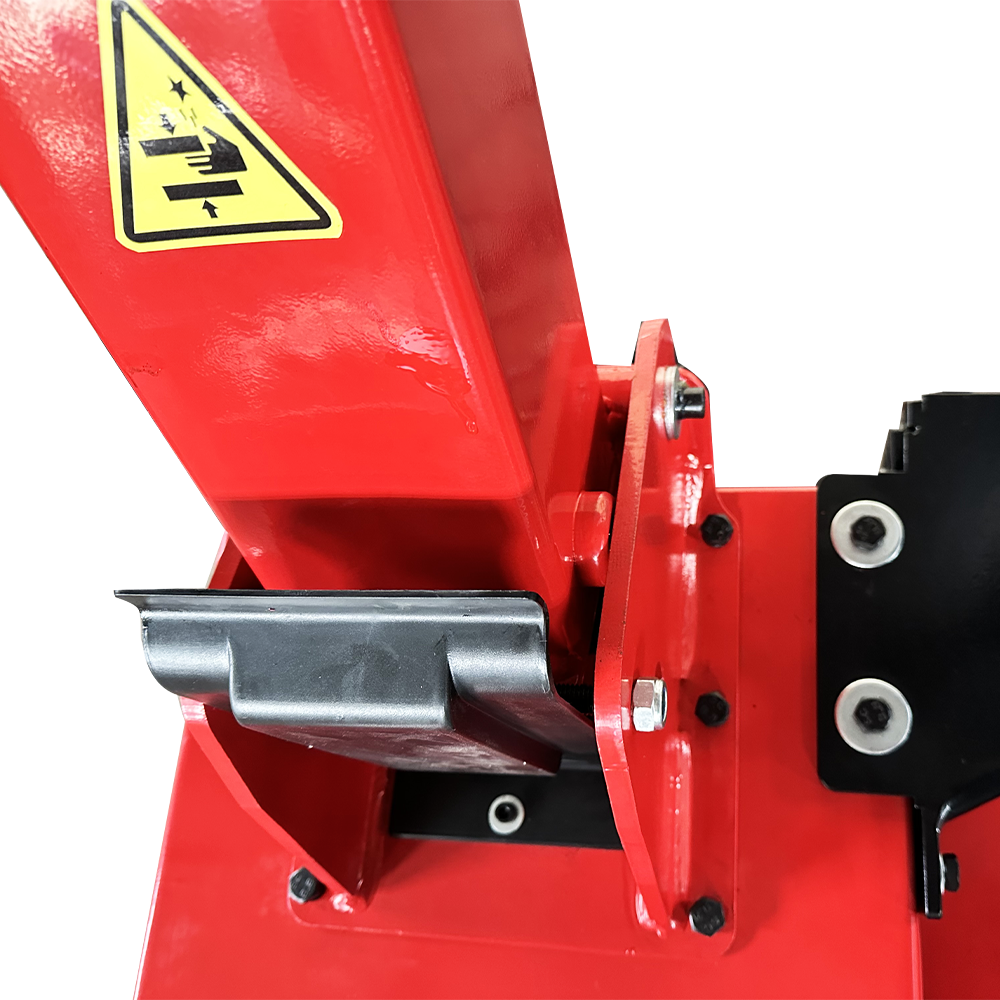

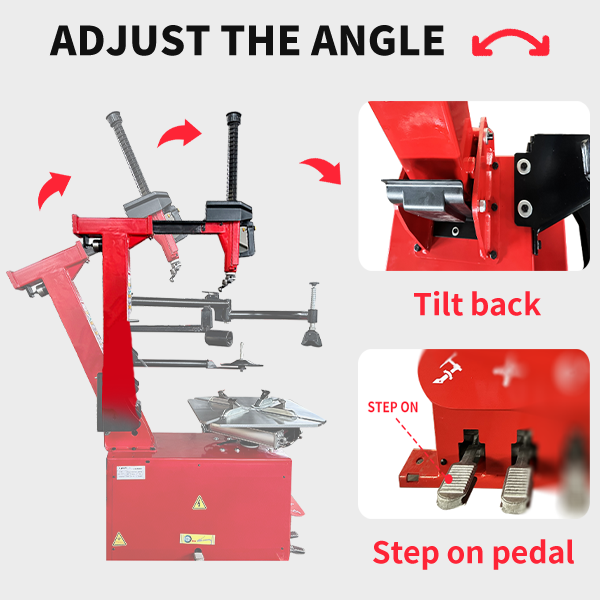

Tilt-back arm design for quicker setup and more clearance
Double assist arms to handle stiff sidewalls and larger tires
Bead blast inflation for fast and reliable seating
Rim protection via plastic covers on jaws and mount head

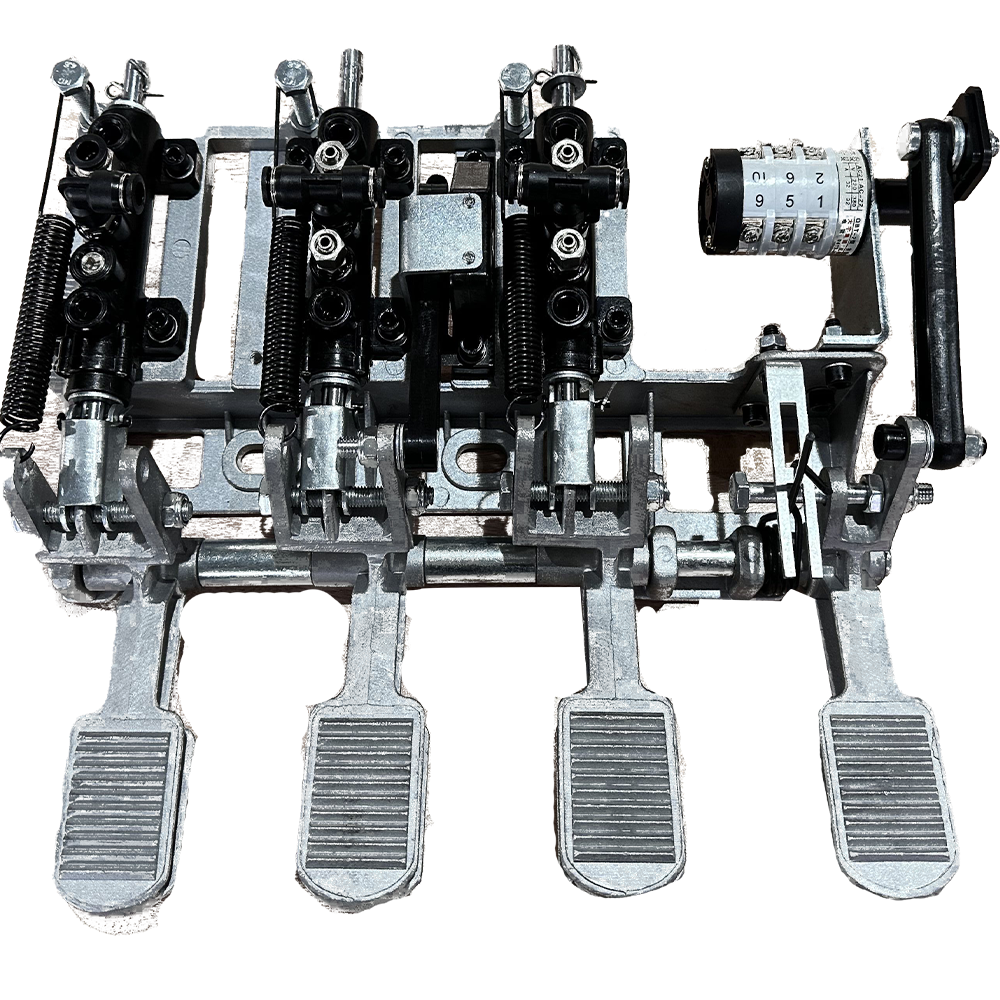

Pedal-operated controls for efficient workflow
Closed cabinet for internal part protection
Top-quality motor with copper windings for longevity
Designed for the North American market with 110V power
| Spec | Value |
|---|---|
| Max Wheel Diameter | 47" (1200 mm) |
| Max Wheel Width | 15" (380 mm) |
| Outside Clamp Range | 14" – 26" |
| Inside Clamp Range | 16" – 28" |
| Power Supply | 110V / 1PH / 60HZ |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Air Pressure | 0.8–1.0 MPa (116–145 PSI) |
| Bead Breaker Cylinder | 200 mm (aluminum) |
| Net Weight | 750 lbs (340 kg) |
Ensure a level concrete floor with sufficient space
Use regulated air pressure and secure the unit with proper anchoring
Connect to a grounded 110V power source
Inspect and lubricate moving parts regularly for best performance
