The Katool KT-T900 is a professional-grade, all-hydraulic center post tire changer built to handle the toughest tire service jobs with precision and ease. Engineered for high-volume shops and demanding applications, the KT-T900 simplifies mounting and demounting even the most challenging run-flat and low-profile tires.
Its leverless design prevents rim damage, while the stainless steel mounting head and plastic rim guards offer added protection. The built-in top assist arm provides extra leverage for stubborn tires, and the integrated wheel lift helps reduce technician fatigue. Powered by a robust copper-wound motor and a reliable hydraulic drive, this machine ensures smooth operation and long-lasting performance.
Whether you're servicing luxury sedans, performance vehicles, or heavy-duty wheels up to 30", the KT-T900 is your go-to solution for high-efficiency, low-risk tire service.
All-Hydraulic Operation: Fully hydraulic power system tackles all types of car wheels with ease.
Leverless Mount/Demount Head: Minimizes risk of rim damage during service.
Top Assist Arm: Built-in arm makes handling run-flat and low-profile tires fast and easy.
Wheel Lift Assistant: Reduces operator strain for larger or heavier tires.
Durable Stainless Mount Head: With rim-protective plastic cover.
High-Efficiency Motor: Pure copper winding provides stronger power, rapid heat dissipation, and extended life.
Compact & Closed Body Design: Protects internal components from dust and debris.
Specification | Details |
---|---|
Max Wheel Diameter | 47" / 1200 mm |
Max Wheel Width | 16" / 406 mm |

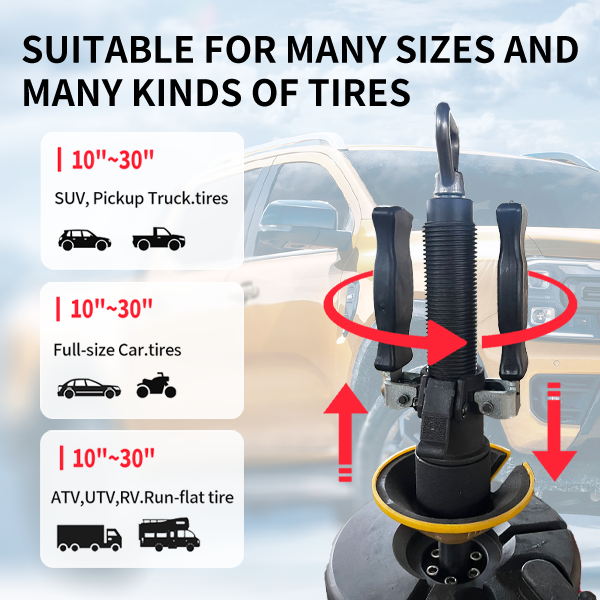

Wheel Clamp Range | 12" – 30" |
Power Supply | 110V / 1PH / 60Hz |
Gearbox Motor Power | 2.0 HP / 1.5 KW |
Hydraulic Motor Power | 1.5 HP / 1.1 KW |
Rotation Speed | 6.8 RPM |
Operating Air Pressure | 0.8–1.0 Mpa (116–145 PSI) |
Net Weight | 414 lbs / 188 kg |
Installation Note: Ensure a flat, level concrete surface with proper air and power supply before installation. Follow all safety and calibration steps for optimal performance.
