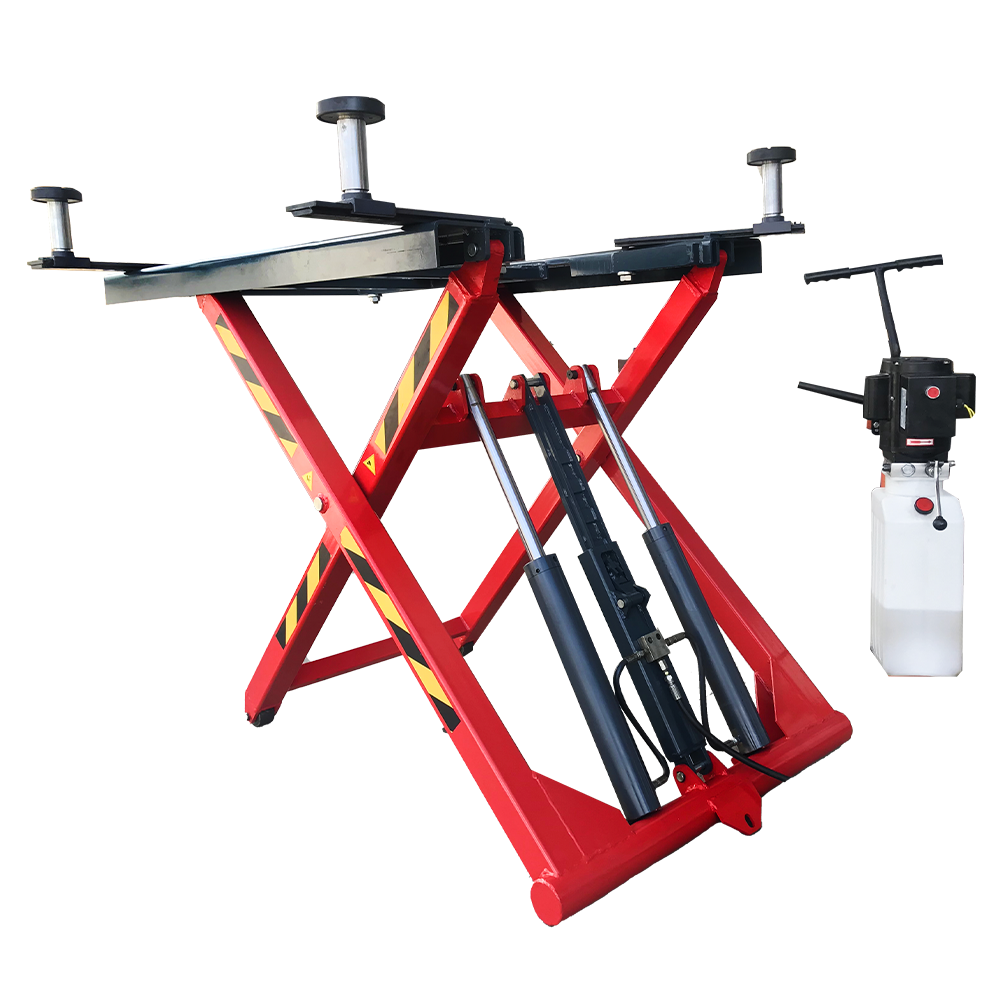

Upgrade your garage or service bay with the Katool KT-X66 Mid-Rise Scissor Lift—an efficient and space-saving solution for lifting sedans, SUVs, and light-duty trucks. Designed for flexibility and mobility, this 6,600 lbs (3,000 kg) capacity lift is perfect for quick service jobs, tire rotations, brake work, and vehicle detailing. Its low-profile platforms and mobile power unit make it easy to position anywhere you need, while its heavy-duty construction ensures long-lasting performance in both professional shops and home garages.

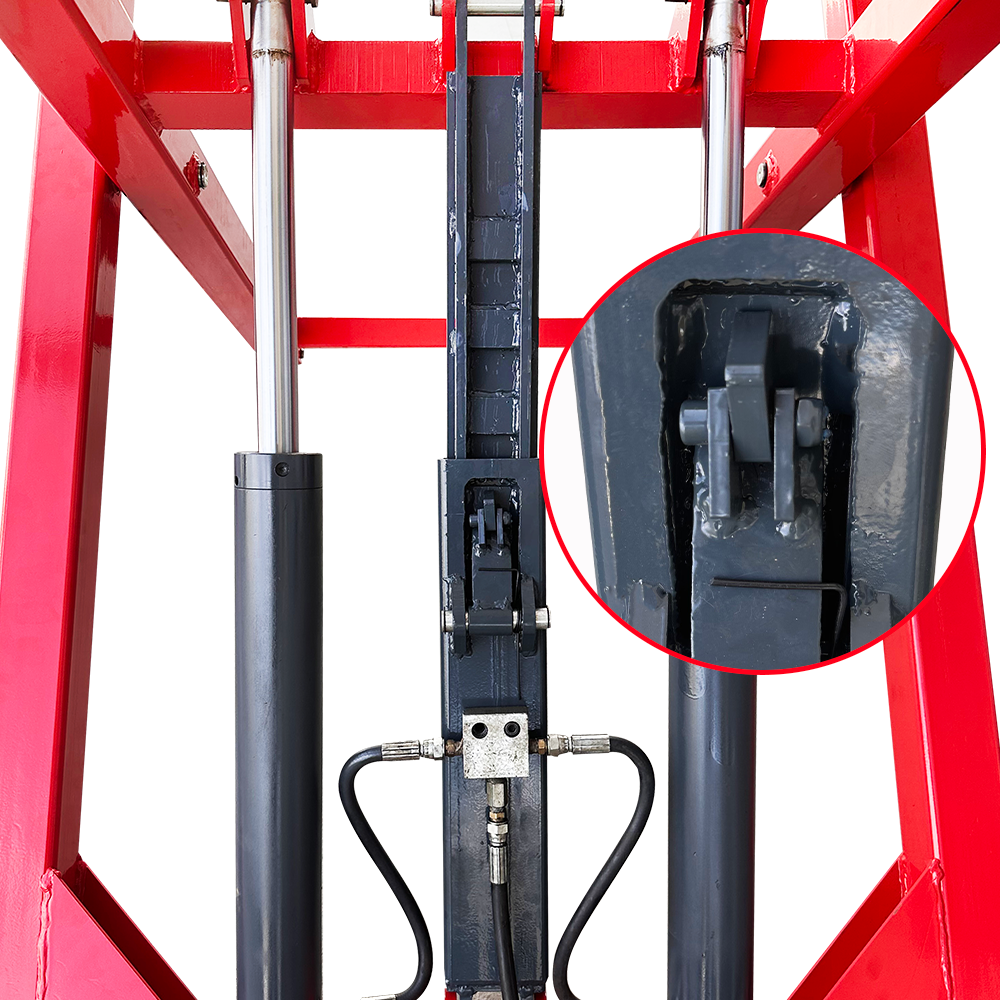

Built to rigorous CE certification standards, the KT-X66 offers a smooth lifting operation with dual hydraulic cylinders and mechanical safety locks. The lift includes stackable rubber support adapters (+3" and +6.25") to handle a wider range of vehicle heights. Whether you're a full-time technician or a DIY enthusiast, this portable scissor lift delivers power, safety, and convenience in one compact unit.
| Key Features |
|---|

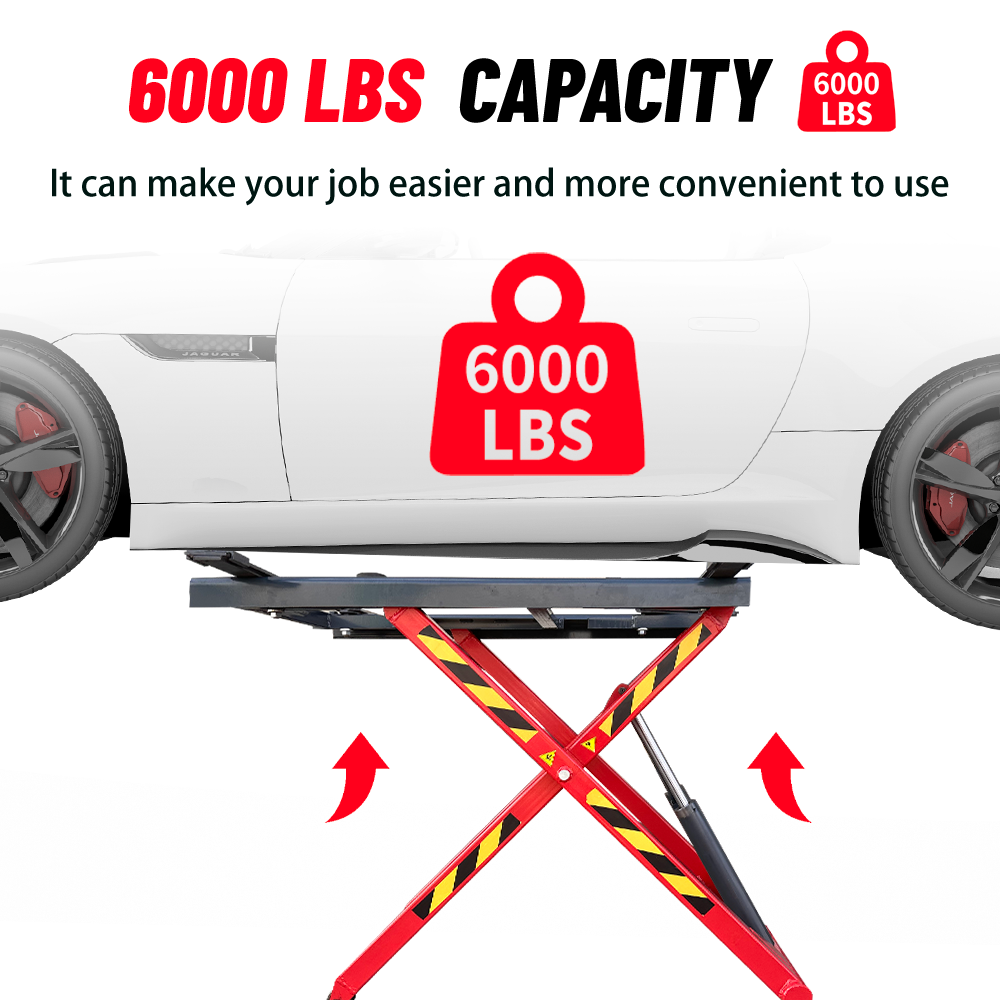

| 6,600 lbs (3,000 kg) Lifting Capacity: Ideal for sedans, SUVs, and light trucks |

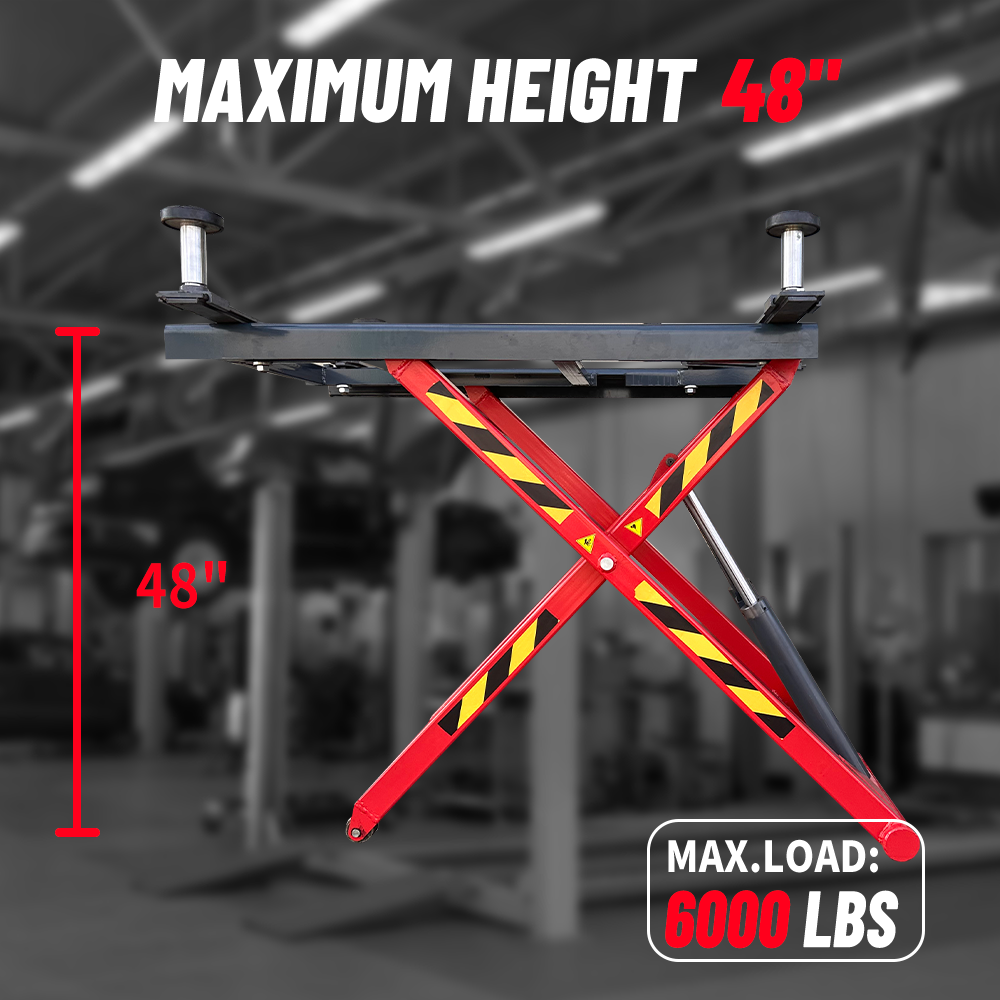

| Mid-Rise Platform: Lifts vehicles up to 47.24 inches—perfect for most underbody work |

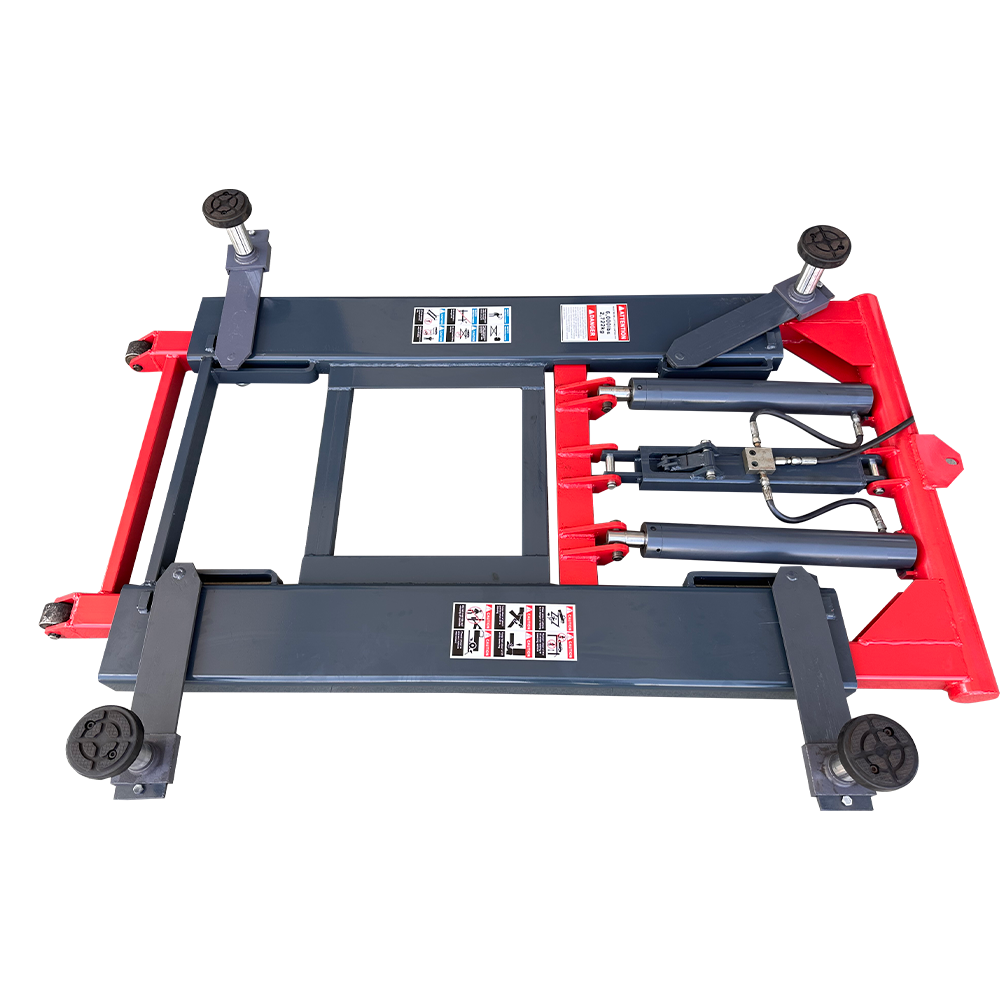

| Low Profile Design: Minimum height of just 4.72 inches fits under most vehicles |
| Mobile & Compact: Includes caster wheels and a portable power unit for easy mobility |

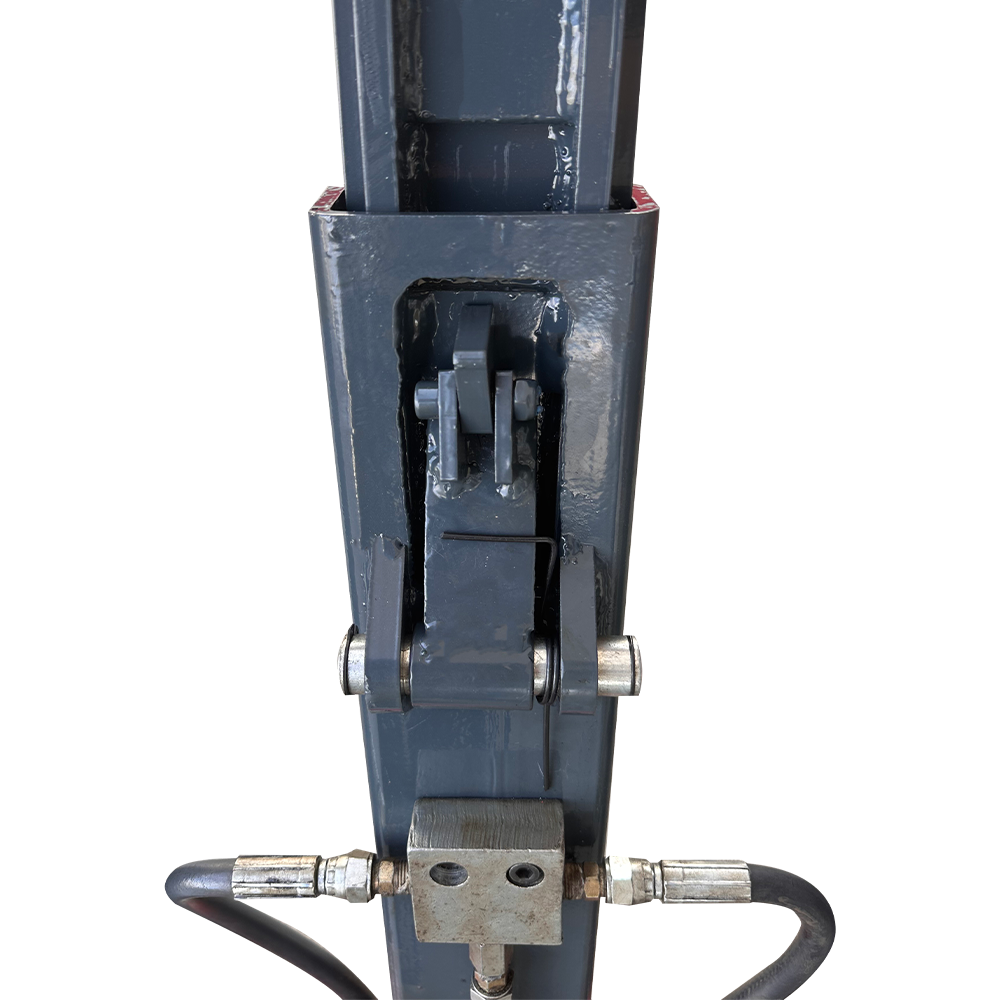

| Manual Safety Lock Release: Reliable and easy-to-use safety mechanism |
| Durable Construction: 3-year structural warranty for peace of mind |
| Self-Lubricated Bushings & Bearings: Reduced maintenance and increased longevity |
| Support Adapter Kit Included: +3" (75mm) and +6.25" (160mm) stackable adapters |
| CE Approved & Certified: 115% dynamic and 150% static load-tested |
| Flexible Power Options: Available in 110V or 220V configurations |
|
 |
| Specification | Value |
|---|---|
| Lifting Capacity | 6,600 lbs (3,000 kg) |
| Max Lifting Height | 47.24" (1,200 mm) |
| Minimum Height | 4.72" (120 mm) |
| Overall Length | 91.54" (2,325 mm) |
| Platform Width | 39.57" (1,005 mm) |
| Overall Width | 41.89" (1,064 mm) |
| Motor | 115V AC / 60Hz (Customizable) |
| Lifting Time | Approx. 45 seconds |
| Net Weight | 1,212 lbs (550 kg) |
1-Year Parts Warranty on all components
3-Year Structural Warranty on the lift frame
Optional 2-Year Extended Warranty available for added protection
