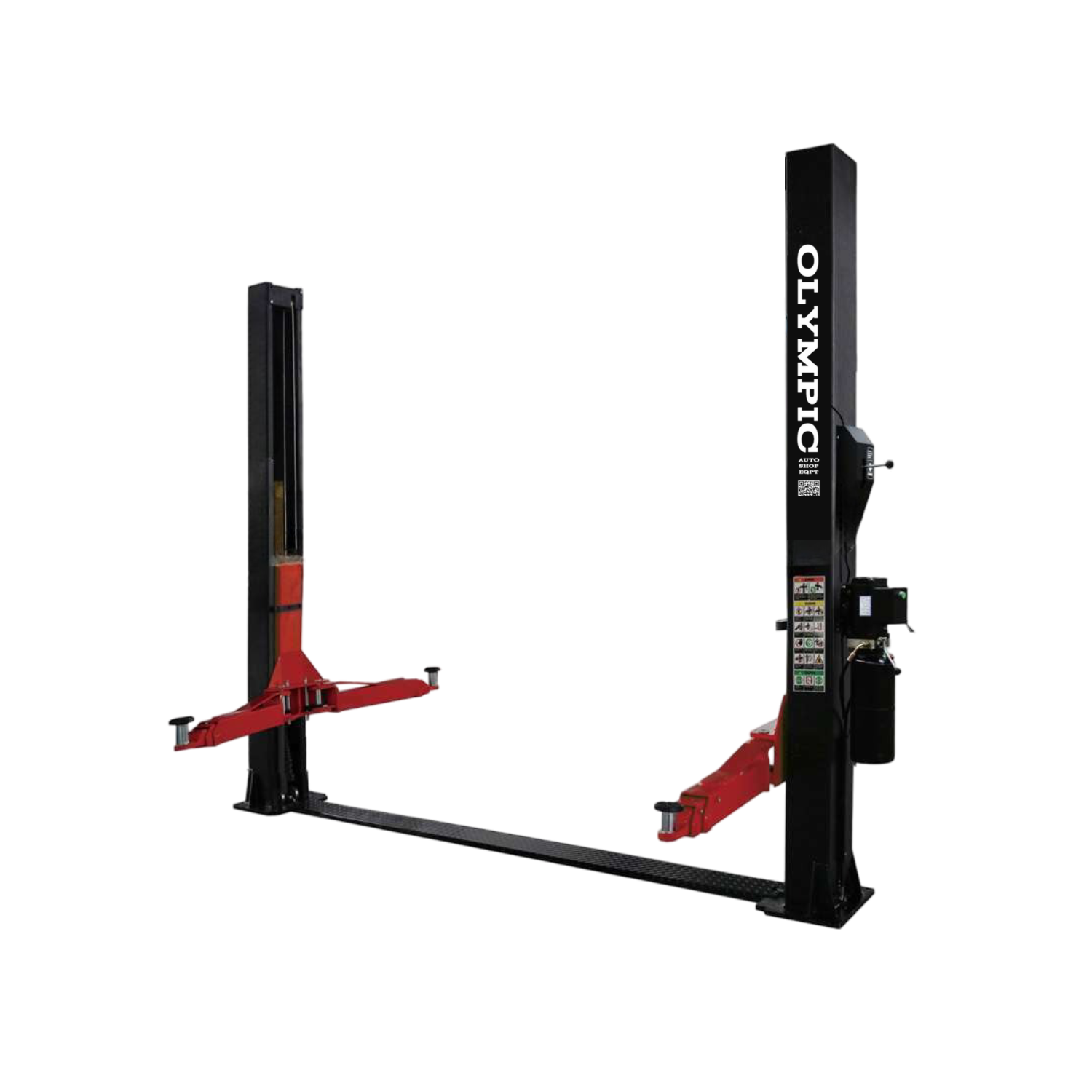

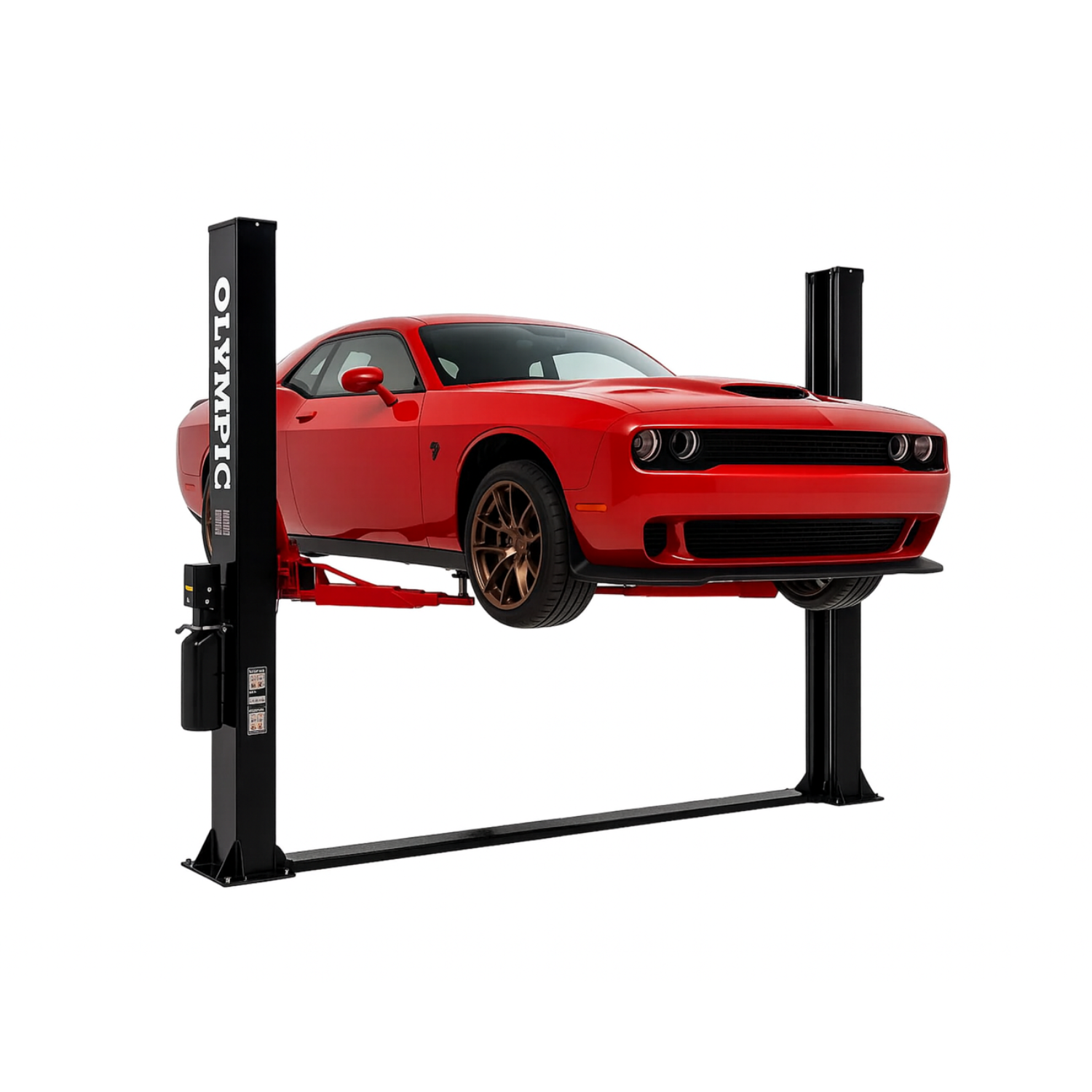

Olympic 2PBP-8 / 8,000-lb Base Plate 2-Post Lift / 2-stage arms / Symmetric 2-stage foot pads / Dual point lock release

The Olympic 2PBP-8 is a heavy-duty 8,000 lb. capacity base plate two-post lift engineered for shops with lower ceiling requirements while maintaining full-size lifting capability. Built from high-quality Q235 structural steel with large-diameter hydraulic cylinders, this lift delivers reliable performance, smooth operation, and long-term durability. Designed with symmetric long-reach arms, dual point lock release, truck adapters, and an automatic height stop system, the 2PBP-8 combines performance, safety, and value—making it a top choice for automotive repair facilities, home garages, and commercial service centers.

Product Features
  • 10-Year Olympic Warranty
  • High-quality Q235 structural steel construction
  • Deluxe pin-on carriage for enhanced stability
  • Dual point safety lock release system
  • Large-diameter dual hydraulic cylinders
  • Symmetric long-reach extension arms
  • Two-stage adjustable foot adapters
  • Durable powder-coated protective finish
  • Automatic stop at maximum lift height
  • Synchronized hydraulic lift system for balanced lifting
  • Door anti-crush rubber protection guards
  • Swing arm supports with high-quality pads
  • Includes mounting hardware and (4) 3.5″ truck adapters
  • 110V 2.2KW power unit included (220V option available)
  • Certified and tested at 150% of rated lifting capacity
Product Specifications
Style 2-Post Base Plate Lift
Lifting Capacity 8,000 lbs
Overall Height 110.2″
Overall Width 129.92″
Voltage 110V / 220V
Minimum Lift Height 3.94″
Maximum Lift Height 71″
Width Between Posts 110.2″
Front Arm Reach 31.5″ – 45.75″
Rear Arm Reach 31.5″ – 46″
Speed of Rise 50 seconds
Speed of Lowering 50 seconds
Power Unit HPU2203, 3HP, 2.2KW, 1PH
Fits Ceiling Height Minimum 9′ 2″
