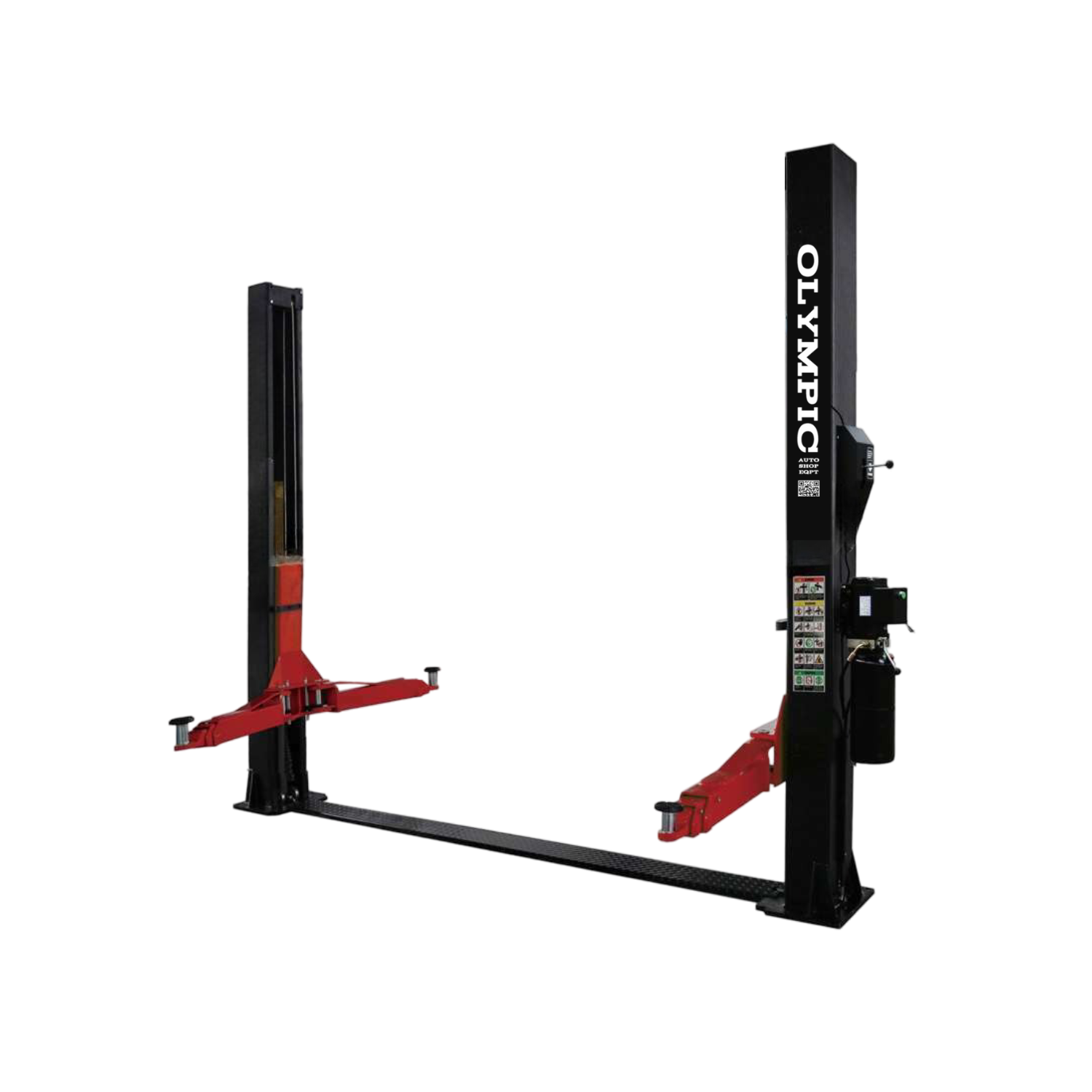

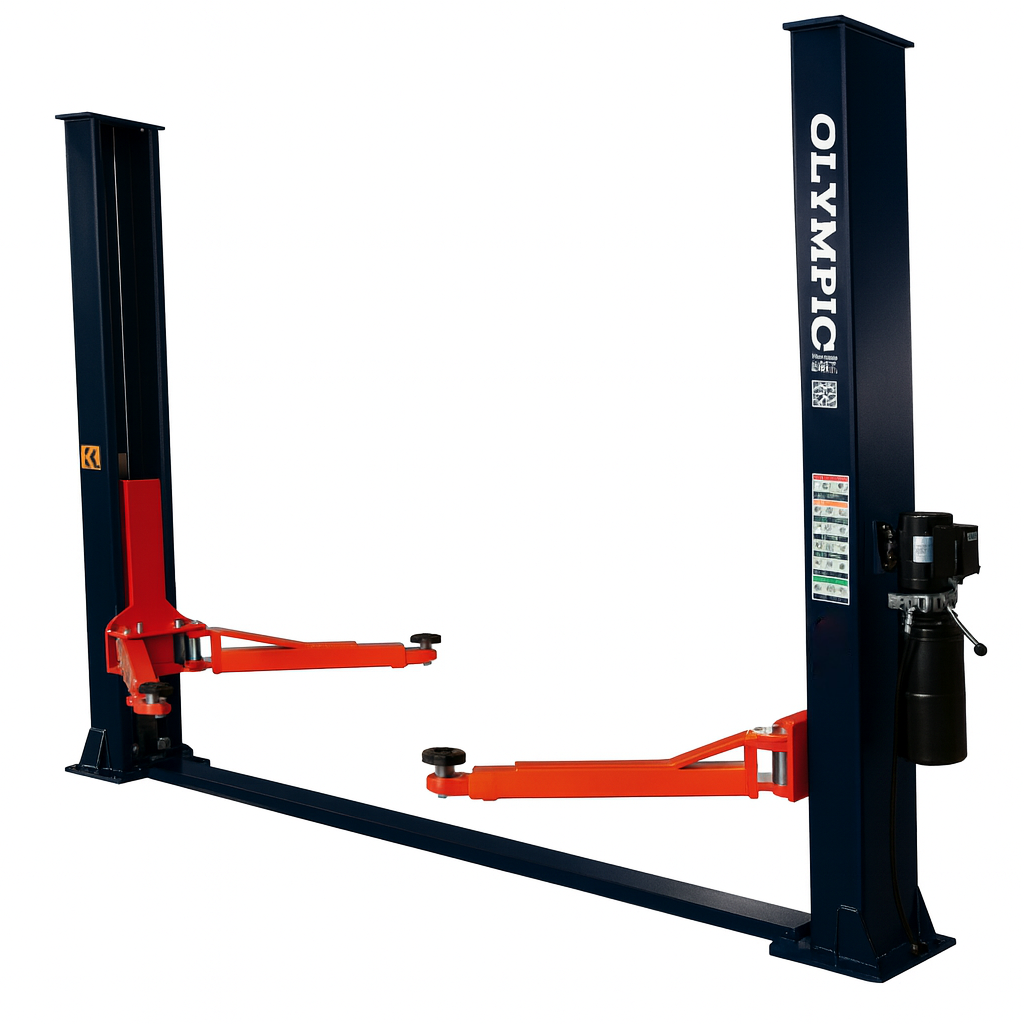

The Olympic 2PBPXW-10 is a commercial-grade, extra-wide 10,000 lb base plate two-post lift engineered for shops that service dual-wheel trucks, large service vehicles, and heavy-duty fleets. Built from high-quality Q235 structural steel and Olympic’s Gold Series design, the 2PBPXW-10 delivers rugged durability, smooth synchronized lifting, and exceptional vehicle access with a 104″ drive-through. With three-stage long-reach arms, screw-on height adapters, a single-point lock release, and a heavy-duty hydraulic system, this lift combines convenience, safety, and professional performance for demanding service bays.
| Product Features |
|---|
| 10,000 lb lifting capacity (Gold Series) |
| Extra-wide 104″ drive-through for dual-wheel trucks & service vehicles |
| High-quality Q235 structural steel construction |
| Deluxe pin-on carriage for reliable stability |
| Three-stage symmetrical long-reach extension arms |
| Three-stage screw-on adjustable height foot adapters |
| Convenient single-point lock release |
| Large-diameter hydraulic cylinders in each column |
| Synchronized hydraulic system for even lifting |
| Automatic stop at maximum lift height |
| Door anti-crush rubber protection |
| Swing arm supports with high-quality pads |
| Durable powder-coated finish |
| Includes (4) 3.5″ truck adapters and mounting hardware |
| Certified & tested at 150% of rated capacity |
| 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option) |
| Product Specifications | |
|---|---|
| Style | 2-Post Base Plate Lift |
| Capacity | 10,000 lbs |
| Overall Height | 110″ |
| Overall Width | 137″ |
| Drive-Through Width | 104″ |
| Min. Lift Height | 3.9″ |
| Max. Lift Height | 70.87″ |
| Width Between Posts | 116″ |
| Front Arm Reach | 28″ – 41.9″ |
| Rear Arm Reach | 30″ – 47.2″ |
| Speed of Rise / Lowering | 55 seconds |
| Recommended Power Unit | 220V, 3HP, 2.2KW, 1PH |
| Fits Under Ceiling Height | 9′3″ |
