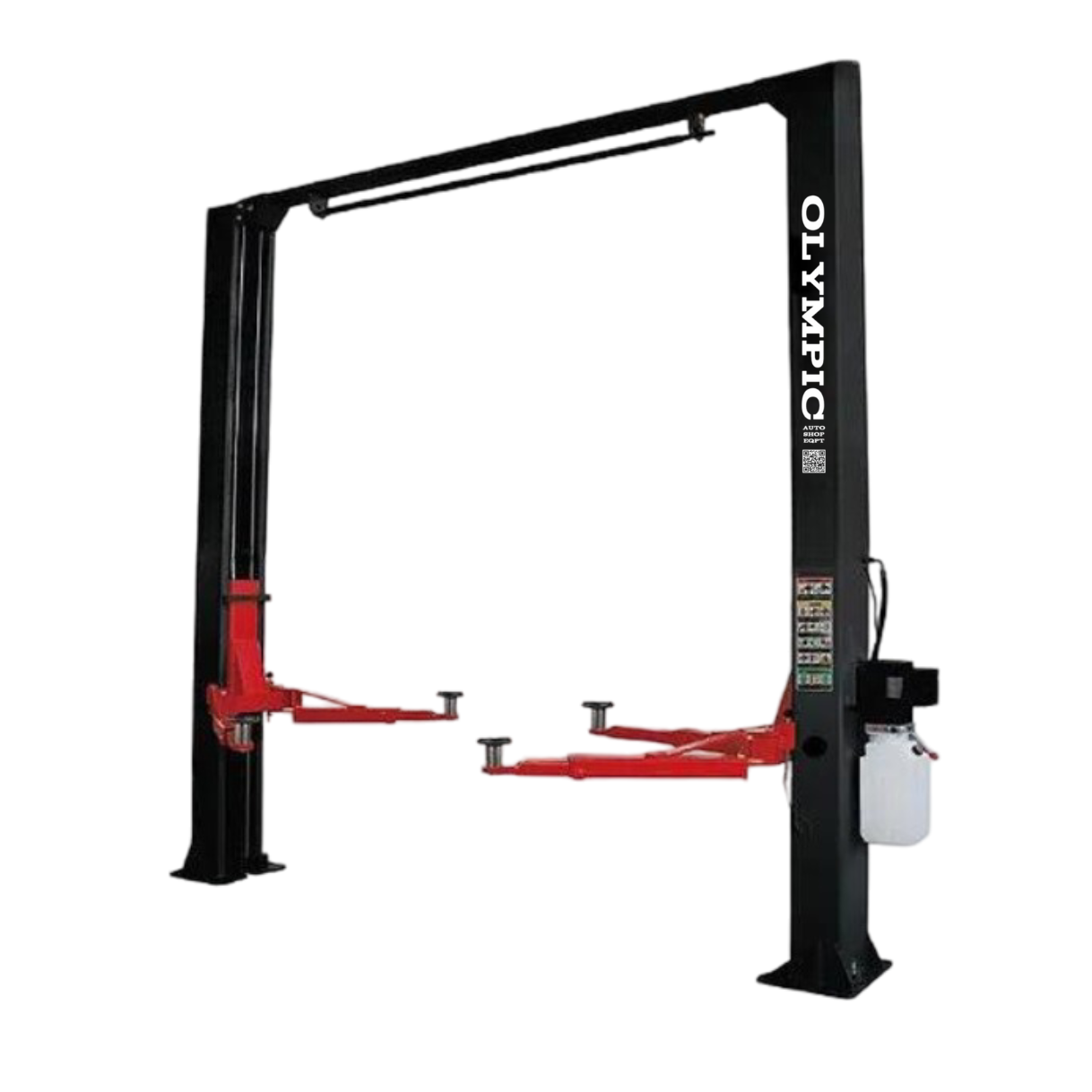

Olympic 2PCF-9 9,000‐lb. Symmetric Clear floor Two Post Lift

Olympic 2PCF-9 9,000‐lb. Symmetric Clear floor Two Post Lift

Regular price $3,199.00
Regular price $3,295.00 Sale price $3,199.00
Sold out

AvailabilityLow stock: 10 left

SKU: 2PCF-9
Vendor: Olympic
Category: Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

View full product details

The Olympic 2PCF-9 is a commercial-grade 9,000 lb. symmetric clear floor two-post lift designed for professional shops and advanced home garages seeking maximum lifting height and unobstructed floor access. Engineered with high-strength Q235 structural steel, synchronized hydraulics, and an independent load leveling system, the 2PCF-9 delivers precision, stability, and long-term reliability. Its deluxe pin-on carriage, long-reach symmetric arms, and two-stage foot height adapters make servicing sedans, SUVs, and light-duty trucks both simple and safe. With a high-clearance design and a tall 141.73″ structure, the 2PCF-9 fits perfectly in shops with higher ceilings where full overhead lift performance is essential.

Product Features
  • 9,000 lb. lifting capacity
  • Olympic 10-year structural warranty
  • High-quality Q235 structural steel construction
  • Technically advanced lifting configuration
  • Deluxe pin-on carriage design
  • Symmetric long-reach arms for enhanced positioning
  • Two-stage adjustable foot height adapters
  • Dual-point manual safety lock release
  • Automatic stop at maximum lift height
  • Large-diameter heavy-duty hydraulic cylinders
  • Synchronized hydraulic system
  • Independent load leveling system for improved stability
  • Durable powder-coated exterior finish
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality lift pads
  • Includes (4) 3.5″ truck adapters
  • Mounting hardware included
  • 110V power unit included (220V option available)
  • Certified and tested at 150% of rated capacity
Product Specifications
Style 2-Post Clear Floor Lift
Capacity 9,000 lbs
Overall Height 141.73″
Overall Width 128.74″
Voltage 220V / 110V
Min. Lift Height 4.3″
Max. Lift Height 74.8″
Width Between Posts 109.5″
Front Arm Reach 30″ – 41.3″
Rear Arm Reach 30″ – 47.2″
Speed of Rise 60 seconds
Speed of Lowering 55 seconds
Motor 3HP, 2.2KW, 1PH
