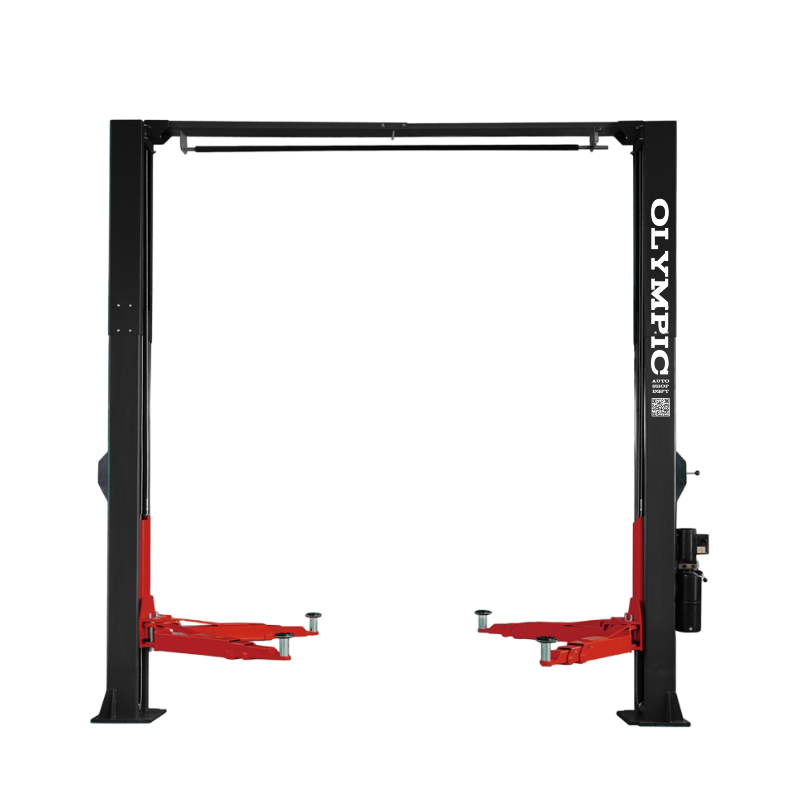

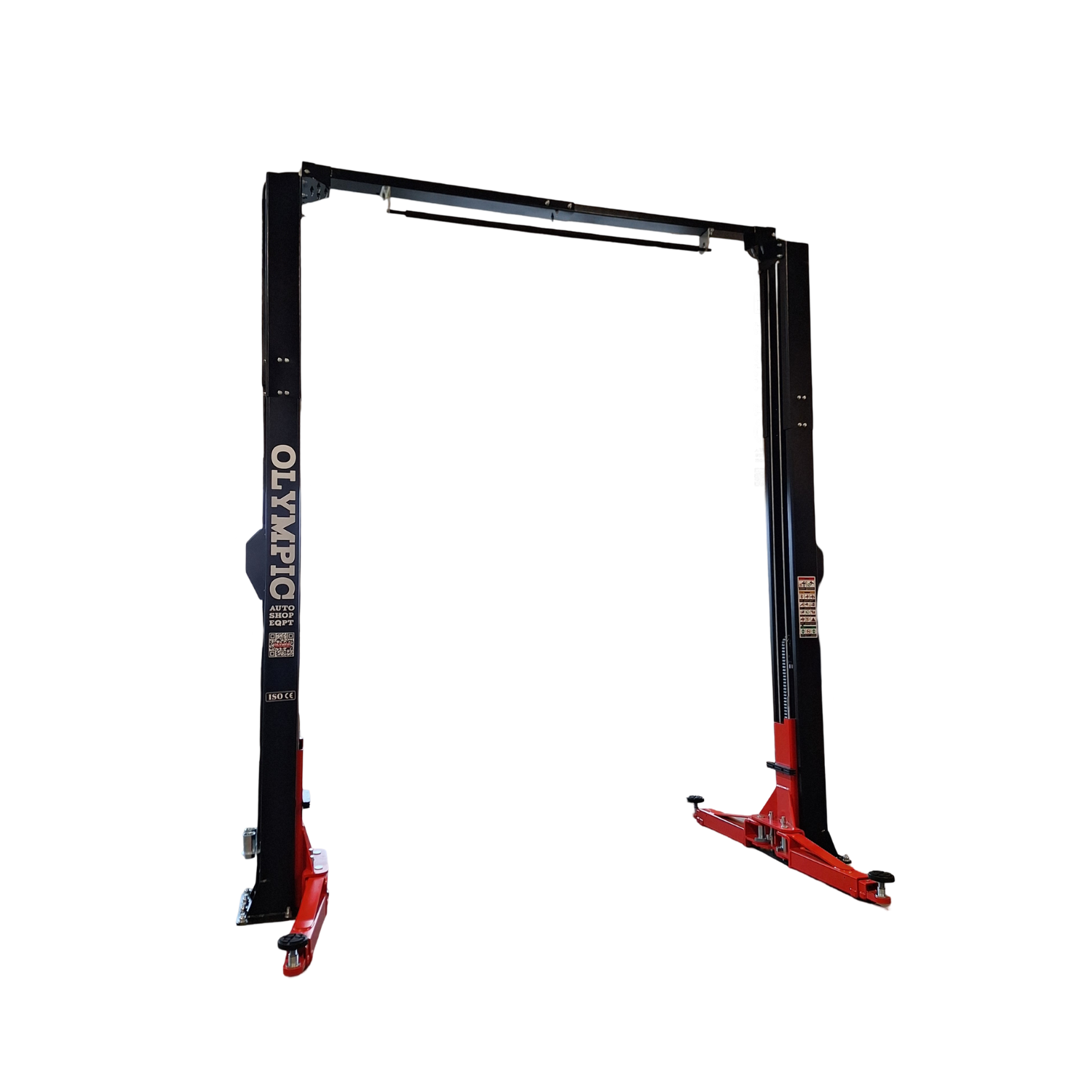

• Olympic 2PCFHD-12 12,000‐lb. HDXL Symmetric Clear Floor Two Post Lift
1 2

Olympic 2PCFHD-12 12,000‐lb. HDXL Symmetric Clear Floor Two Post Lift

Olympic 2PCFHD-12 12,000‐lb. HDXL Symmetric Clear Floor Two Post Lift

$5,479.00
$5,479.00
Sold out
LTL Freight cost for continental USA is Free Shipping!

Availability: Low stock: 10 left
SKU: 2PCFHD-12
Vendor: Olympic
Category: Two Post Lift
Tags:

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

Olympic 2PCFHD-12 / 12,000‐lb. HDXL / Symmetric Post / Clear floor / Single Point Lock Release / 3-Stage Arms

The Olympic 2PCFHD-12 12,000 lb. HDXL Symmetric Clear Floor Two Post Lift is engineered for heavy-duty lifting in high-volume shops and service centers. With extra width and height, this lift accommodates large vehicles, dual-wheel trucks, and oversized SUVs with ease. Built from high-quality Q235 structural steel and tested at 150% of rated capacity, it delivers rugged durability and reliable performance for professional mechanics.

Product Features
  • Olympic 10-Year Warranty
  • High-quality Q235 structural steel construction
  • Technically advanced HDXL configuration
  • Deluxe pin-on carriages with single-point lock release
  • Large-diameter hydraulic cylinder in each column
  • Three-stage symmetrical long reach extension arms
  • Three-stage screw-on adjustable height foot adapters
  • Durable powder-coated finish
  • Automatic stop at maximum lift height
  • Synchronized hydraulic system for smooth operation
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality pads
  • Mounting hardware included
  • Includes (4) 3.5″ truck adapters
  • 110V 2.2KW 3HP power unit included (220V optional)
  • Certified & tested at 150% of rated capacity
Product Specifications Details
Style 2-Post Clear Floor Symmetric
Capacity 12,000 lbs
Overall Height 174″
Overall Width 156″
Width Between Posts 134″
Front Arm Reach 34.65″ – 70.87″
Rear Arm Reach 34.65″ – 70.86″
Min. Lift Height 4.3″
Max. Lift Height 70.87″
Speed of Rise / Lowering 55 seconds each
Voltage 220V, 1-Phase
Recommended Power Unit HPU2204, 3KW, 4HP, 1PH
Fits Under Ceiling Height 14′6″
