• Olympic 2PCFHD-15 15,000 lb. HDXL Symmetric Post Clear Floor Two Post Lift
1 1

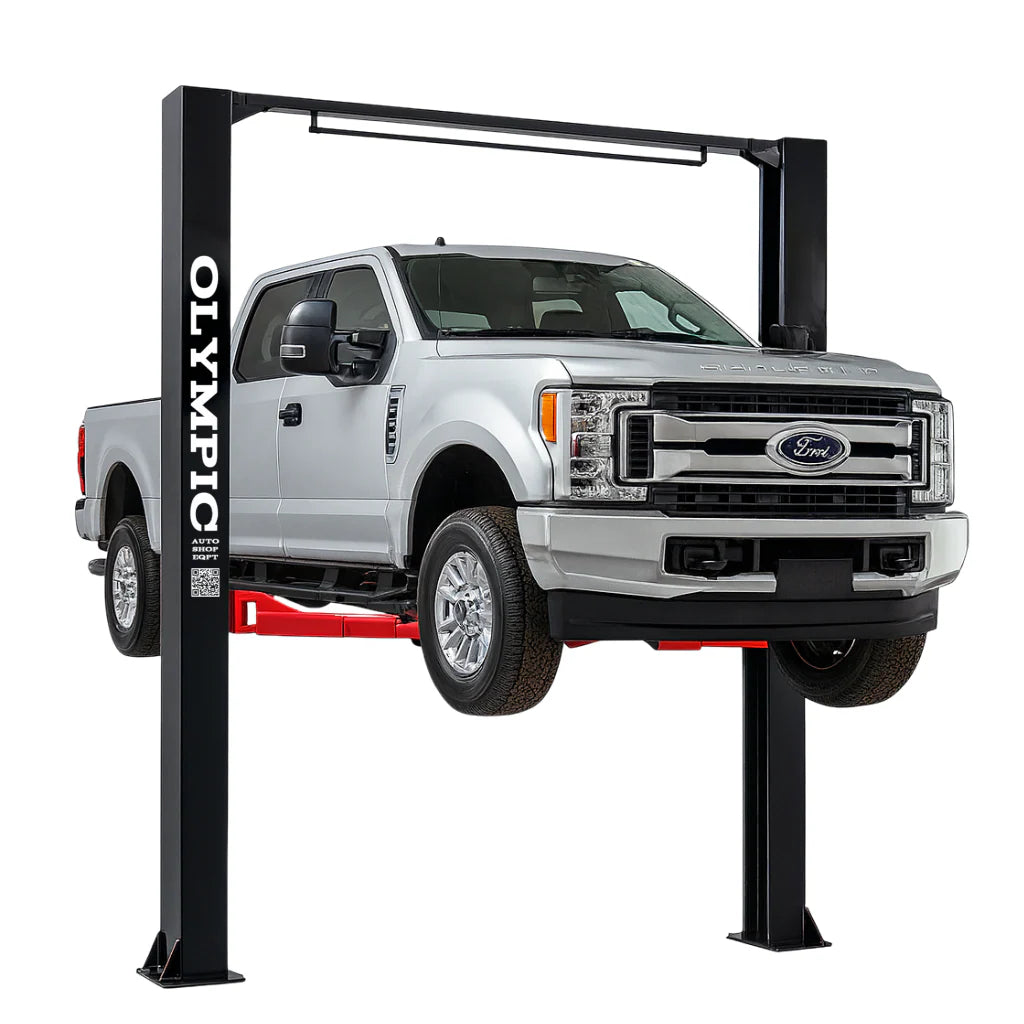

Olympic 2PCFHD-15 15,000 lb. HDXL Symmetric Post Clear Floor Two Post Lift

Olympic 2PCFHD-15 15,000 lb. HDXL Symmetric Post Clear Floor Two Post Lift

$7,495.00
$7,495.00
Sold out
LTL Freight cost for continental USA is Free Shipping!

Availability: Low stock: 10 left
SKU: 2PCFHD-15
Vendor: Olympic
Category: Two Post Lift
Tags: Automotive Lifts Car Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

The Olympic 2PCFHD-15 15,000 lb. HDXL Symmetric Post Clear Floor Two Post Lift is built for the most demanding commercial shops. Known as “The Beast,” this extra-wide, extra-tall lift easily handles the largest service trucks, vans, and dual-wheel vehicles. Constructed with high-quality Q235 structural steel and tested at 150% of rated capacity, it delivers unparalleled strength, reliability, and durability for high-volume service centers.

Product Features
  • Olympic 10-Year Warranty
  • High-quality Q235 structural steel construction
  • Technically advanced HDXL configuration
  • Deluxe pin-on carriages with single-point lock release
  • Large-diameter hydraulic cylinder in each column
  • Three-stage symmetrical long reach extension arms
  • Three-stage screw-on adjustable height foot adapters
  • Durable powder-coated finish
  • Automatic stop at maximum lift height
  • Synchronized hydraulic system for smooth, safe operation
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality pads
  • Mounting hardware included
  • Includes (4) 3.5″ truck adapters
  • 220V 2.2KW 3HP power unit included
  • Certified & tested at 150% of rated capacity
Product Specifications Details
Style 2-Post Clear Floor Symmetric
Capacity 15,000 lbs
Overall Height 174″
Overall Width 156″
Width Between Posts 134″
Drive-Through Width 122.83″
Front Arm Reach 34.7″ – 70.9″
Rear Arm Reach 34.7″ – 70.9″
Min. Lift Height 4.3″
Max. Lift Height 70.87″
Speed of Rise / Lowering 50 seconds each
Motor / Power Unit Recommended 4HP, 3KW, 60Hz, 1PH
Voltage 220V
Fits Under Ceiling Height 14′6″
