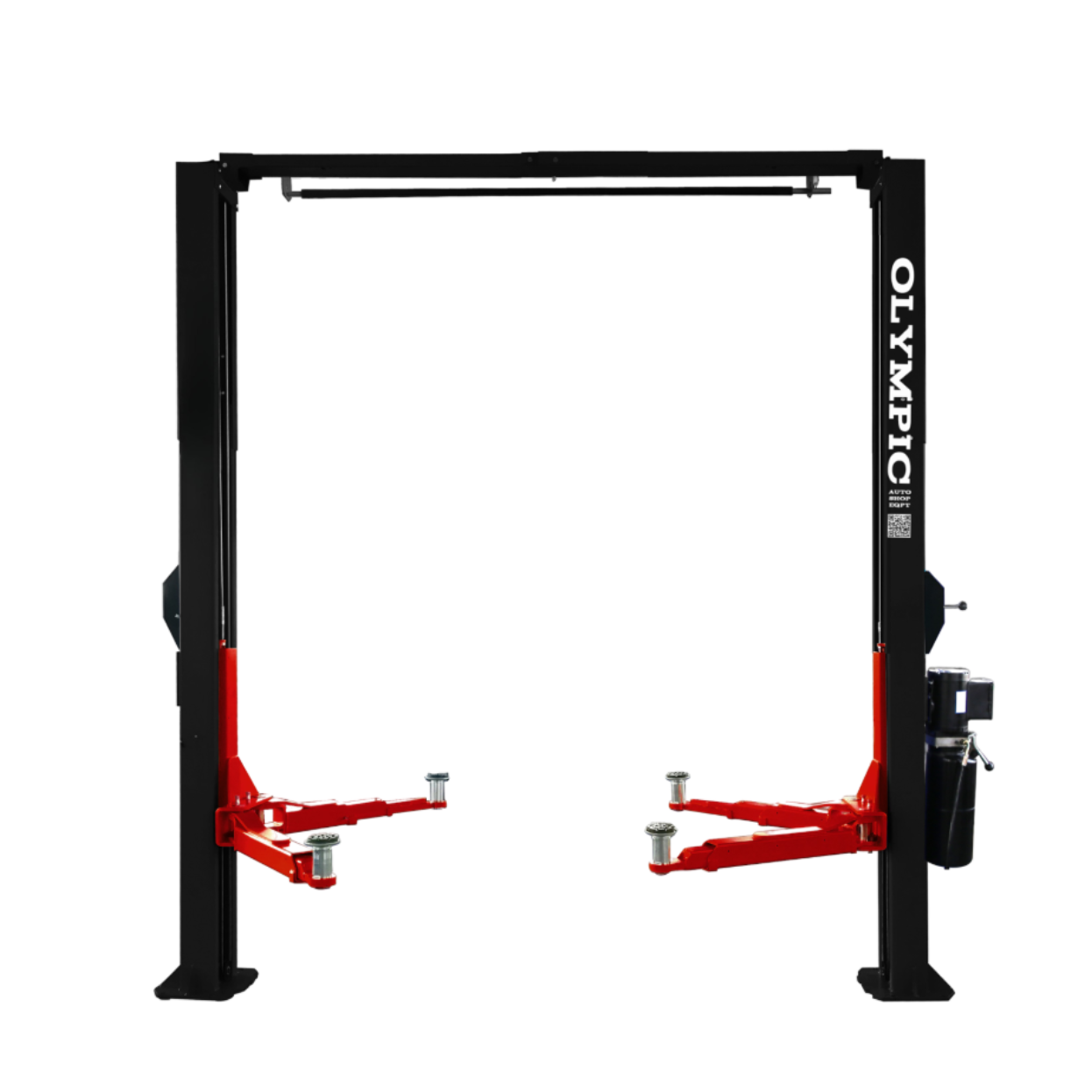

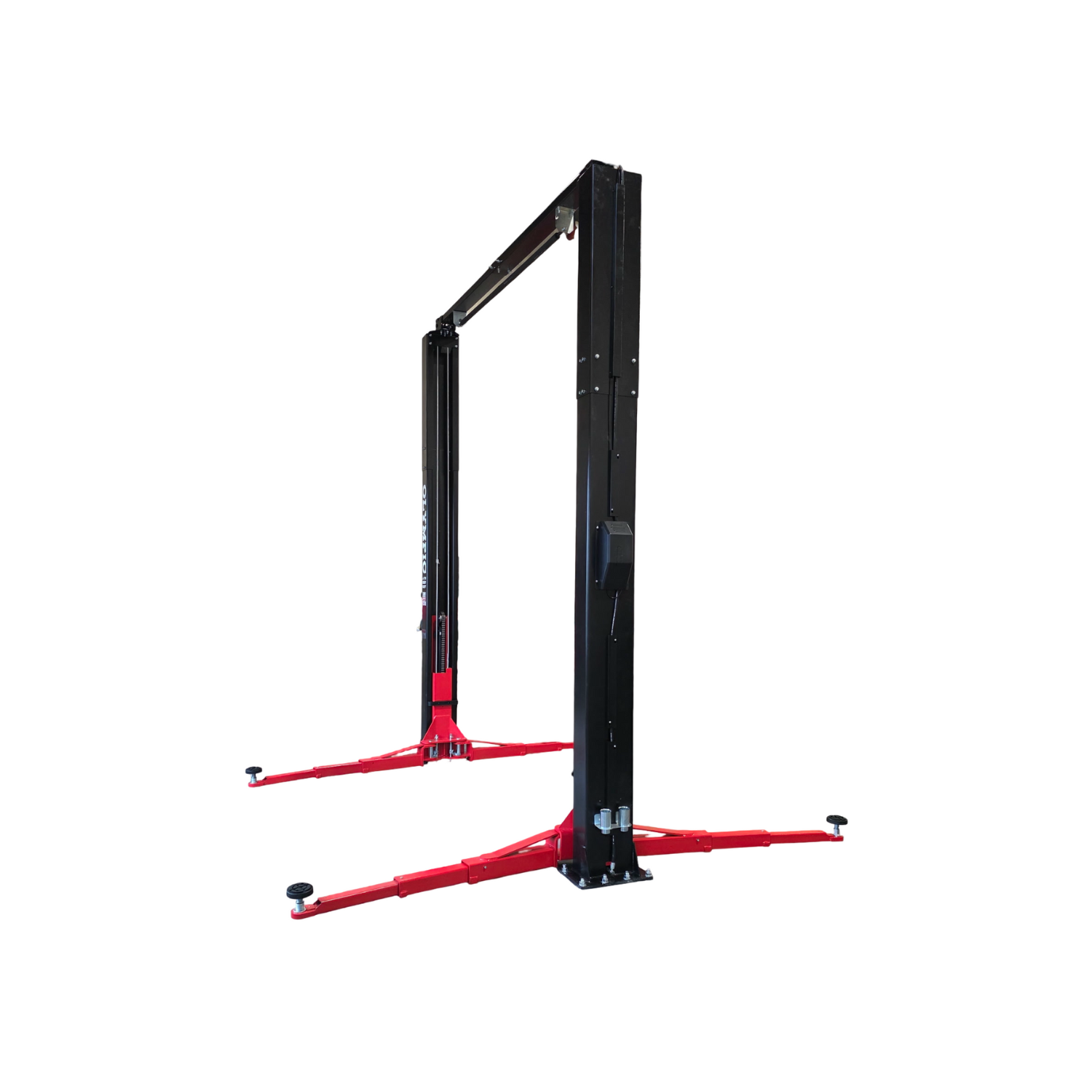

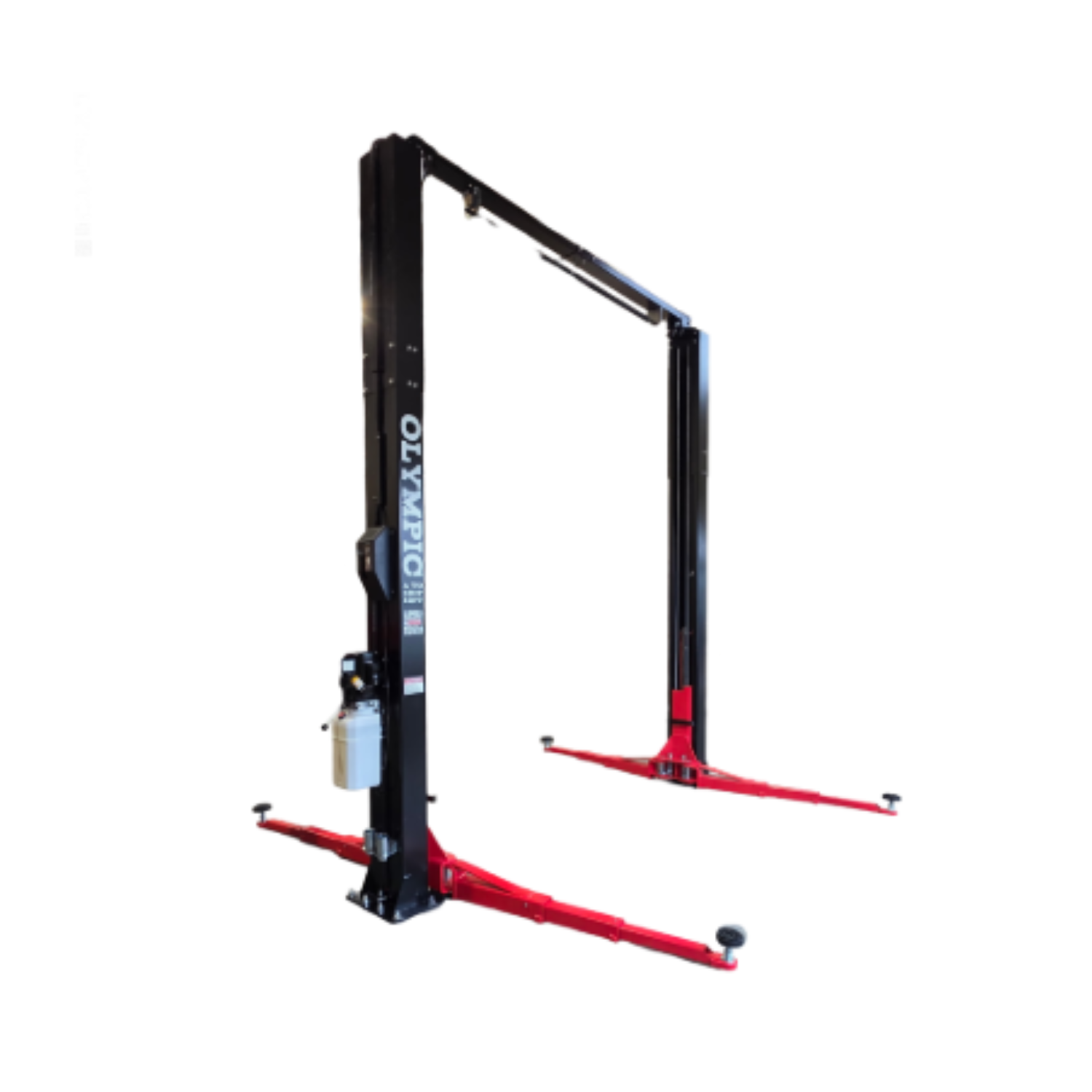

The Olympic 2PCFXL-10 Symmetric Clear Floor Two-Post Lift delivers exceptional strength, lifting stability, and extended height clearance, making it a top choice for professional automotive shops and fleet service centers. Featuring a 10,000 lb capacity and engineered with premium Q235 structural steel, the 2PCFXL-10 provides smooth synchronized lifting, low-maintenance performance, and enough overhead room for taller vehicles. Its three-stage long-reach arms, adjustable height adapters, and single-point lock release ensure safer and more efficient vehicle servicing—from low-profile cars to large trucks.
| Product Features |
|---|
| 10,000 lb lifting capacity for professional shops |
| High-quality Q235 structural steel construction |
| Reengineered clear-floor design for maximum workspace and efficiency |
| Three-stage symmetrical long-reach extension arms for wider vehicle coverage |
| Three-stage screw-on adjustable height foot adapters |
| Deluxe pin-on carriage for improved durability and performance |
| Single-point lock release for simple operation and enhanced safety |
| Automatic stop at maximum lift height |
| Large-diameter hydraulic cylinders in each column for balanced lifting |
| Synchronized hydraulic system prevents uneven load handling |
| Door anti-crush rubber protection included |
| Swing arm supports with durable high-quality pads |
| Includes (4) 3.5″ truck adapters and full mounting hardware kit |
| Built with Olympic’s Gold Series design and tested to 150% capacity |
| 110V 2.2KW 3HP 1Ph power unit included (220V option available) |
| Product Specifications | |
|---|---|
| Style | 2-Post Clear Floor Lift |
| Capacity | 10,000 lbs |
| Overall Height | 153″ |
| Overall Width | 135.31″ |
| Drive-Through Width | 100.39″ |
| Voltage | 110V / 220V |
| Min. Lift Height | 3.94″ |
| Max. Lift Height | 70.87″ |
| Width Between Posts | 114.17″ |
| Front Arm Reach | 29.52″ – 59.05″ |
| Rear Arm Reach | 29.52″ – 59.05″ |
| Speed of Rise / Lowering | 50 seconds |
| Recommended Power Unit | HPU2203, 3HP, 2.2KW, 1PH |
| Fits Under Ceiling Height | 12′9″ |
