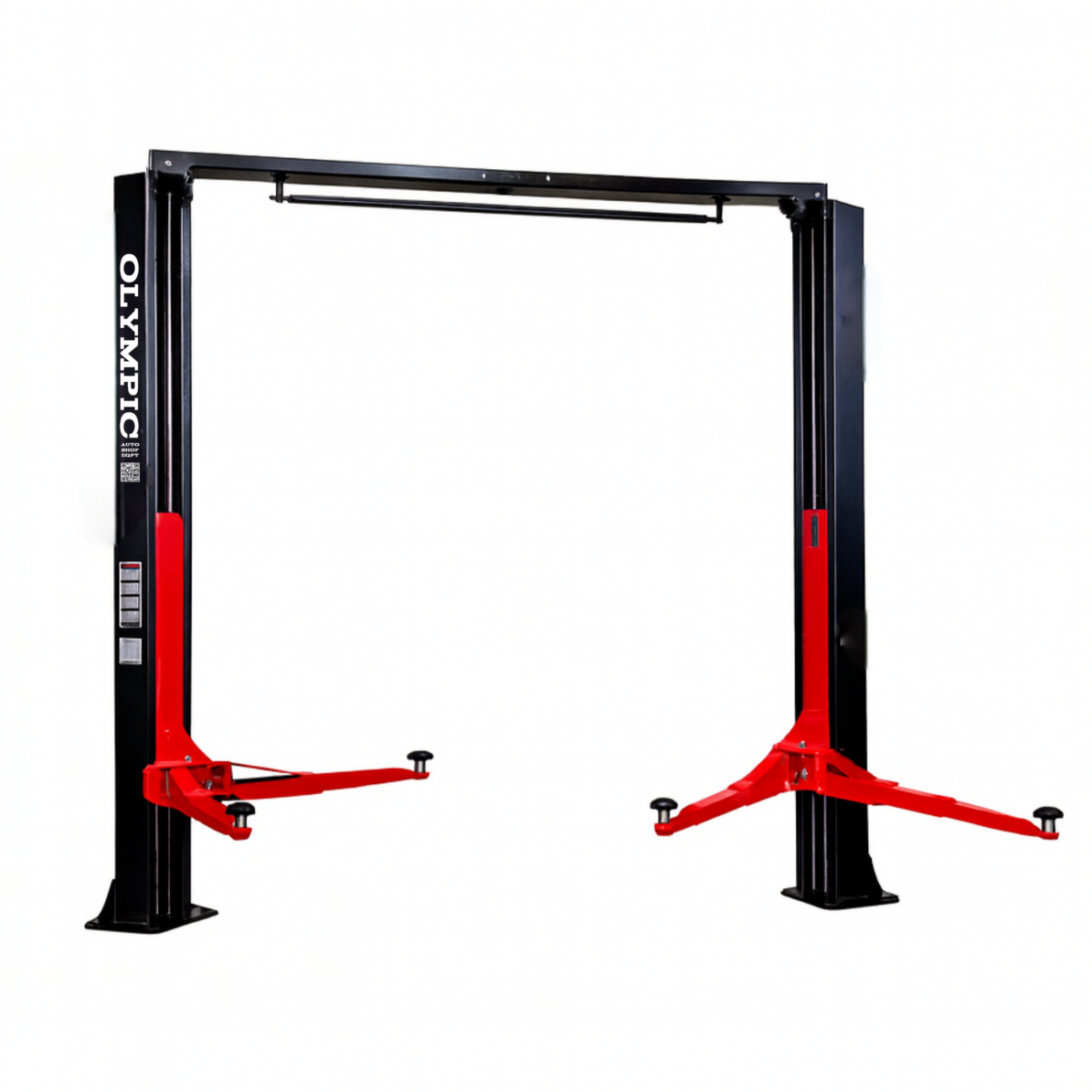

Olympic 2PDDA-10 10,000 lb. Asymmetric-Symmetric Two Post Lift

Olympic 2PDDA-10 10,000 lb. Asymmetric-Symmetric Two Post Lift

$4,299.00
$4,795.00 $4,299.00
Sold out
LTL Freight cost for continental USA is Free Shipping!

Availability: Low stock: 10 left
SKU: 2PDDA-10
Vendor: Olympic
Category: Two Post Lift
Tags: Automotive Lifts Car Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

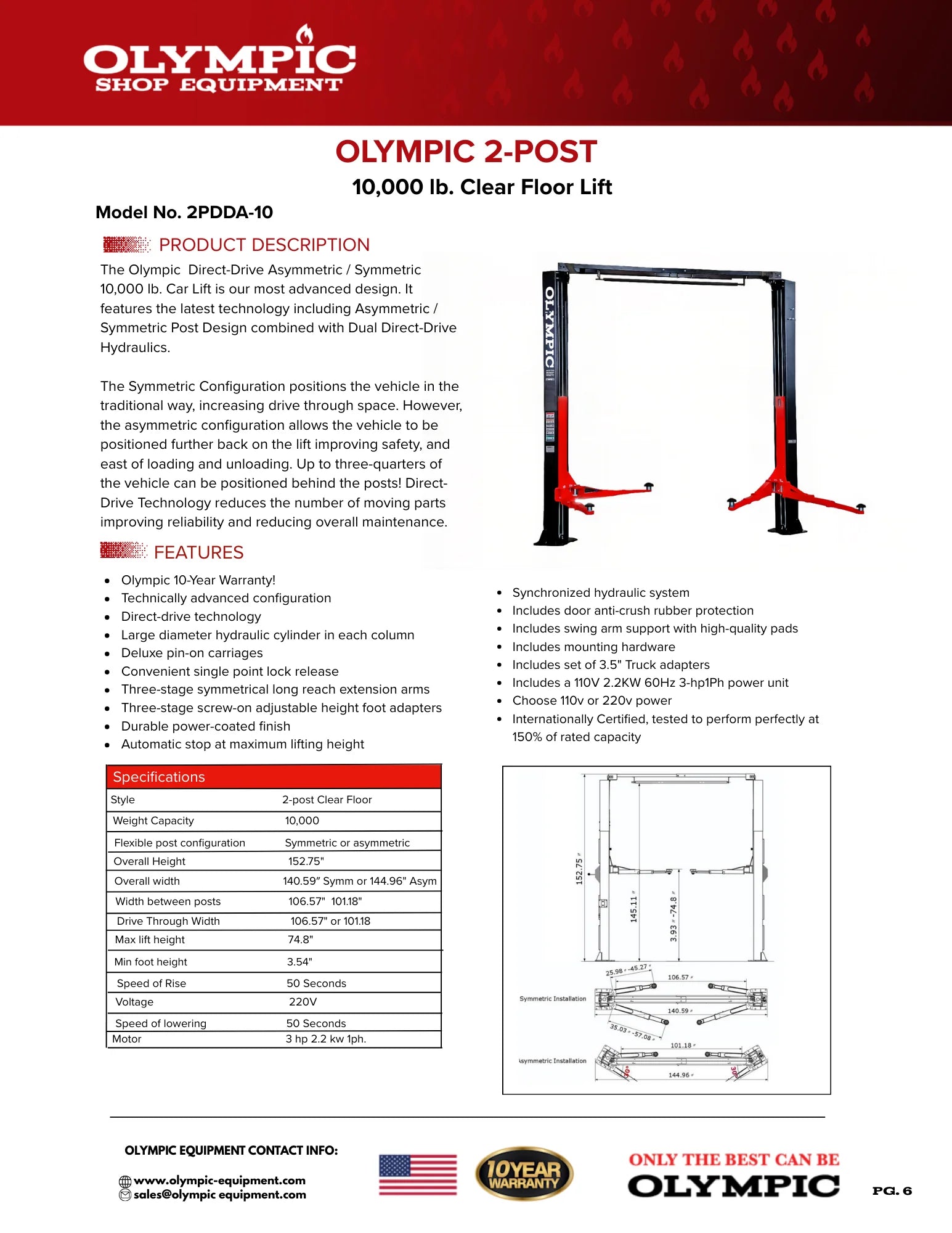

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

Olympic 2PDDA-10 / 10,000 lb. / Asymmetric-Symmetric Post Design / Direct Drive / Single Point Lock / Long Reach Extension Arms / 3-Stage Foot

The Olympic 2PDDA-10 10,000 lb. Asymmetric-Symmetric Two Post Lift combines advanced engineering with durable construction to deliver top-tier performance for professional shops. Featuring direct-drive hydraulics and flexible symmetric/asymmetric arm configurations, this lift ensures safe, efficient loading and unloading while reducing maintenance with fewer moving parts. Built with heavy-duty Q235 structural steel and tested at 150% of its rated capacity, the 2PDDA-10 offers reliability and versatility for a wide range of vehicles.

Product Features
  • Olympic 10-Year Warranty
  • High-quality Q235 structural steel
  • Advanced symmetric/asymmetric configuration
  • Direct-drive hydraulic system for reduced maintenance
  • Large-diameter hydraulic cylinders in each column
  • Deluxe pin-on carriages with single-point lock release
  • Three-stage long reach extension arms
  • Three-stage adjustable height foot adapters
  • Durable powder-coated finish
  • Automatic stop at maximum lift height
  • Synchronized hydraulic system
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality pads
  • Includes mounting hardware and (4) 3.5" truck adapters
  • 110V 2.2KW 3HP power unit included (220V optional)
  • Certified & tested at 150% of rated capacity
Product Specifications Details
Style 2-Post Clear Floor Asymmetric/Symmetric
Capacity 10,000 lbs
Flexible Post Configuration Symmetric or Asymmetric
Overall Height 152.75″
Overall Width 140.59″ Symmetric / 144.96″ Asymmetric
Drive-Through Width 106.57″ Symmetric / 101.18″ Asymmetric
Max. Lift Height 74.8″
Speed of Rise / Lowering 50 seconds each
Voltage 110V (220V optional)
Recommended Power Unit HPU2203, 3HP, 2.2KW, 1PH
Fits Under Ceiling Height 12′8″
