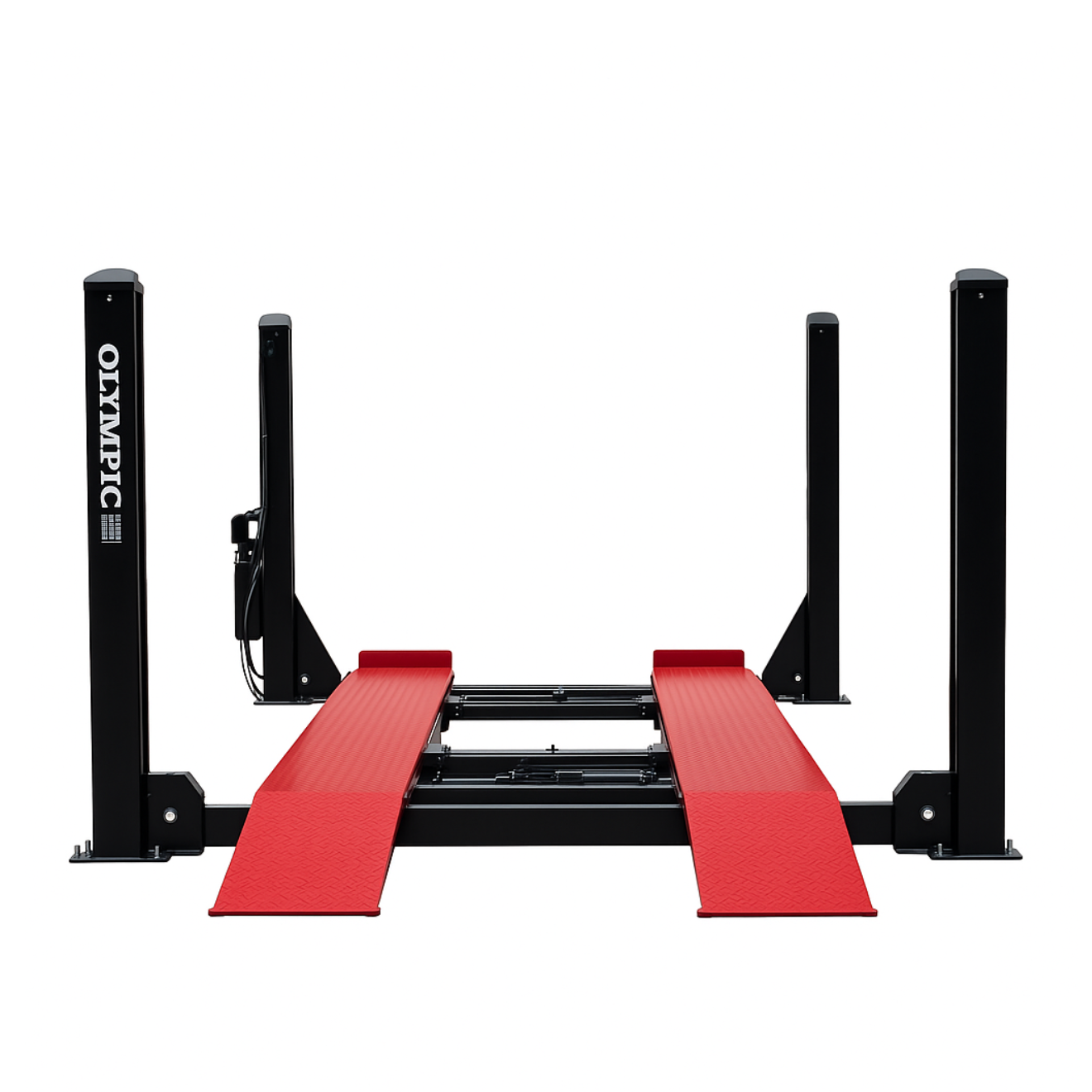

Olympic 4PHDXL-12 12,000 lb. Car/Truck Storage & Maintenance Four Post Lift

Olympic 4PHDXL-12 12,000 lb. Car/Truck Storage & Maintenance Four Post Lift

Regular price $5,799.00
Regular price $6,495.00 Sale price $5,799.00
Sold out

AvailabilityLow stock: 10 left

SKU: 4PHDXL-12
Vendor: Olympic
Category: Four Post Lifts

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

View full product details

The Olympic 4PHDXL-12 is a heavy-duty four-post storage and maintenance lift engineered for full-size trucks, vans, service vehicles, and low-clearance cars. Featuring an impressive 12,000 lb. capacity, reinforced Q235 structural steel, and extra-wide 21.6-inch runways, this lift delivers commercial-strength performance with the adaptability required for home or professional shop environments. Adjustable runways accommodate a wide range of tire widths, while the cable-driven lifting system and multi-height locking ladder provide secure positioning for storage or servicing. Designed with Italian-engineered hydraulic components, a 24V commercial-grade control box, and a 220V 2.2KW power unit, the 4PHDXL-12 offers reliable and low-maintenance operation—built to handle demanding daily use with long-term durability.

Product Features
  • 12,000 lb. lifting capacity for trucks, vans & heavy vehicles
  • Reinforced high-quality Q235 steel construction
  • 70.9" maximum lifting height
  • Extra-wide 21.6" steel runways
  • Adjustable runways accommodate multiple tread widths
  • Manual lock release with adjustable lock ladder for any height
  • Cable-driven system with anti-failure safety protection
  • Heavy-duty cable sheaves & oversized ladder lock system
  • Aircraft-grade cables rated at 16,000 lbs.
  • Durable powder-coated finish for corrosion resistance
  • Italian hydraulic oil seals & components
  • 24V automatic safety-conscious control box
  • 220V 2.2KW single-phase power unit included
  • Certified & third-party tested at 150% of rated capacity
  • Optional 6,000 lb. bridge jacks available (Part No. FBCJ-6)
Product Specifications
Load Capacity 12,000 lbs
Overall Height 87.40″
Overall Width 132.40″
Width Between Posts 114.37″
Runway Length 196.85″
Runway Width 21.65″
Width Between Tracks 39″
Max. Lifting Height 70.86″
Overall Length 245.47″
Shipping Weight 3,880 lbs
Power Unit 220V, 3KW, 4HP, 1Ph
