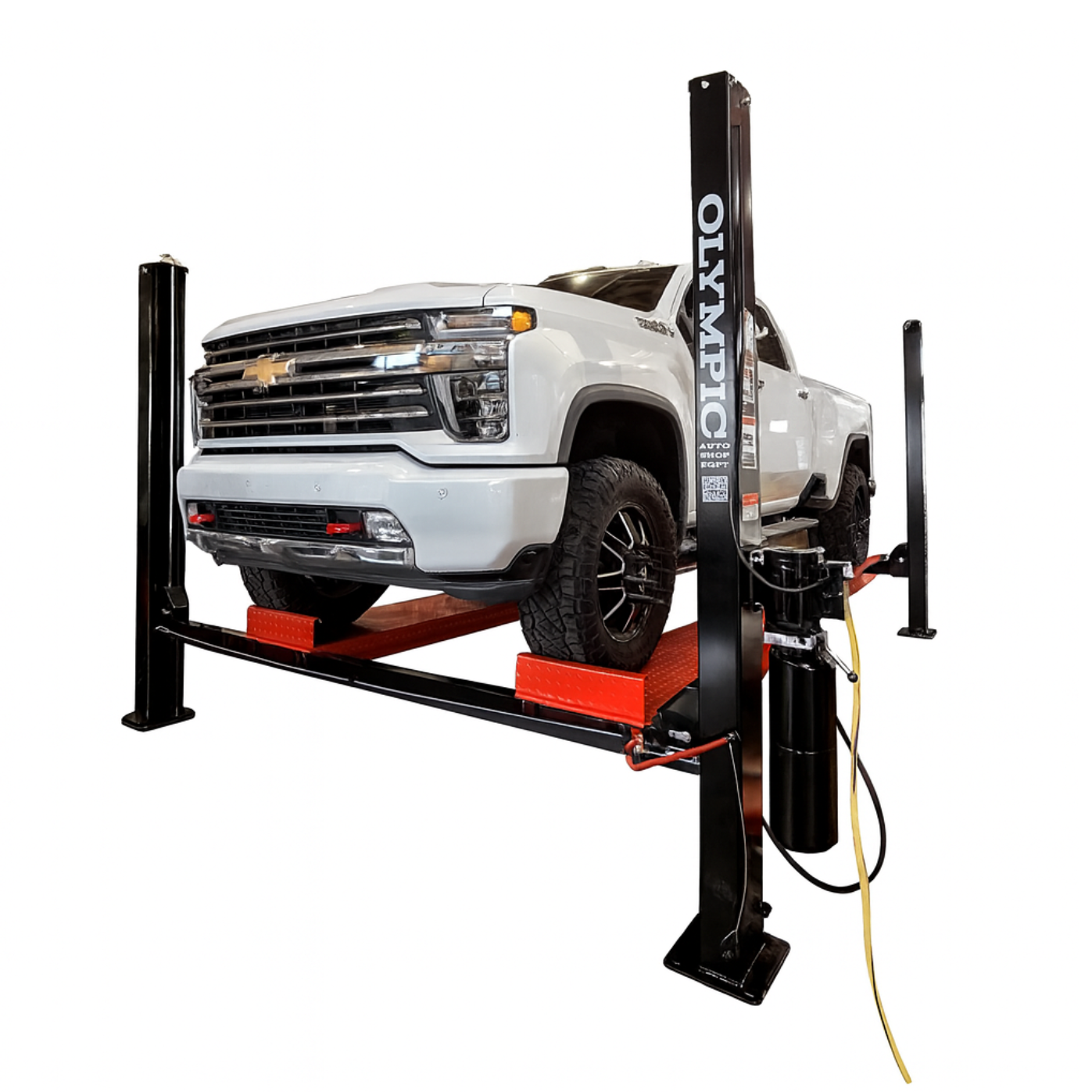

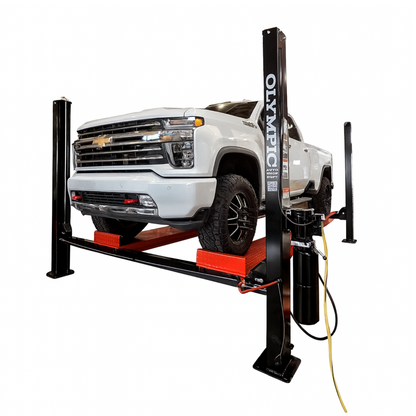

Olympic 4PXL-10 “The Dually” Portable 10,000 lb. Maintenance & Storage Four Post Lift

Olympic 4PXL-10 “The Dually” Portable 10,000 lb. Maintenance & Storage Four Post Lift

Regular price $5,299.00
Regular price $5,995.00 Sale price $5,299.00
Sold out

AvailabilityLow stock: 10 left

SKU: 4PXL-10
Vendor: Olympic
Category: Four Post Lifts

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

View full product details

The Olympic 4PXL-10 “The Dually” Portable 10,000 lb. Maintenance & Storage Four Post Lift is engineered for serious work and oversized vehicles, offering the strength, width, and clearance needed for dual-wheel pickup trucks, service vehicles, long-bed trucks, and super-wide SUVs. Designed with extra-long platforms and 84 inches of clearance under the tracks, “The Dually” excels as both a professional maintenance lift and a premium vehicle storage system. Featuring an adjustable runway configuration for trailer applications, a massive 112″ drive-through width, and a wide 125″ between posts, this lift delivers unmatched versatility. With a portable drive-through design, multiple safety lock positions, and durable Q235 structural steel construction, the 4PXL-10 is the powerhouse solution for commercial shops, storage facilities, and serious collectors who demand maximum capacity and reliability.

Product Features
  • 10,000 lb. lifting capacity for dual-wheel trucks, service vehicles & full-size SUVs
  • Extra-wide design with 112″ drive-through width
  • 125″ width between posts for wider load capability
  • Provides 84″ of storage clearance beneath runways
  • Extra-long 195″ platforms for long-bed trucks & trailers
  • Adjustable runway spacing for trailer width flexibility
  • 19 ladder lock safety positions for secure lifting

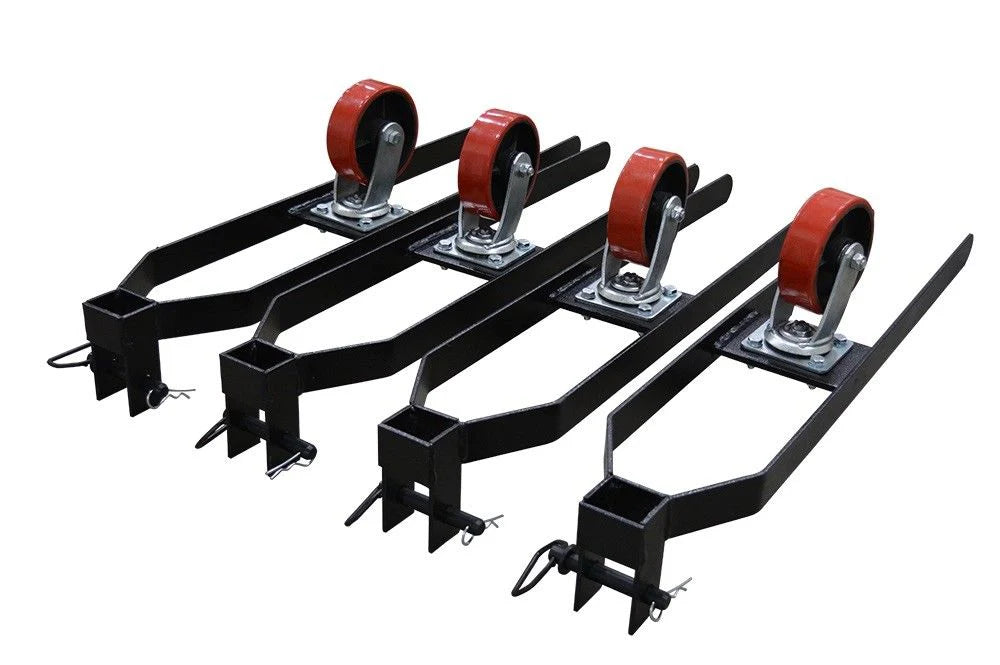

  • Portable drive-through design with mobility package included
  • High-quality Q235 structural-grade steel construction
  • Durable powder-coated finish for long-term corrosion resistance
  • Smooth lifting operation powered by heavy-duty hydraulic system
  • Includes removable ramps, removable wheel stops & drip trays
  • Certified and tested to 150% of rated capacity
  • Optional 7,000 lb. bridge jack for wheel service applications
  • Optional tool tray, aluminum ramps & aluminum center platforms
  • Available in 110V or 220V power configuration
Product Specifications
Style 4-Post XL “Dually” Portable Lift
Capacity 10,000 lbs.
Overall Lift Length 239.76″
Overall Width 140.35″
Overall Height 104.33″
Drive Through Width 112″
Width Between Posts 125″
Platform Length 195″ (Extra-long)
Runway Width (Adjustable) 86″ – 106″
Lifting Range 5.71″ – 88.74″
Max. Clearance Under Tracks 84.02″
Width Between Tracks 46″
Speed of Rise 50 seconds
Speed of Lowering 50 seconds
Recommended Power Unit HPU2203, 3HP, 2.2KW, 1PH
Voltage Options 110V / 220V
