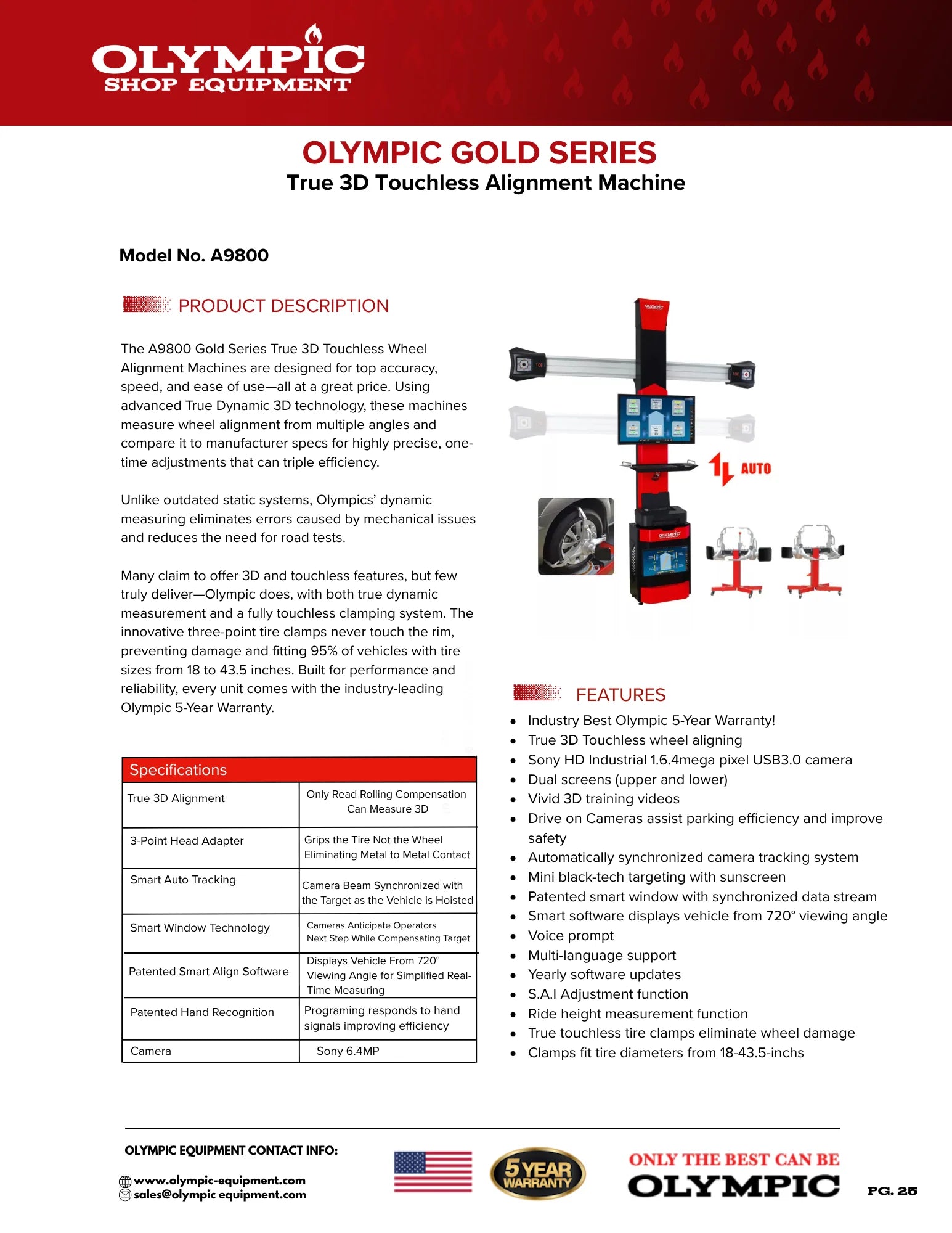

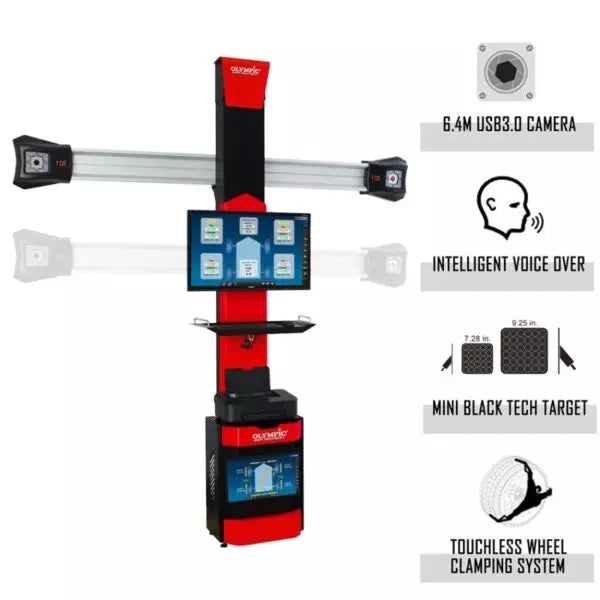

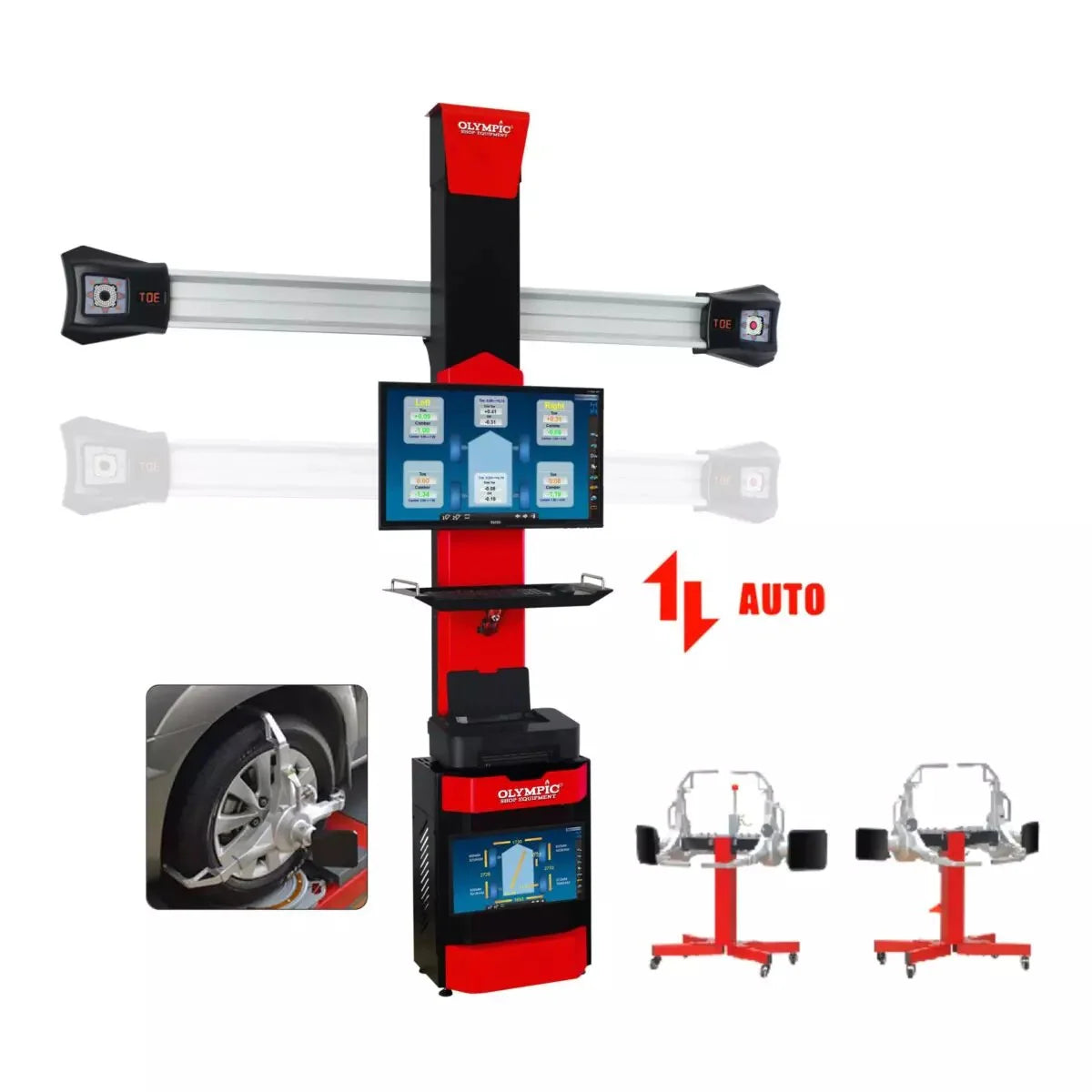

The Olympic A9800 True 3D Touchless Alignment Machine is engineered for maximum precision, speed, and safety—offering a completely contact-free alignment process with zero risk of rim damage. With patented 3-point touchless tire adapters, dual-screen visibility, and Sony 6.4MP HD industrial camera technology, the A9800 provides real-time measurement accuracy that outperforms traditional systems. Designed for busy service centers, high-volume shops, and dealerships, this machine dramatically reduces set-up time, eliminates test drive repeatability issues, and increases shop efficiency by up to 300%.
Featuring advanced smart window technology, synchronized camera beam tracking, and lightweight polymer “Black-Tech” sun-resistant targets, the A9800 delivers consistent results in any lighting environment—indoors or outdoors. Multi-language voice prompts, training videos, and intuitive software make it incredibly simple to operate for both new and experienced technicians. If you want faster turnaround, damage-free operation, and premium measuring accuracy, the Olympic A9800 delivers true 3D alignment technology built for modern automotive demands.
| Product Features |
|---|
| • True 3D Touchless Wheel Alignment • No-rim-contact patented 3-point tire clamps • Sony 6.4MP USB3.0 HD industrial camera • Dual-screen upper and lower display stations • Real-time smart window compensation technology • Automatic synchronized camera beam tracking • Lightweight polymer “Black-Tech” sun-resistant targets • 720° real-time vehicle visualization • Voice prompts + vivid 3D training support videos • Ideal for cars, trucks, SUVs & oversized wheels • Significantly reduces test drive repeatability issues • Built for high-volume commercial service centers |
| Product Specifications | Details |
|---|---|
| Alignment Type | True 3D Rolling Compensation |
| Clamp Type | 3-Point Touchless Tire Adapter |
| Camera | Sony 6.4MP Industrial USB3.0 |
| Tracking System | Auto-Synchronized Beam Tracking |
| Software Features | 720° Vehicle View, Smart Anticipation Compensation |
| Measurement Functions | Toe, Turning Angle, Ride Height, Wheelbase, Track Width |
| Target Material | Black-Tech Polymer (Sun Resistant) |
| Tire Diameter Range | 18″ – 43.5″ |
| Power Requirement | 110V – 60Hz – Single Phase |
| Package Dimensions | Three Crates: 14″×11″×111″ (x2), 39″×30″×53″ |
| Shipping Weight | 640 lbs |
