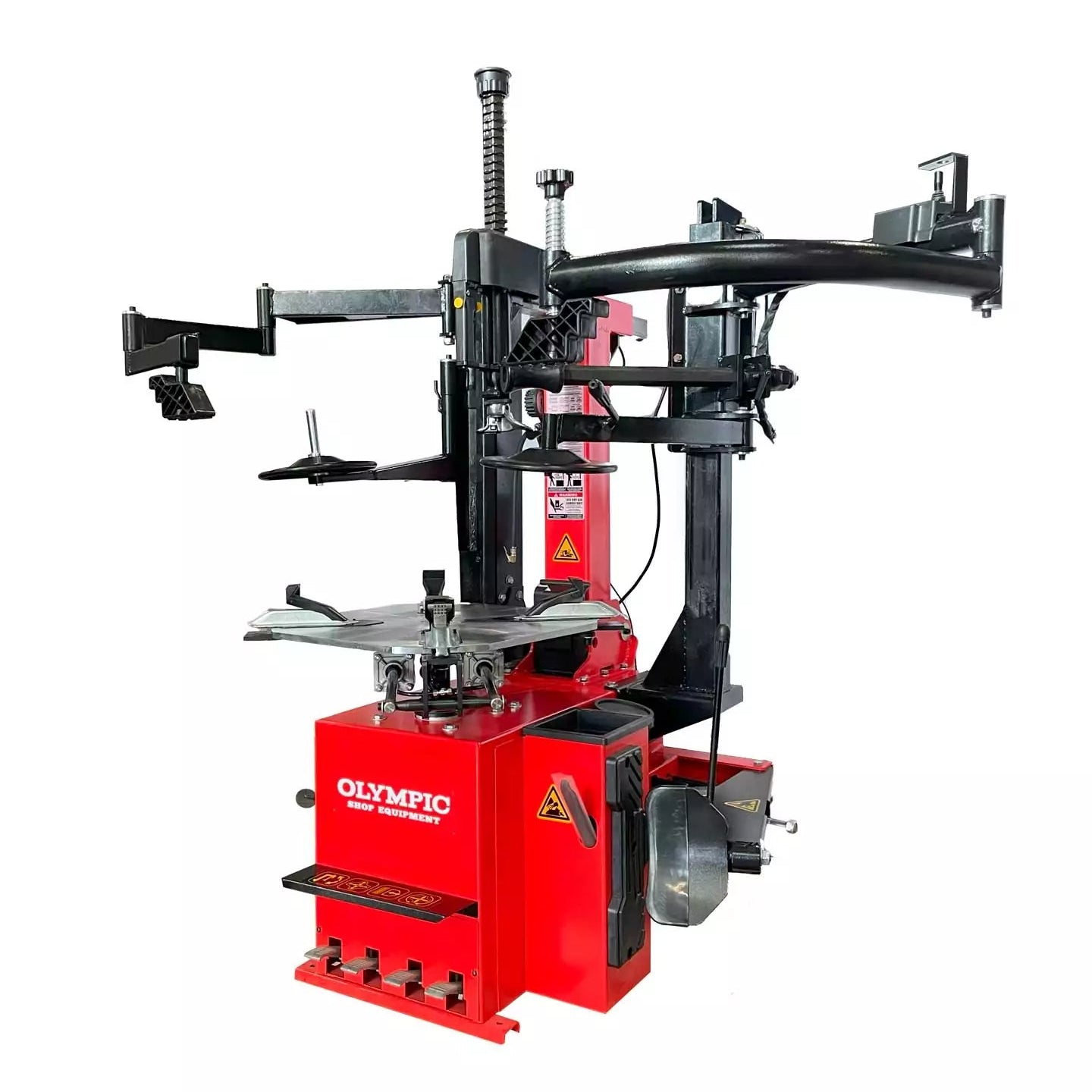

The Olympic T650 Rim-Lock All-In-One Tilt Back Tire Changer combines precision, speed, and versatility in a single compact unit. Designed for challenging tires, including run-flats and low-profile wheels, the T650 features a pneumatically operated tilt-back column, double assist arms, and pneumatic bead press arms to make mounting and demounting safer and more efficient. Perfect for shops handling a wide range of vehicles, this next-generation tire changer improves workflow while protecting rims and tires.
Built with a heavy-duty steel bead breaker, large-diameter clamping cylinder, and a lightweight aluminum gearbox, the T650 delivers long-lasting performance and reliability. Integrated seal rings and pistons reduce resistance for smooth operation, and optional motorcycle adapters extend its versatility. Engineered for professional shops, it handles every job with confidence.
| Product Features |
|---|
| • Olympic 5-Year Warranty • Pneumatically operated tilt-back column • Double assist swing arms • Pneumatic bead press arms for tough mountings • Steel bead breaker cylinder for durability • Heavy-duty large-diameter clamping cylinder • Integrated seal ring & piston for smooth operation • Lightweight aluminum gearbox for long life • Pneumatic bead breaker • High-torque motor & drive system • Optional motorcycle adapter |
| Product Specifications | Details |
|---|---|
| Style | Semi-Automatic Tilt-Back Arm |
| Max Tire Diameter | 38″ |
| Max Wheel Width | 13″ |
| Outside Clamping | 10″ – 20″ |
| Inside Clamping | 12″ – 24″ |
| Air Supply | 8 – 10 bar |
| Bead Breaker Force | 5,500 lbs |
| Noise Level | <70 dB |
| Weight | 421 lbs / 393 lbs |
| Package Size | 38″ × 30.5″ × 37.5″ |
| Power | 110V, 2.2KW, 60Hz, 1PH |
