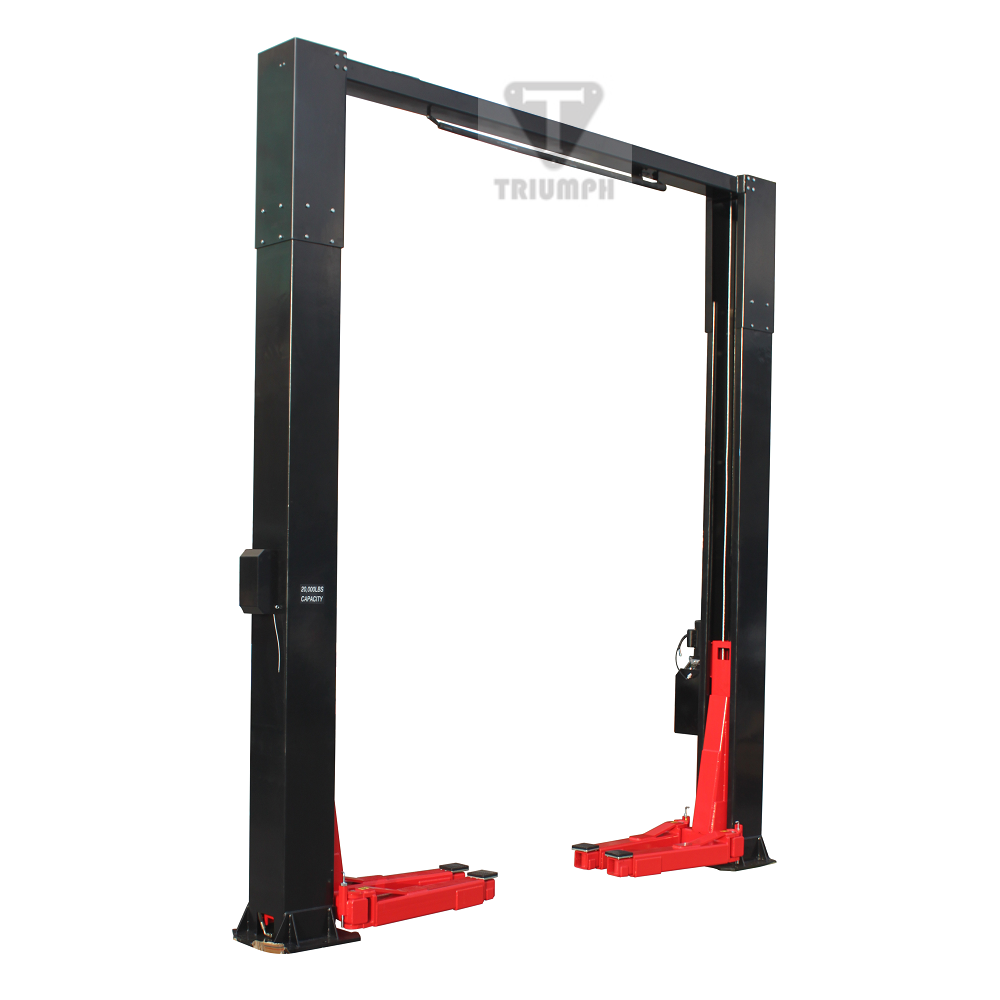

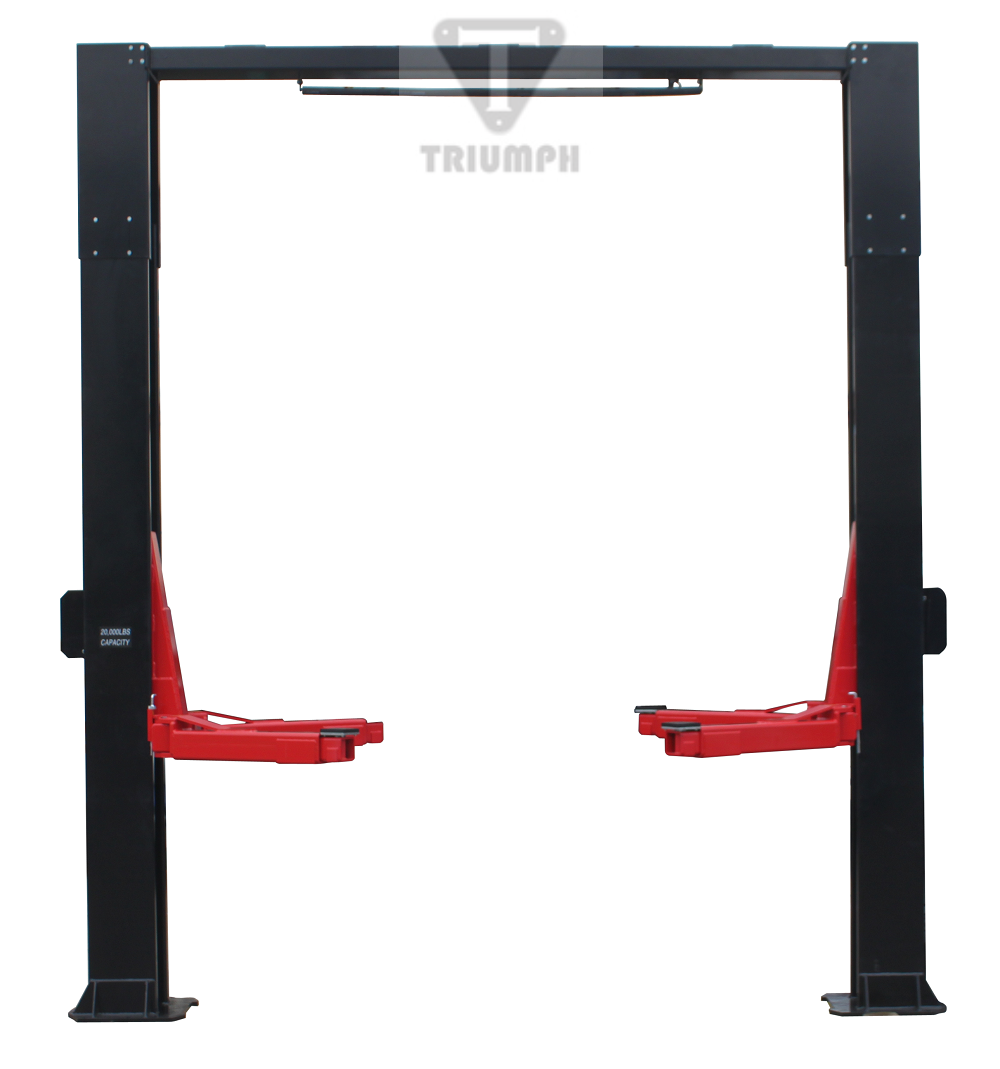

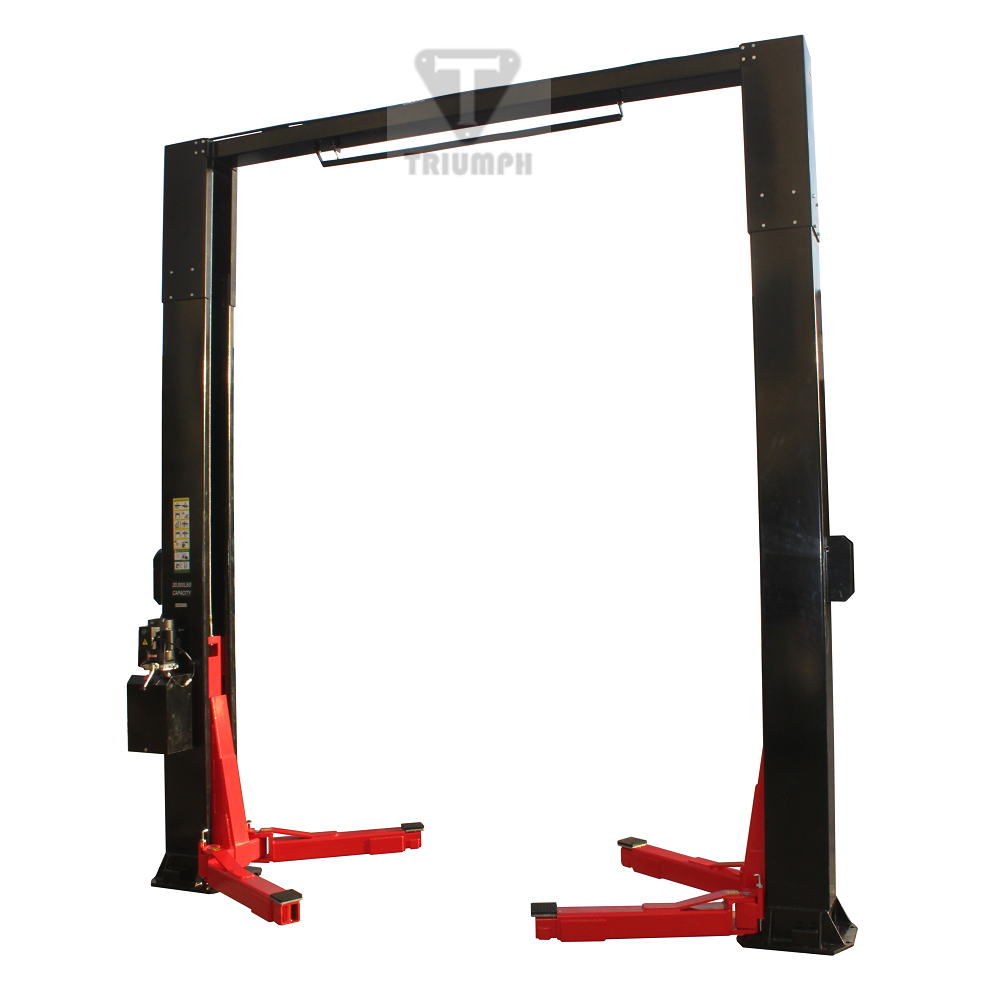

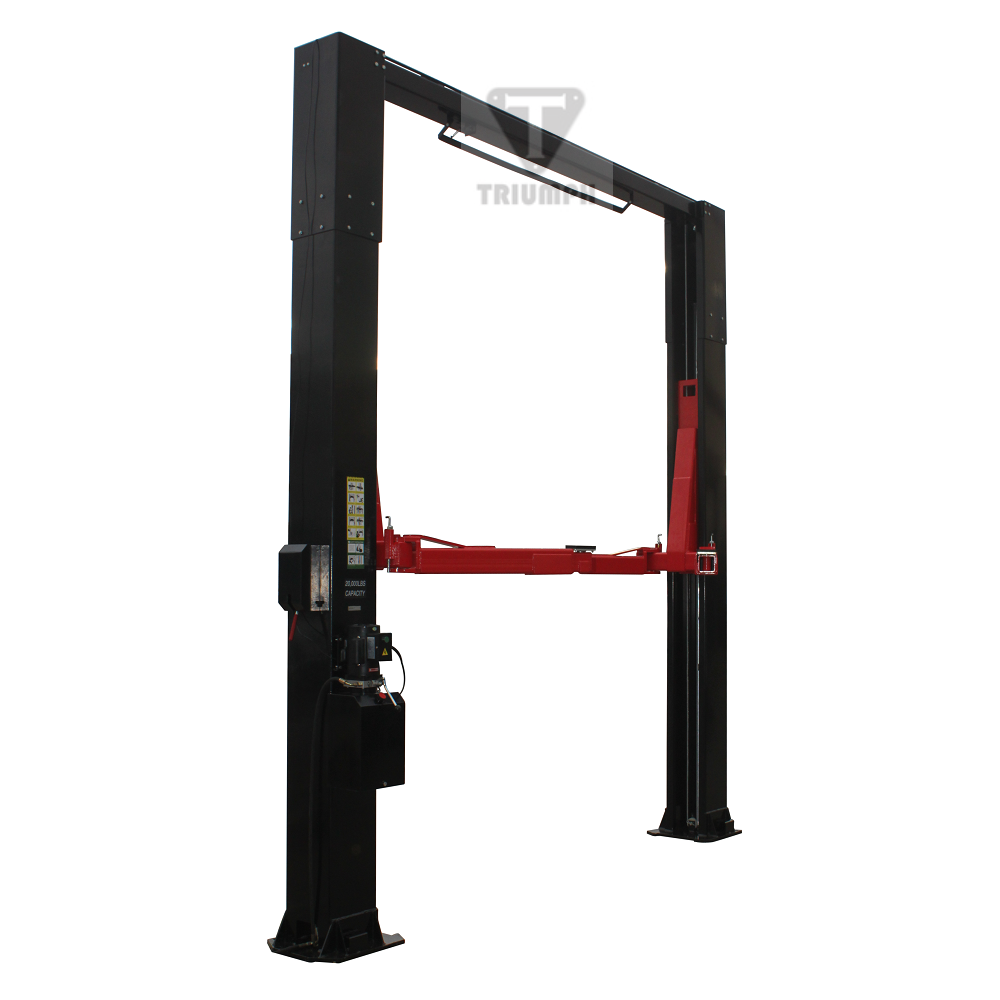

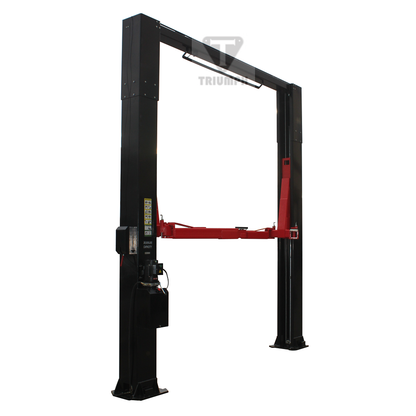

When your shop needs uncompromising strength and reliability, the Triumph NTO-20S Two-Post Auto Lift delivers. Built to handle the biggest vehicles on the road, this commercial-grade lift boasts a 20,000 lb lifting capacity, making it ideal for fleet vehicles, heavy-duty trucks, commercial vans, and industrial service bays.
Whether you're operating a busy repair shop, municipal garage, or heavy equipment facility, the NTO-20S brings confidence to every lift. With a clear-floor overhead design, powerful direct-drive cylinders, and a single-point lock release, this lift is engineered for smooth operation and professional-level safety.
The NTO-20S provides ample working space with an overall height of 170.5", a drive-thru width of 113", and a lifting height of 74". Designed for performance, it includes ISO 9001 & CE certification, an electric safety shutoff, and all truck adapters and mounting hardware for full versatility right out of the box.
20,000 LB Lifting Capacity – Handles large fleet trucks, utility vehicles, buses, and heavy equipment
Direct Drive Hydraulics – Smooth, consistent lift performance with reduced maintenance
Overhead Clear-Floor Design – Keeps shop floors open for jacks, creepers, and tools
Single-Point Lock Release – Easy, safe operation from one side
Electric Safety Cutoff – Prevents over-lifting for added protection
Heavy-Duty Steel Frame – Built to last under extreme shop conditions
Fast 40-Second Lift Time – Improves turnaround in high-traffic bays
Includes Truck Adapters & Anchors – Ready for various vehicle sizes and types
| Specification | Detail |
|---|---|
| Lift Model | NTO-20S |
| Capacity | 20,000 lbs |
| Overall Height | 170.5″ |
| Overall Width | 155″ |
| Width Between Posts | 124″ |
| Drive-Thru Width | 113″ |
| Lifting Height | 74″ |
| Lowered Height | 6″ |
| Base Plate Size | 21″ x 20″ |
| Truck Adapters | Included |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220V |
| Horsepower | 3 HP |
| Concrete Requirement | 6" Slab, 4,000 PSI |
| Style | Overhead, Clear-Floor |
| Certifications | ISO 9001, CE Compliant |
Turbo Lifts offers nationwide freight delivery and local warehouse pickup to save time and freight costs.
Available Pickup Locations:
Fort Worth, TX
Columbus, OH
Las Vegas, NV
Need help with delivery or installation logistics? Contact us for expert support.
If you need dependable lifting power for Class 4+ trucks, utility vehicles, or commercial rigs, the Triumph NTO-20S is your heavy-duty solution. At Turbo Lifts, we only carry equipment that meets the demands of real shops. Invest in strength, safety, and reliability—backed by a brand that knows the industry.
