Create More Room With Heavy-Duty Strength

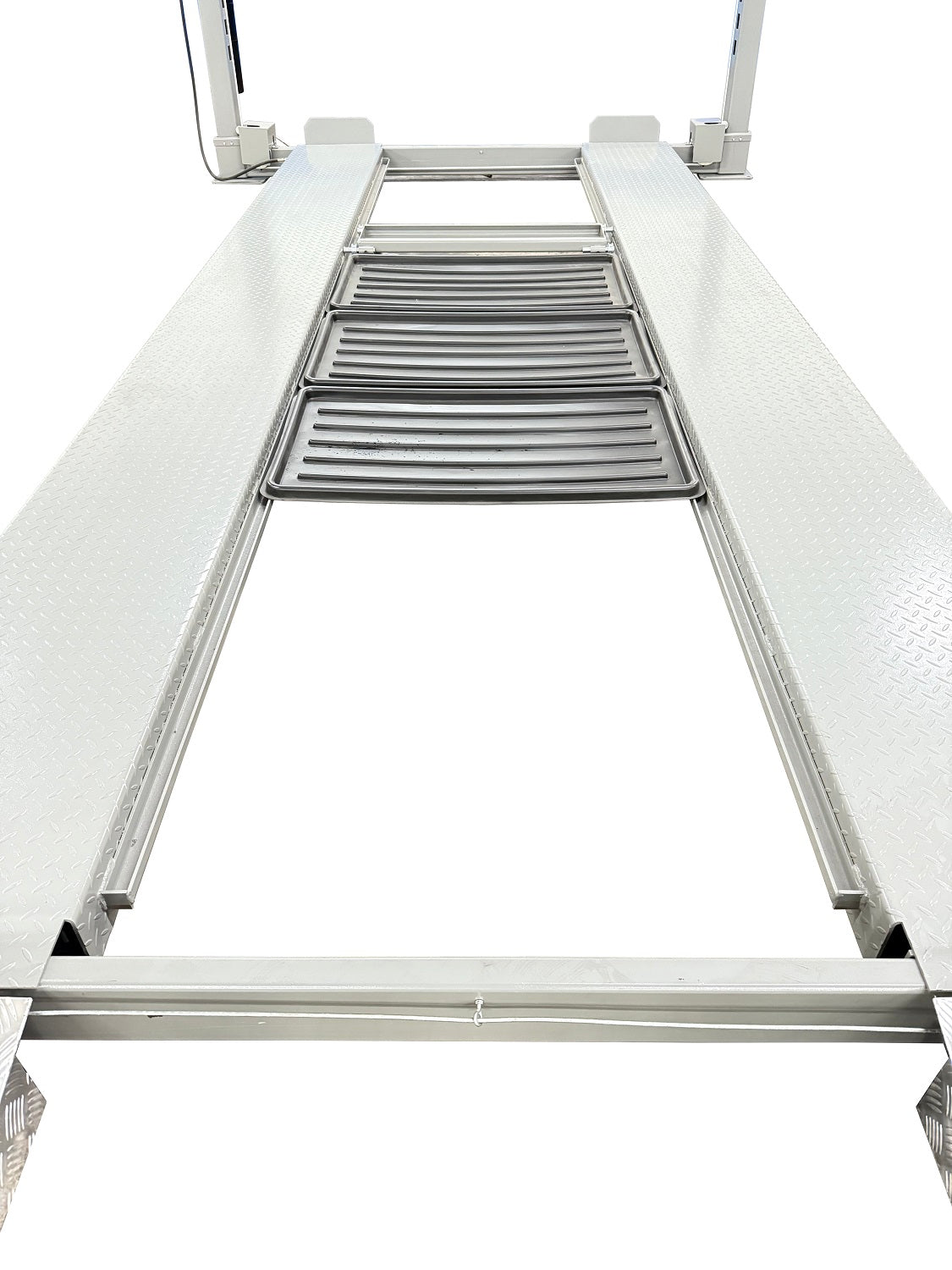

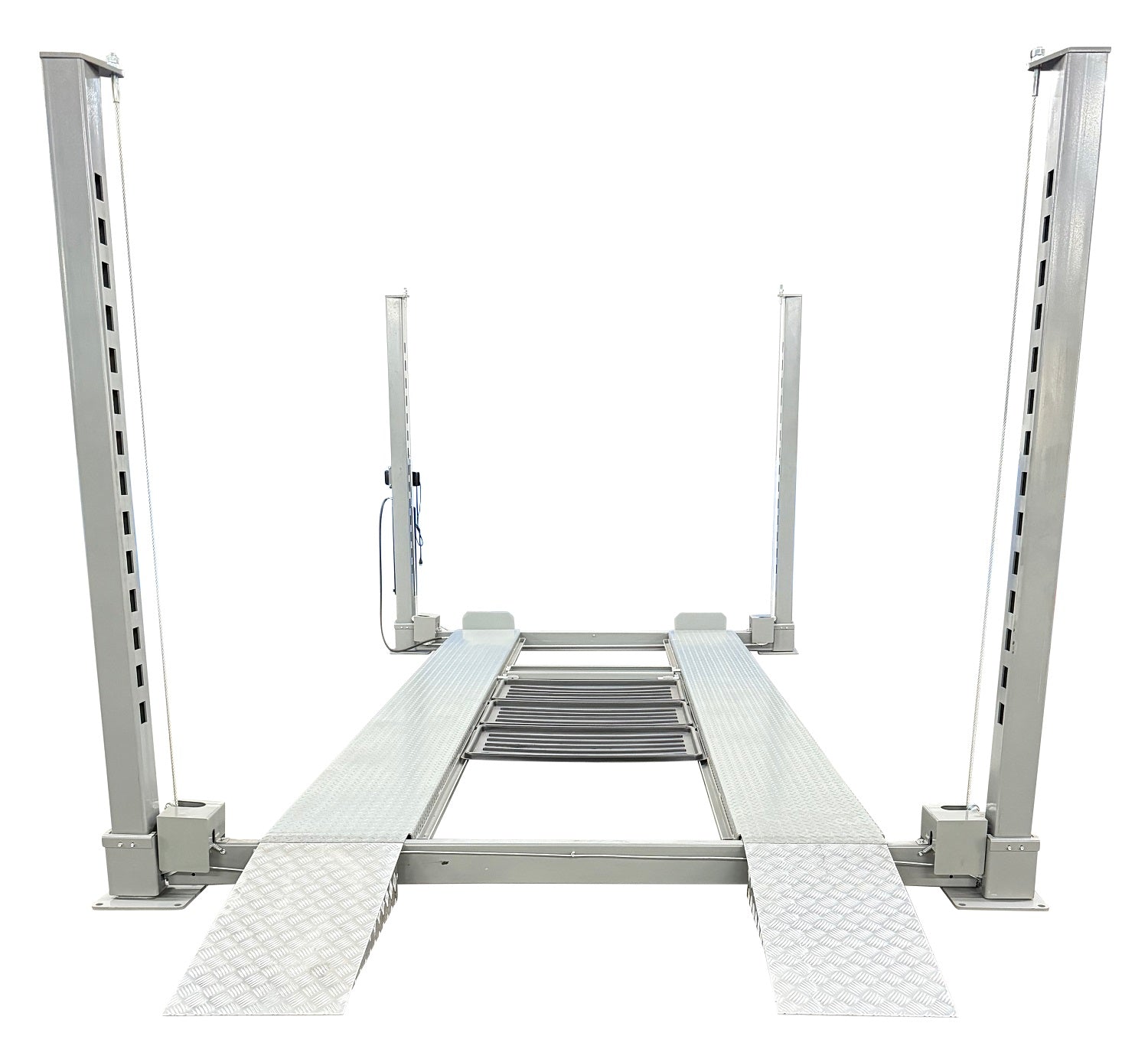

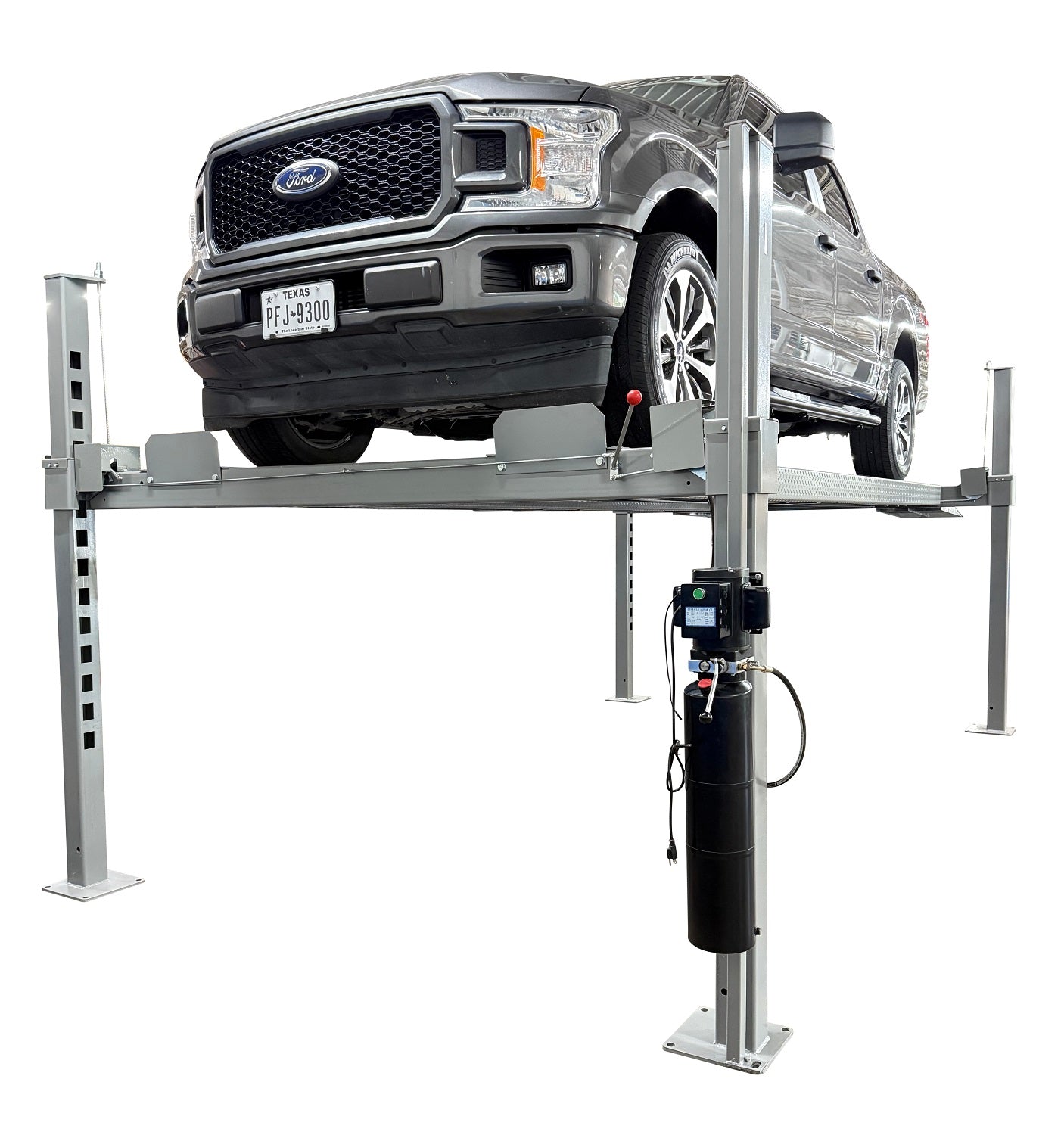

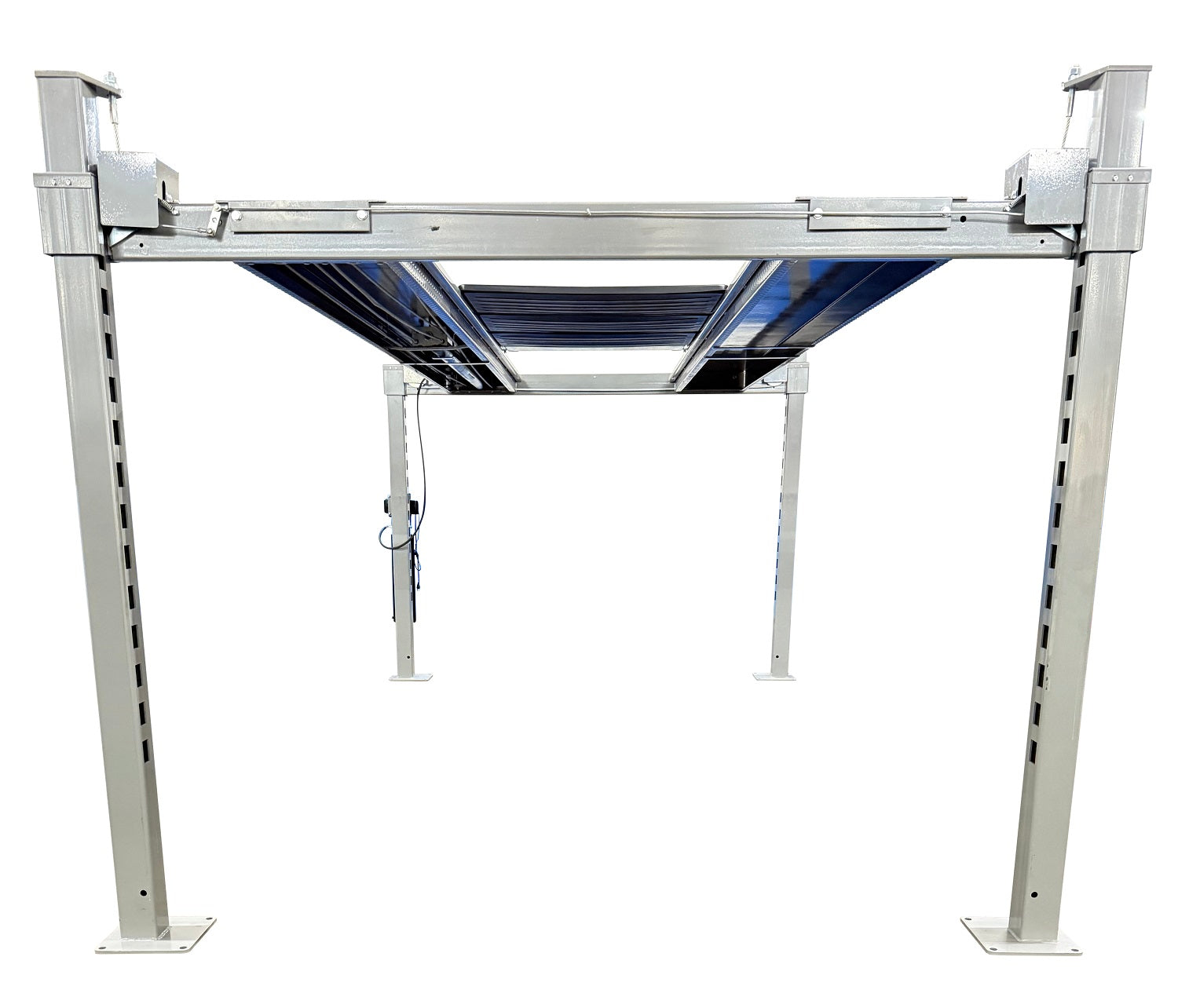

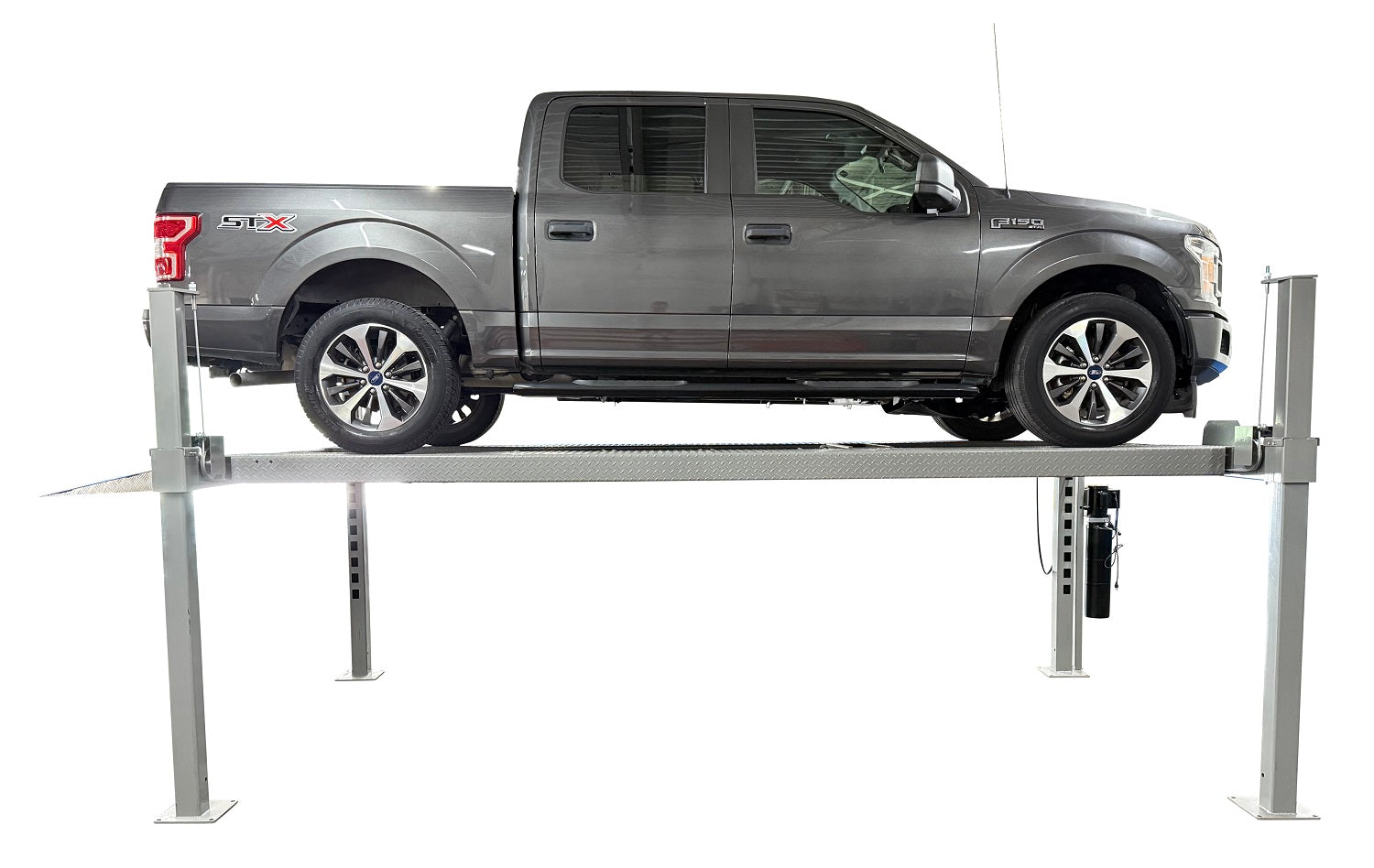

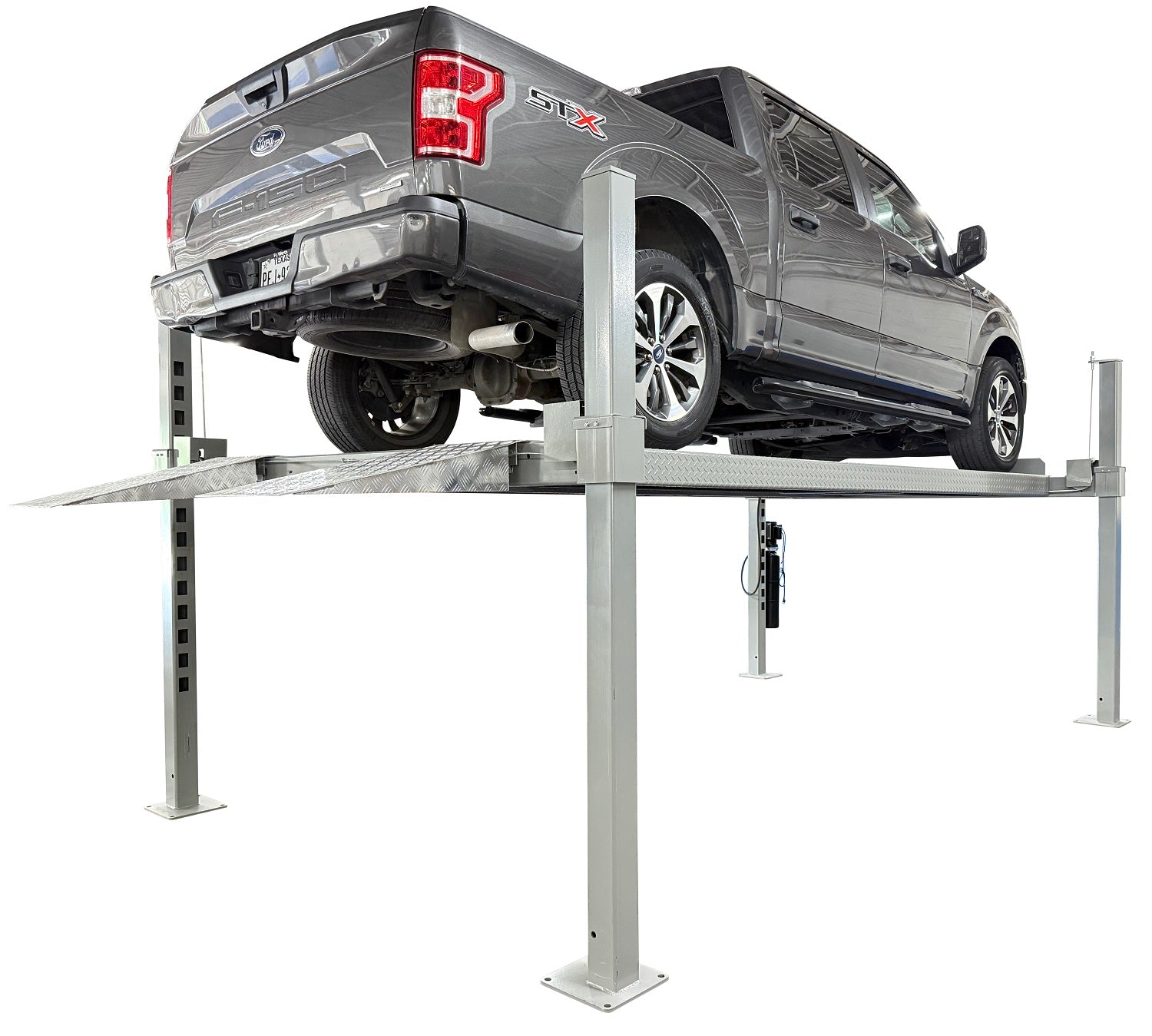

The Triumph NOS10000 is a 10,000 lb four-post lift designed for vehicle storage, maintenance, detailing, and professional service work. It allows you to store one vehicle above another or gain convenient underbody access without permanently occupying another service bay.
Built for Cars, SUVs, and Light-Duty Trucks
Its reinforced boxed runways, outside-slider design, and oversized structural components provide the strength and stability needed for larger vehicles. Massive 4.75-inch columns, 6.5-inch slide collars, and 12-inch base plates create a solid foundation for dependable everyday use.
Simple, Secure Operation

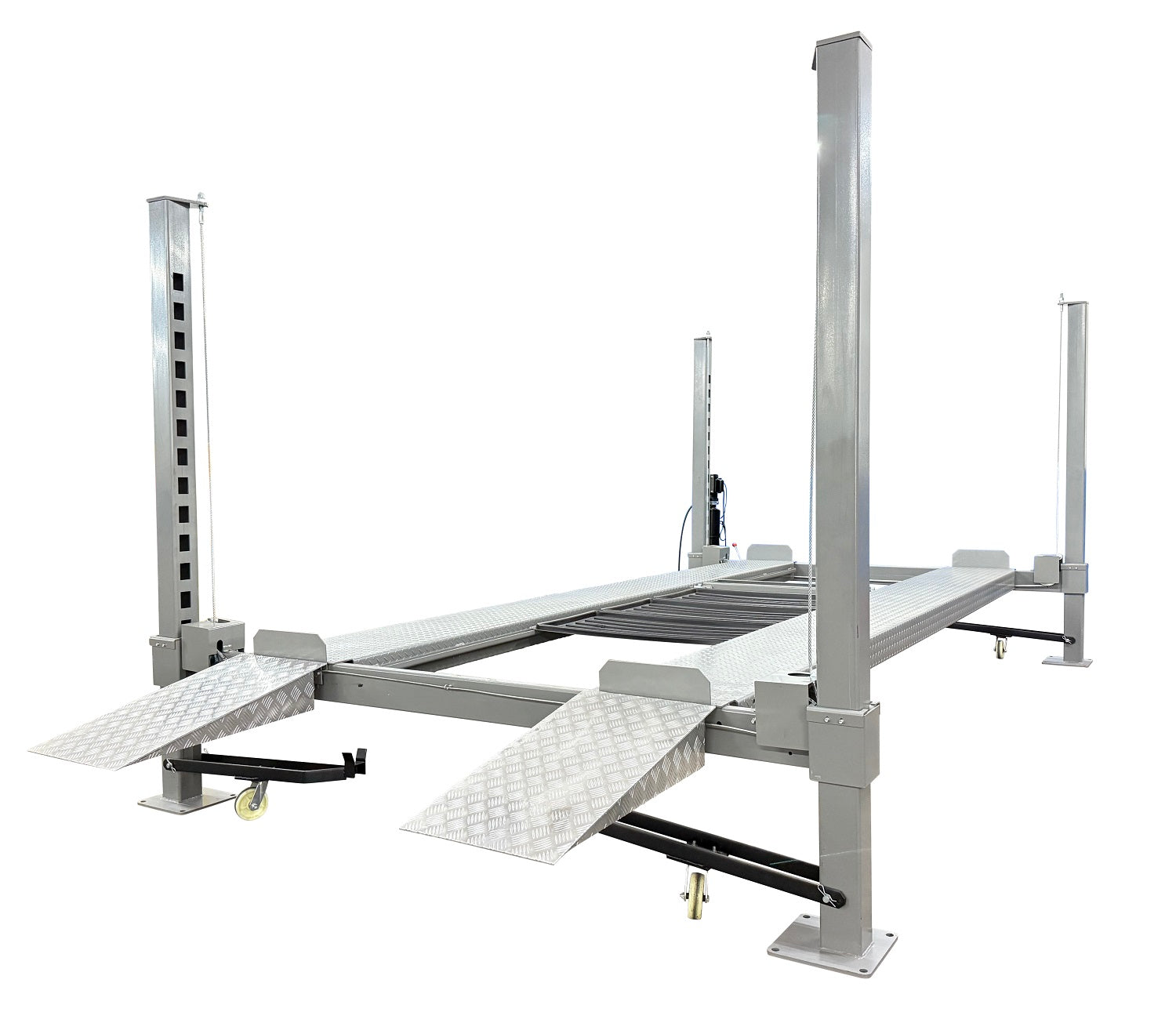

Manual deadbolt locks with an oversized release linkage provide secure mechanical support at multiple lifting heights. A secondary redundant safety system adds another layer of protection during operation. Lightweight 36-inch aluminum ramps simplify vehicle loading, while the included poly-coated caster kit allows the lift to be repositioned when unloaded.
USA-Based Manufacturer Support
The NOS-10 10,000lb is backed by USA-based technical support through National Auto Tools. Their experienced team can assist with assembly, troubleshooting, warranty questions, and replacement parts.
A Smart Long-Term Investment
Whether you need additional vehicle storage, more room for maintenance, or dependable equipment for a commercial shop, the Triumph NOS10000 delivers the capacity, stability, included accessories, and manufacturer support needed for long-term ownership.
| Product Features |
|---|
| • 10,000 lb lifting capacity for cars, trucks, and SUVs • Outside slider design for enhanced rigidity and stability • Oversized 4.75" x 4.75" columns with 6.5" x 6.5" slide collars • Reinforced boxed runways for added strength • Manual deadbolt locking system with oversized release linkage • Secondary redundant safety locking system • Heavy-duty poly-coated caster kit included • Lightweight 36" aluminum ramps (29 lbs each) • Rolling jack tray with integrated drain plug • Full set of drip trays for vehicle storage protection • Cable keepers to prevent cable run-off and extend cable life • Durable black powder-coated finish |
| Product Specifications | Details |
|---|---|
| Lift Model | NOS-10 |
| Lifting Capacity | 10,000 lbs |
| Overall Height | 99.5" |
| Overall Length | 210-1/2" |
| Overall Width | 123" |
| Max Lift Height | 87" |
| Height Under Runway | 81-1/2" |
| Runway Length | 204" |
| Drive-Thru Width | 109" |
| Runway Width | 20" |
| Lowered Height | 5-1/2" |
| Locking Positions | 14 |
| Base Plate Size | 12" x 12" |
| Lock Release | Single Point Manual |
| Lift Time | 60 Seconds |
| Power Requirement | 110V |
| Shipping Weight | 2,535 lbs |
