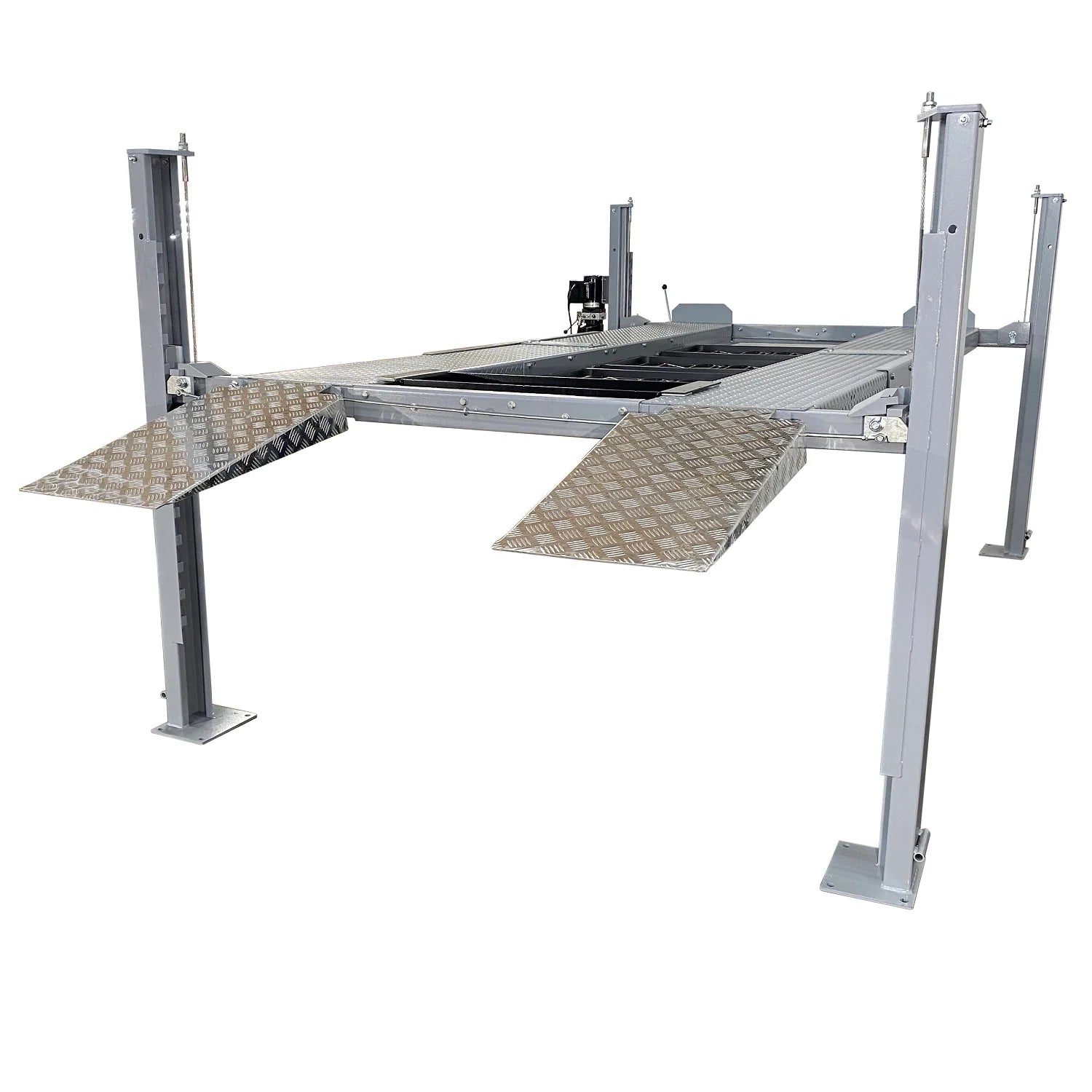

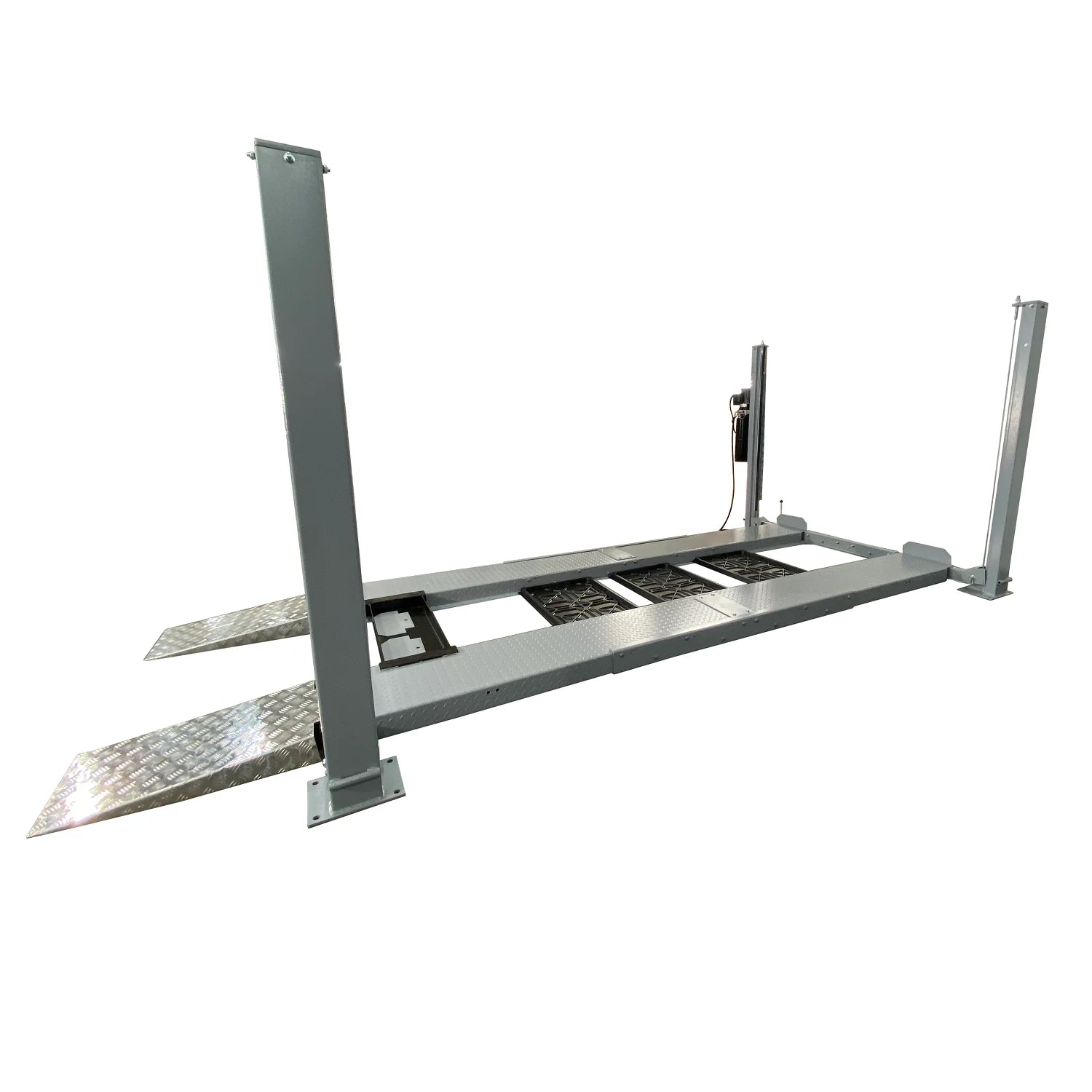

The Triumph NSS8X-1 8,000 LB Four Post Parking Storage Lift is the ideal solution for maximizing garage space while safely storing your vehicle overhead. Designed for residential garages, collectors, and automotive enthusiasts, the NSS8X-1 provides 72" of lift height and an 8,000 lb lifting capacity, allowing you to create additional parking or storage space without expanding your garage. Featuring reinforced runways, automatic locking positions, included drip trays, a jack tray, and a caster kit, the Triumph NSS8X-1 combines convenience, durability, and reliable vehicle storage performance in one complete package.
| Product Features |
|---|
| 8,000 lb lifting capacity for cars, trucks, SUVs, and collector vehicles |
| Creates additional parking and storage space by lifting one vehicle above another |
| 72" maximum lift height provides generous clearance underneath |
| 10 automatic locking positions for secure vehicle storage |
| Single-point lock release system for convenient operation |
| Reinforced runways and cross rails for added strength and durability |

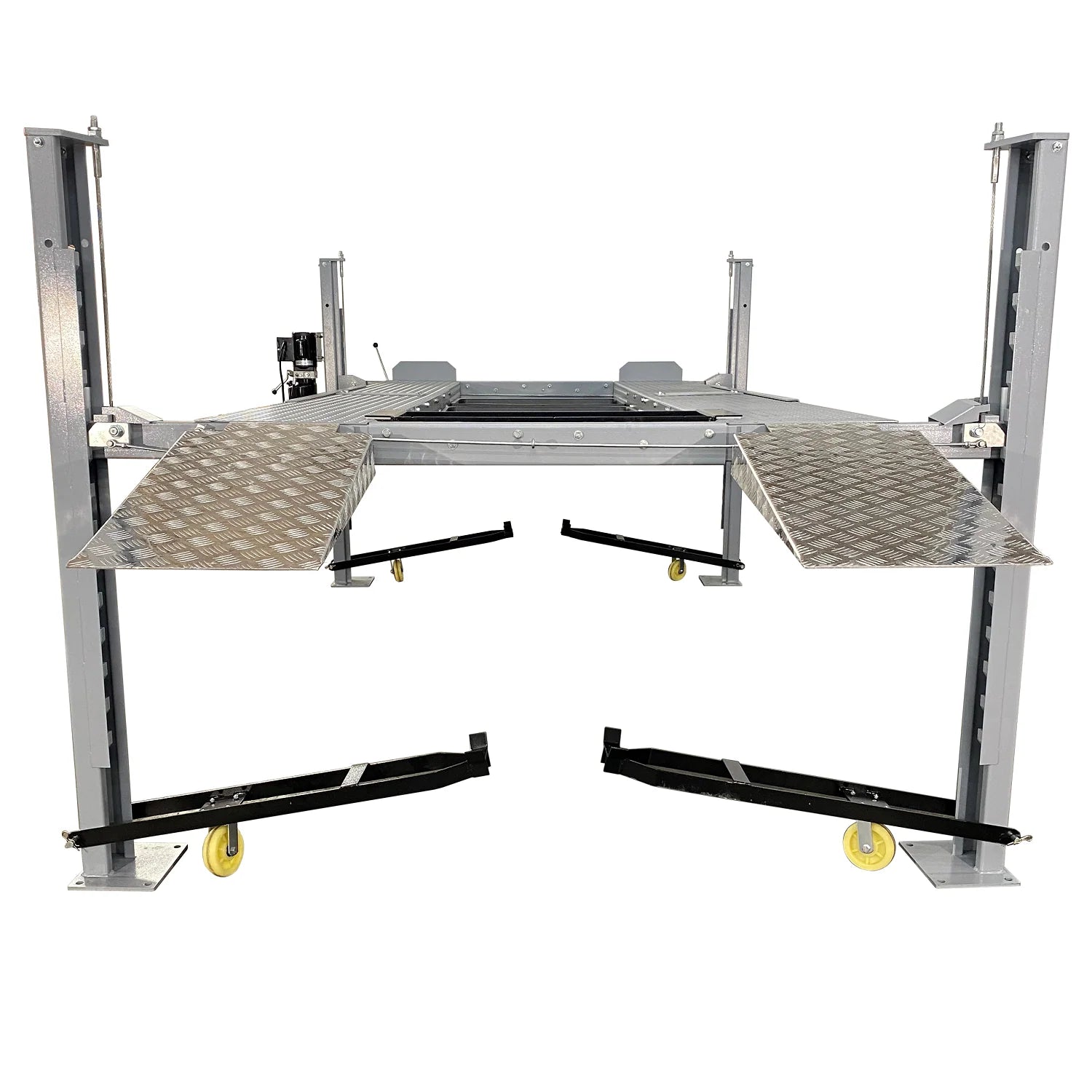

| Includes caster kit for easier lift repositioning when unloaded |

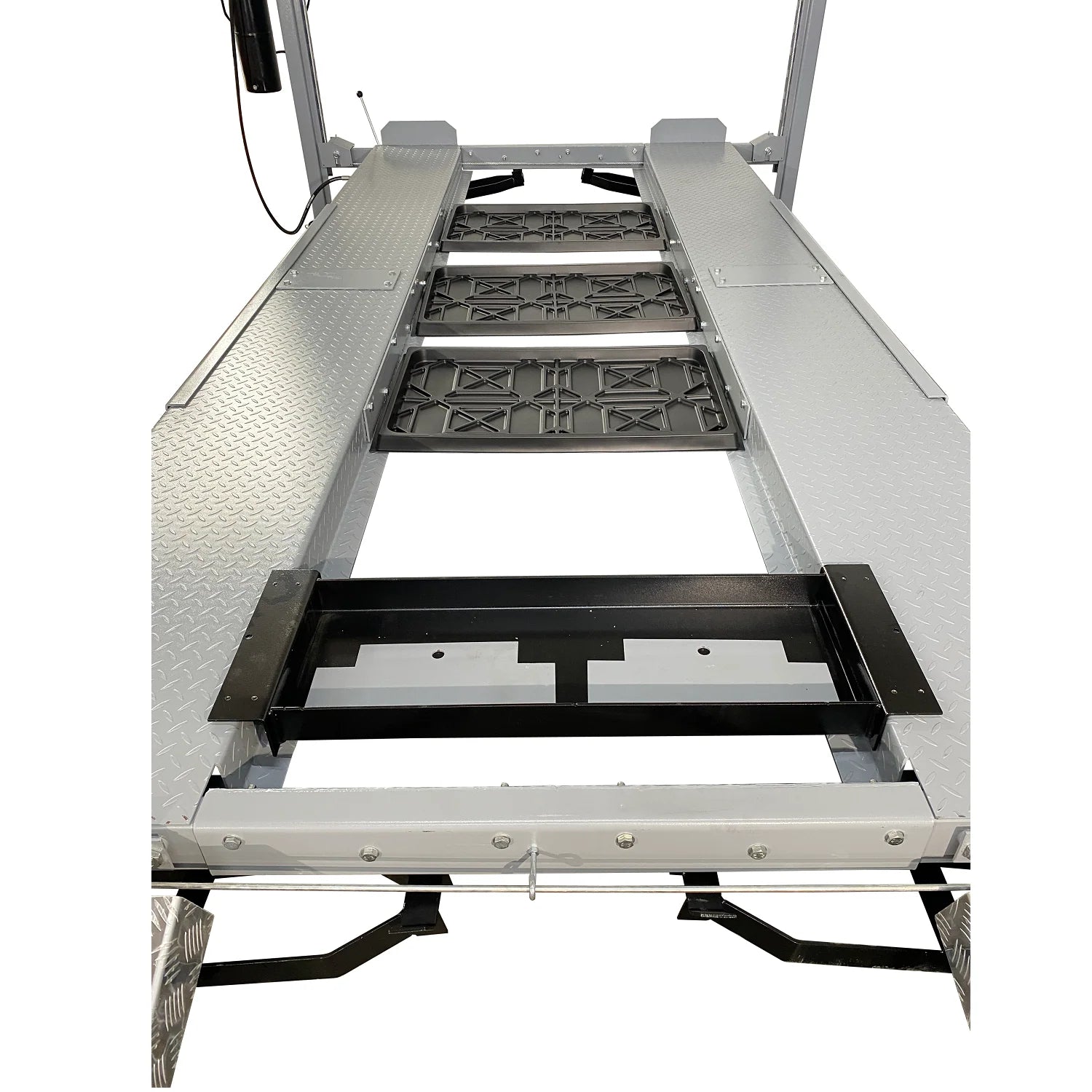

| Includes three drip trays to help protect vehicles stored underneath |
| Built-in jack tray allows lifting one end of a vehicle for service |
| Aluminum approach ramps included for easy vehicle loading |

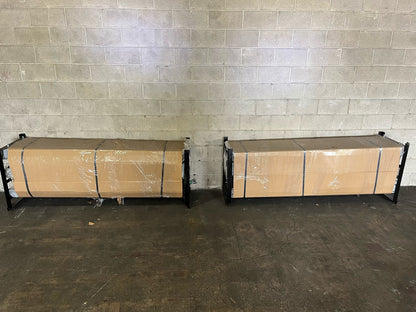

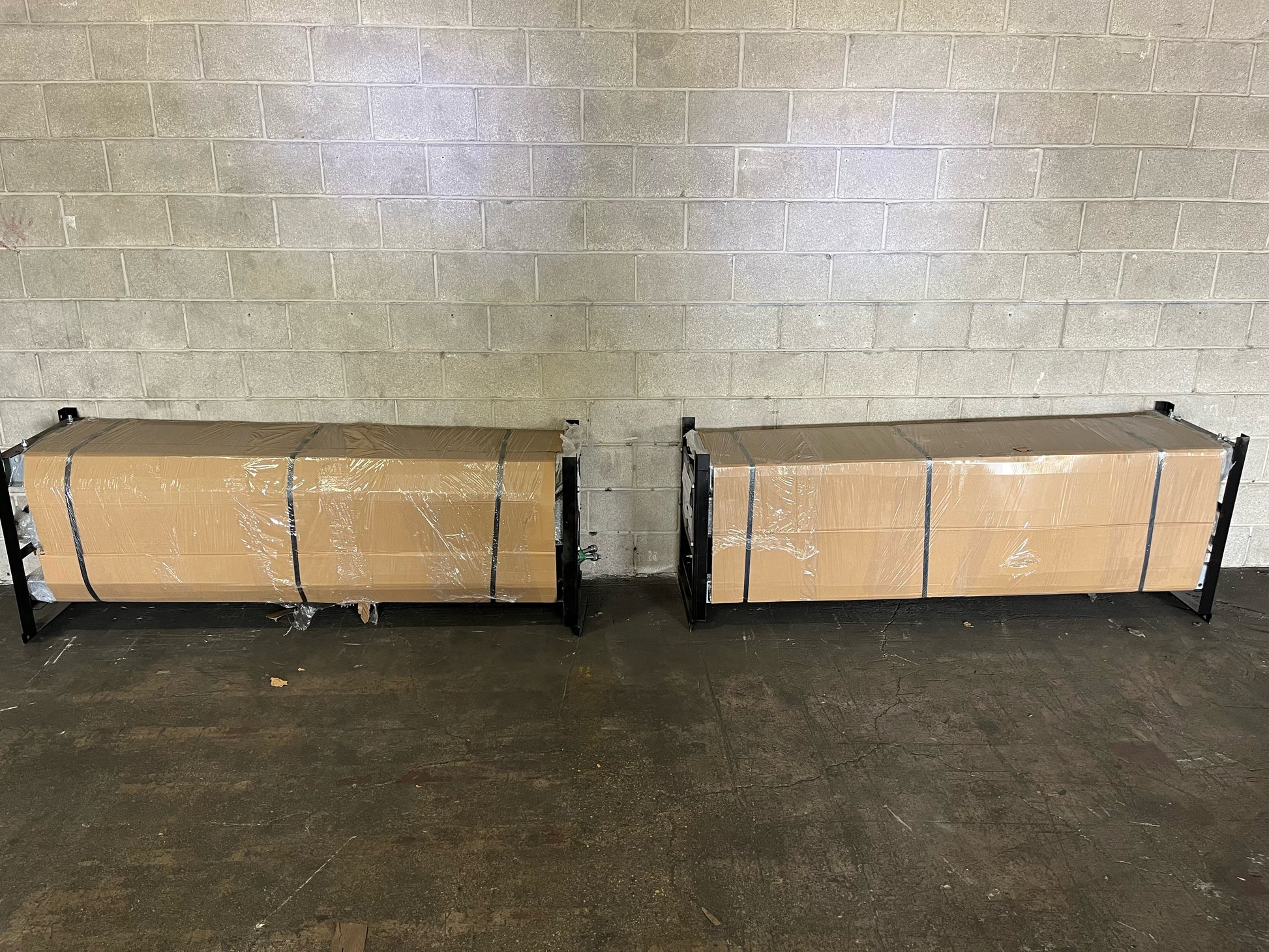

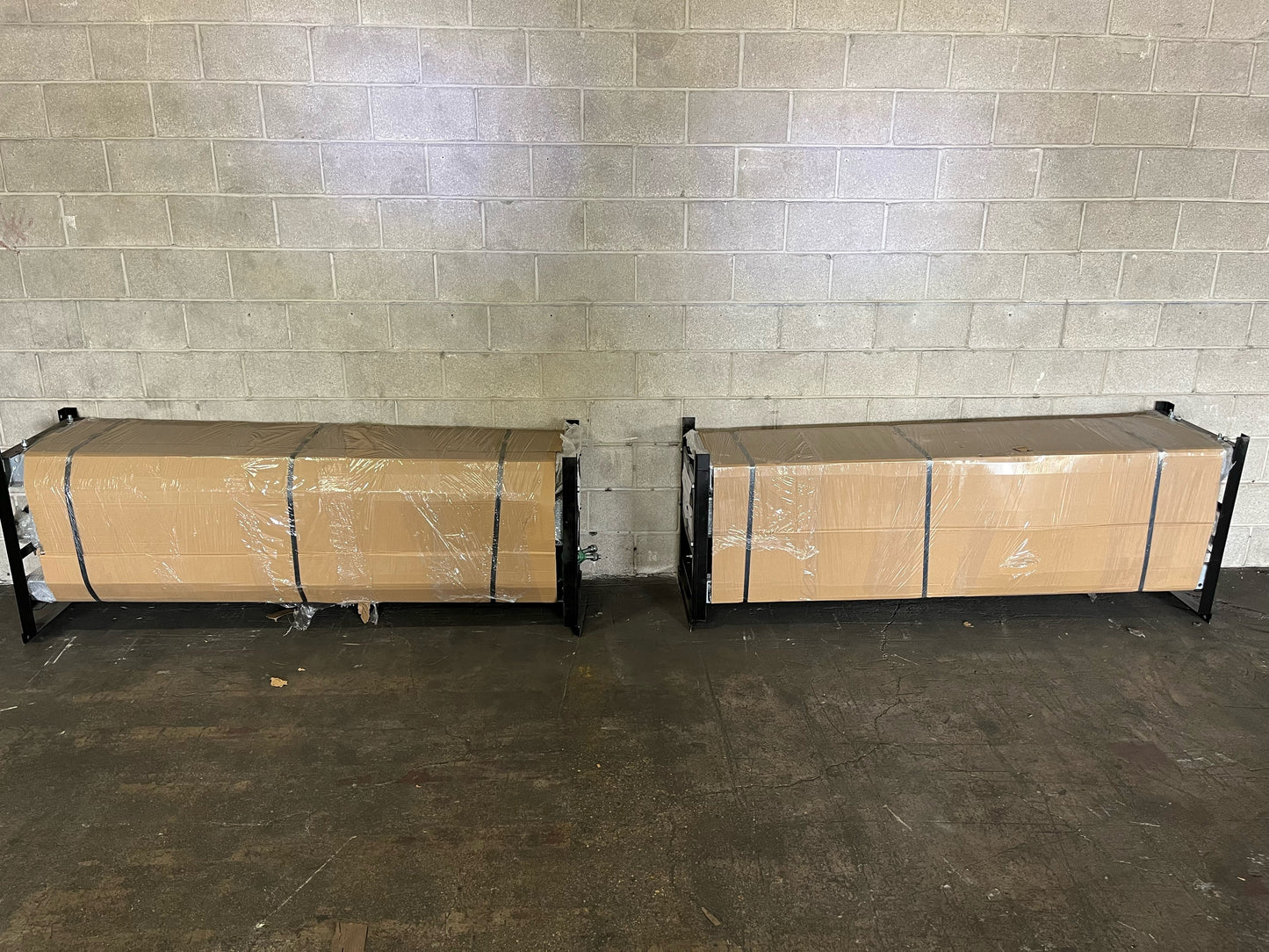

| Forklift-free shipping design for easier unloading |
| Ideal for home garages, storage facilities, and automotive enthusiasts |
| Product Specifications | |
|---|---|
| Model | NSS8X-1 |
| Product Type | Four Post Parking Storage Lift |
| Capacity | 8,000 lbs |
| Lift Height | 72" |
| Height Under Runway | 69" |
| Overall Height | 84" |
| Overall Length | 175" |
| Overall Width | 106" |
| Drive-Thru Width | 93" |
| Runway Length | 165" |
| Runway Width | 18" |
| Width Between Runways | 37" |
| Outside Runway Width | 73" |
| Locking Positions | 10 Positions |
| Lock Release | Single Point |
| Motor | 3 HP |
| Voltage | 110V / 30 Amp |
| Lift Time | Approximately 40 Seconds |
| Hydraulic Fluid | AW32 |
| Concrete Requirement | Minimum 4" Reinforced Concrete |
| Shipping Weight | 1,600 lbs |
| Warranty | 1 Year Parts Warranty |
Triumph NSS8X-1 8,000 lb four post parking lift with 72" lift height. Store two vehicles in one garage space with included drip trays, jack tray, and caster kit.
