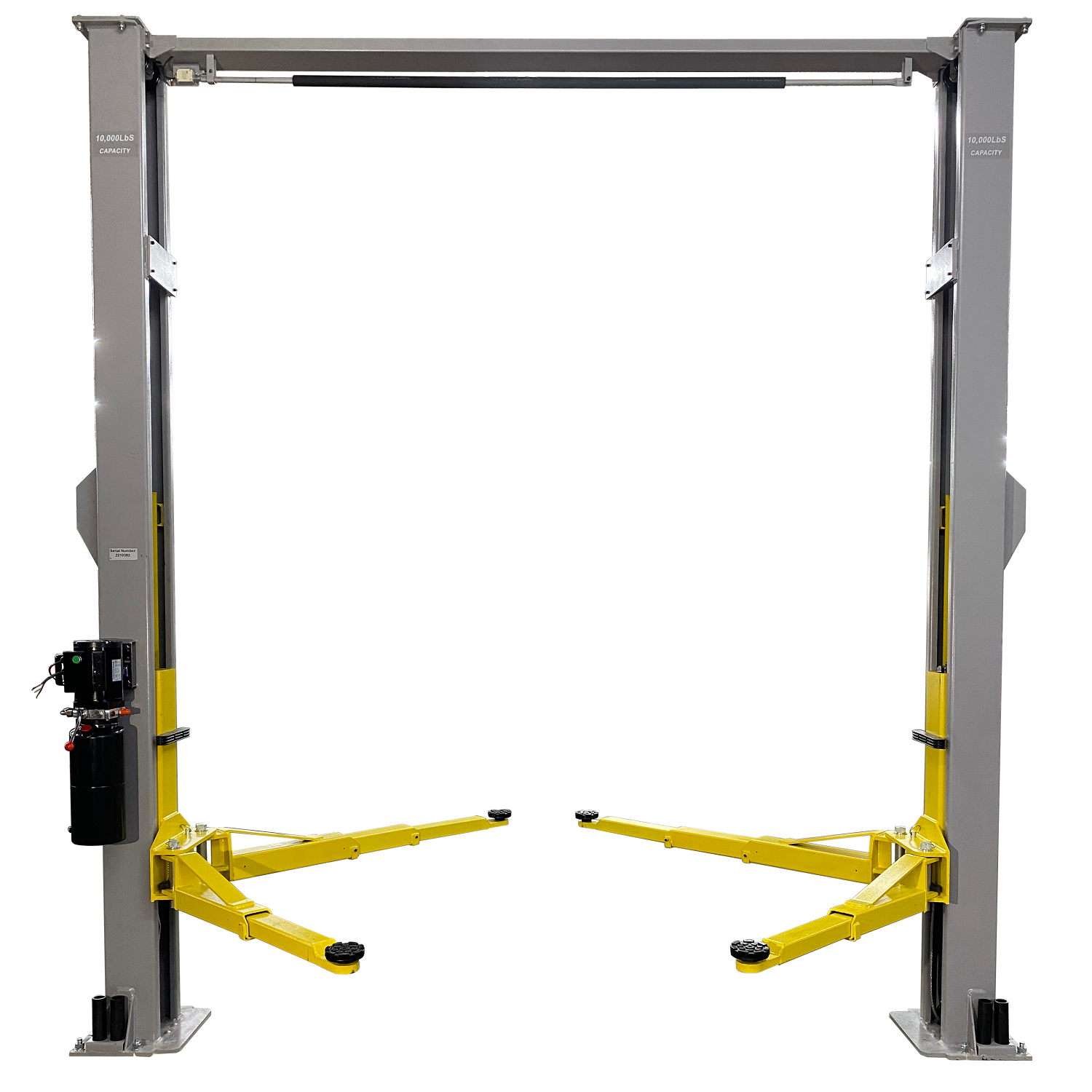

The Triumph NTO-10A 10,000 lb Two Post Lift is a powerful and space-efficient solution designed for both professional repair shops and serious home garages. Built with an overhead configuration and heavy-duty construction, this lift delivers the strength, speed, and reliability needed to safely service a wide range of vehicles—from compact cars to full-size trucks.

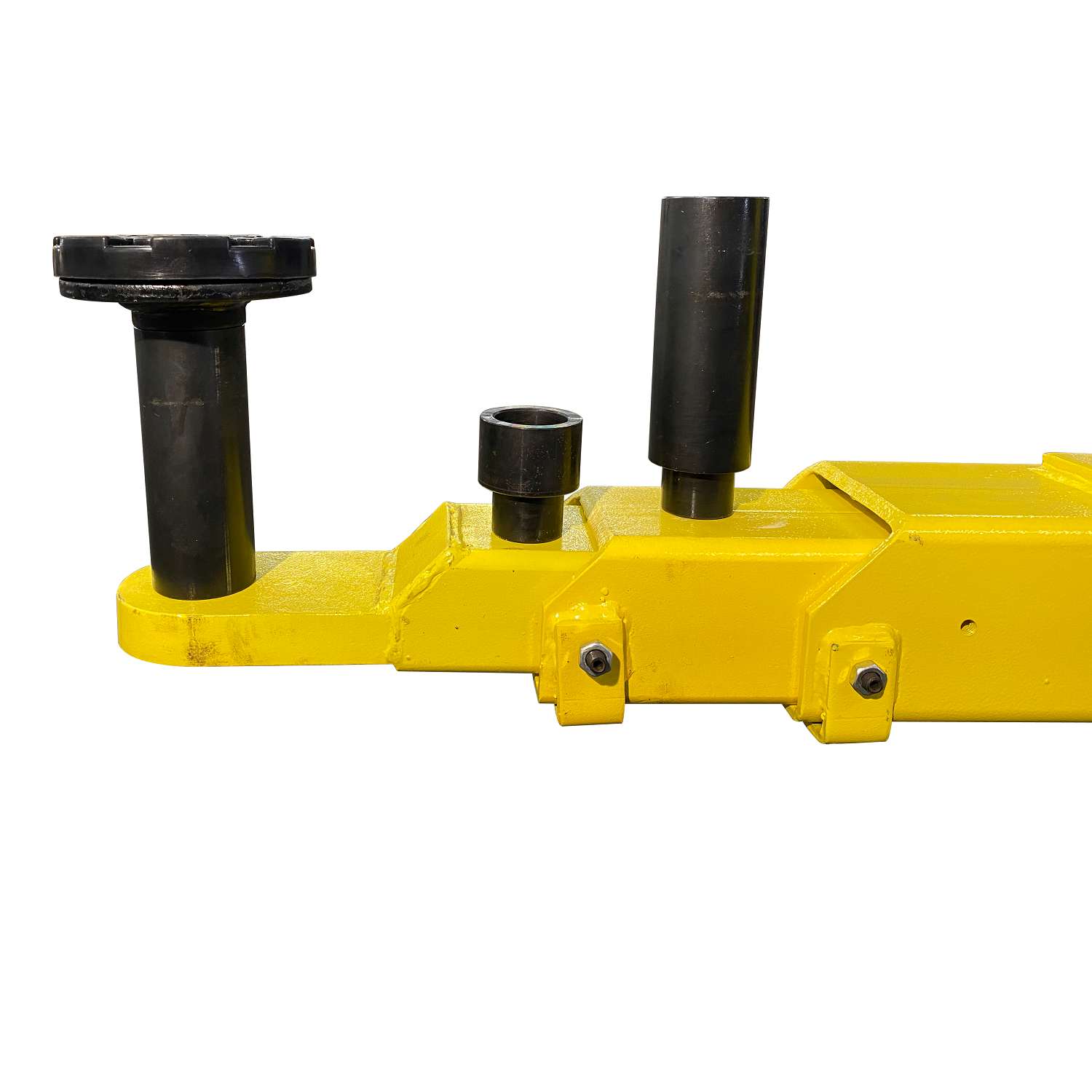

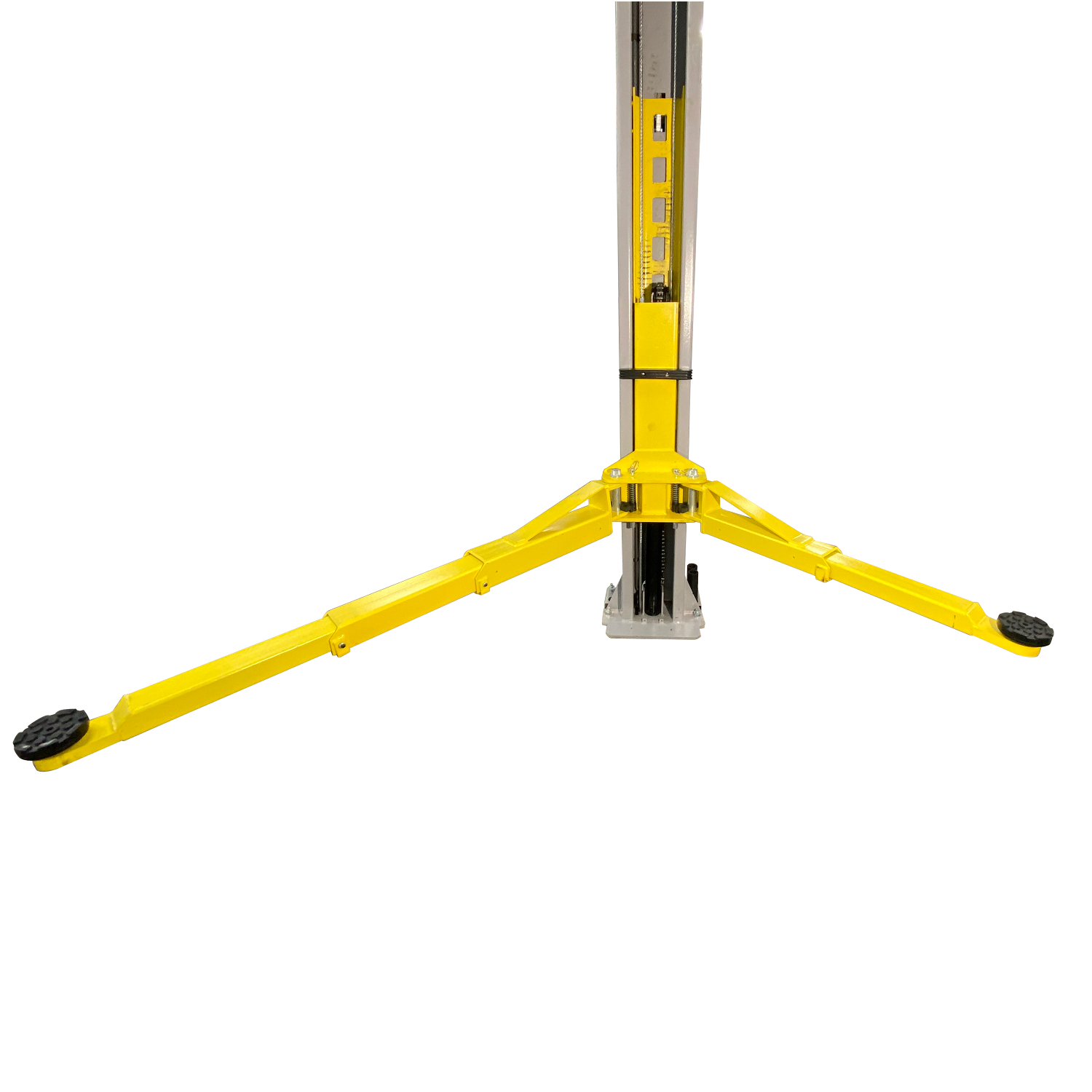

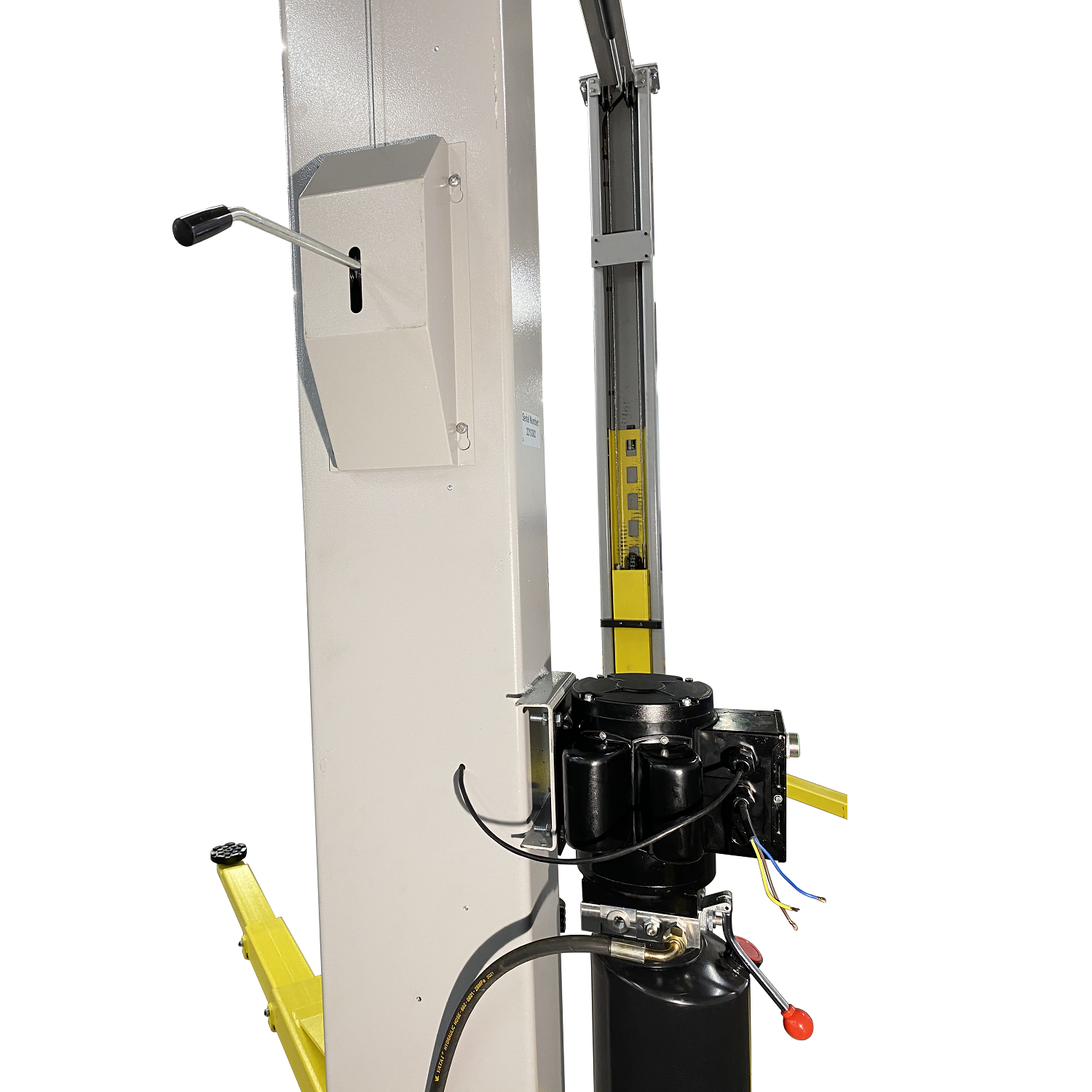

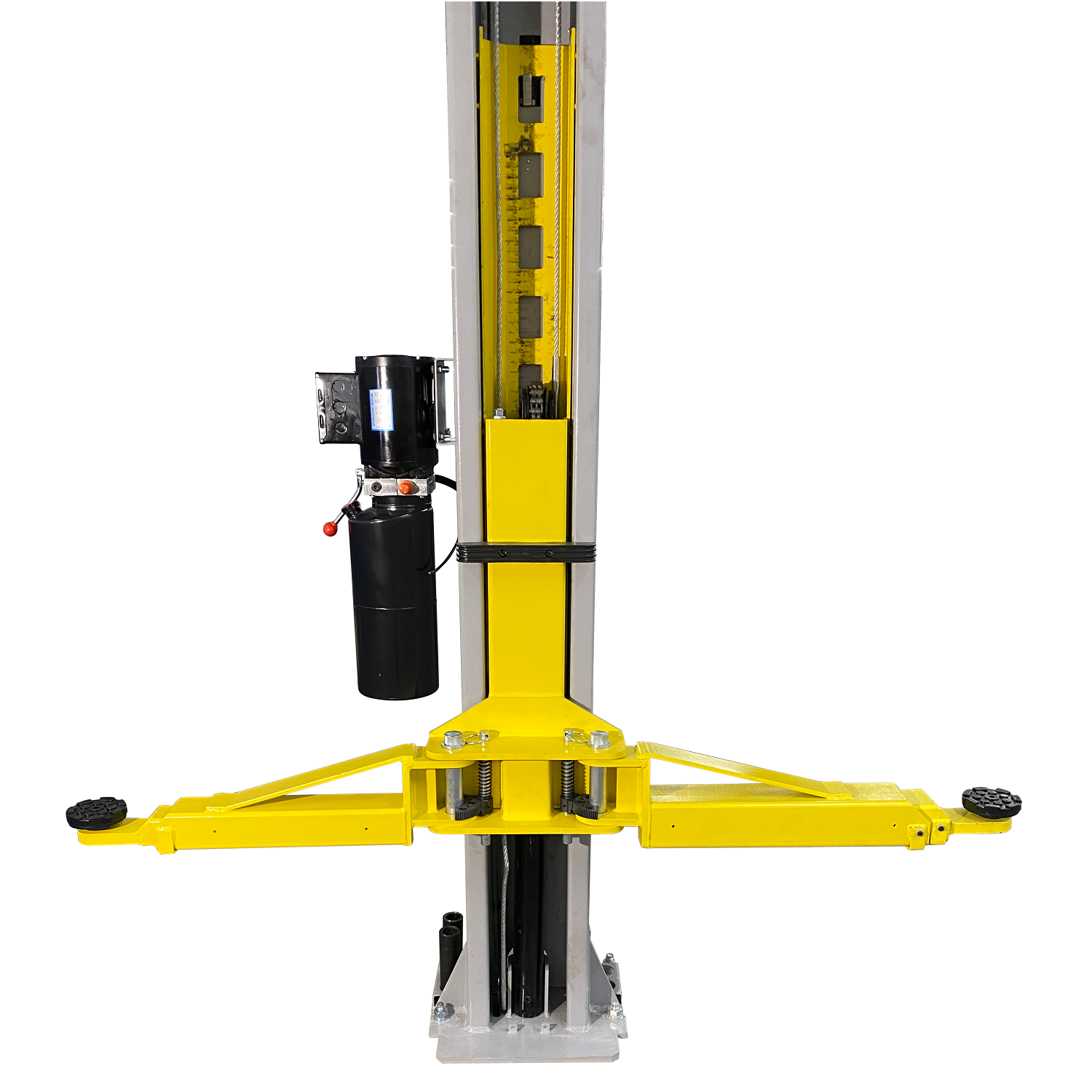

Equipped with versatile three-stage arms, the NTO-10A provides extended reach and flexible vehicle positioning, making it ideal for mixed fleets. A single-point lock release system ensures smooth, synchronized lowering, while the overhead bar keeps hydraulic lines and cables safely out of the work area for a cleaner, safer shop environment.

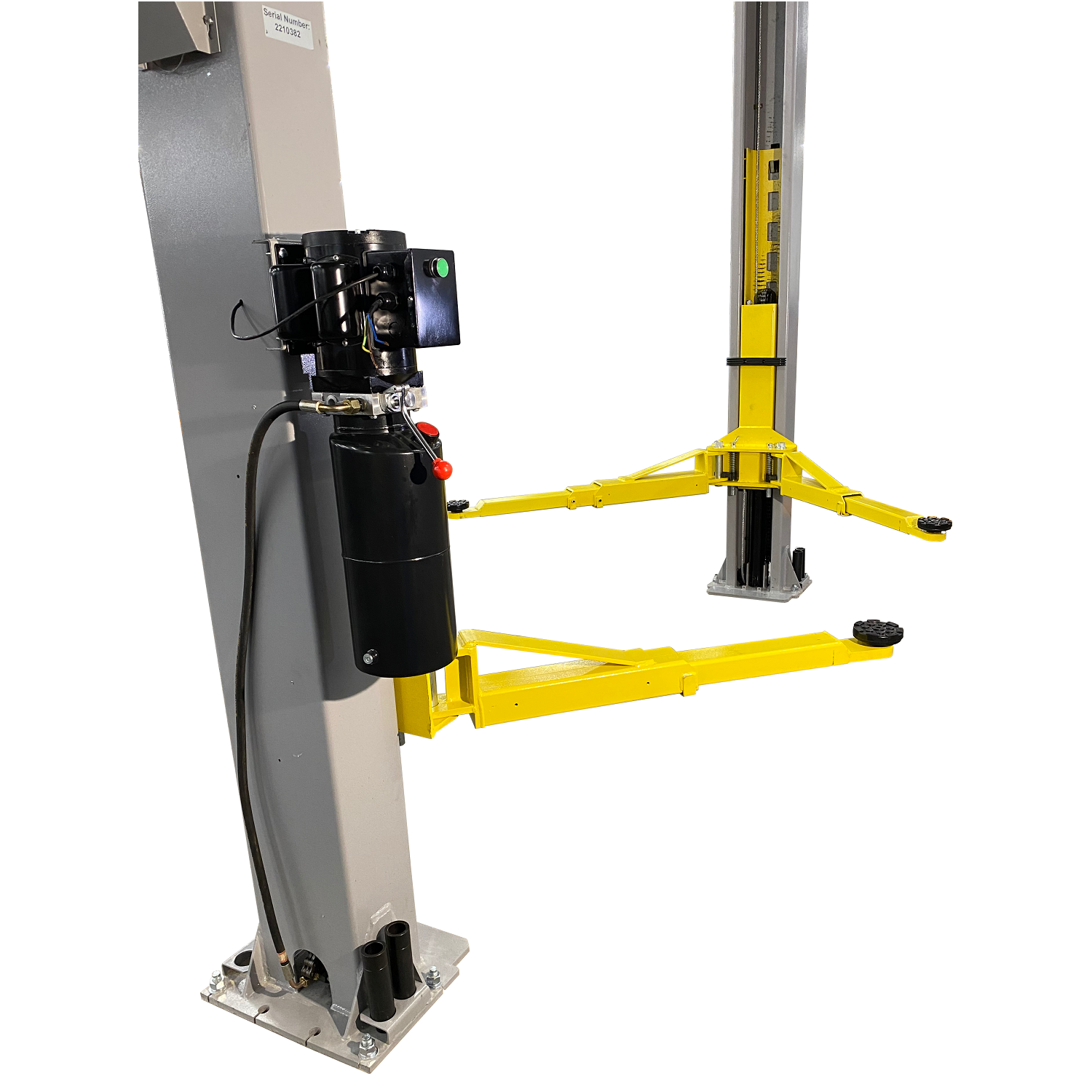

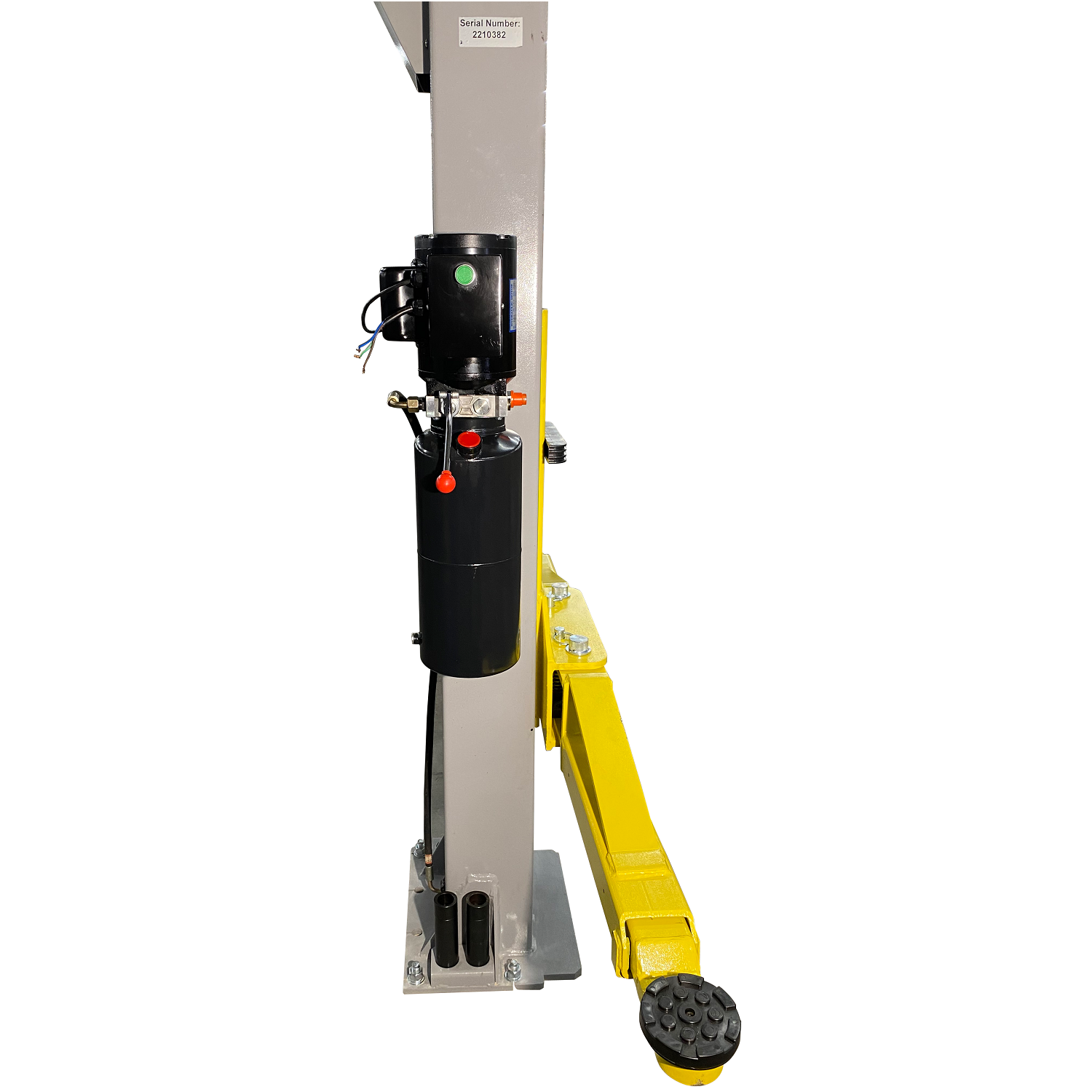

Powered by a robust 3 HP motor, this lift raises vehicles to full working height in just 40 seconds, maximizing productivity without sacrificing safety. With its compact base plate design and overhead style, the NTO-10A fits comfortably in most garages while offering professional-grade performance at an accessible price point.
| Product Features |
|---|
| • 10,000 lb lifting capacity for cars, trucks, and SUVs • Overhead two-post design keeps hoses and cables off the floor • Three-stage arms provide extended reach and vehicle versatility • Single-point lock release for fast, synchronized lowering • Powerful 3 HP motor with quick 40-second lift time • Electric safety cutoff for added operator protection • Compact base plate footprint fits most garages • Truck adapters included for increased vehicle compatibility • Power unit and mounting hardware included • CE Certified and built in ISO9001 certified facilities |
| Product Specifications | Details |
|---|---|
| Lift Capacity | 10,000 lbs |
| Style | Overhead Two Post |
| Overall Height | 145" |
| Overall Width | 133" |
| Lifting Height | 72" |
| Distance Between Posts | 107" |
| Drive-Thru Width | 96" |
| Lowered Height | 4.5" |
| Base Plate Size | 18" x 17" |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Motor | 3 HP |
| Power Requirement | 220V, 30 Amp Breaker |
| Concrete Requirement | 4" Slab, 3,000 PSI |
| Certification | CE / ISO9001 |
| Warranty | 1 Year Parts Only |
