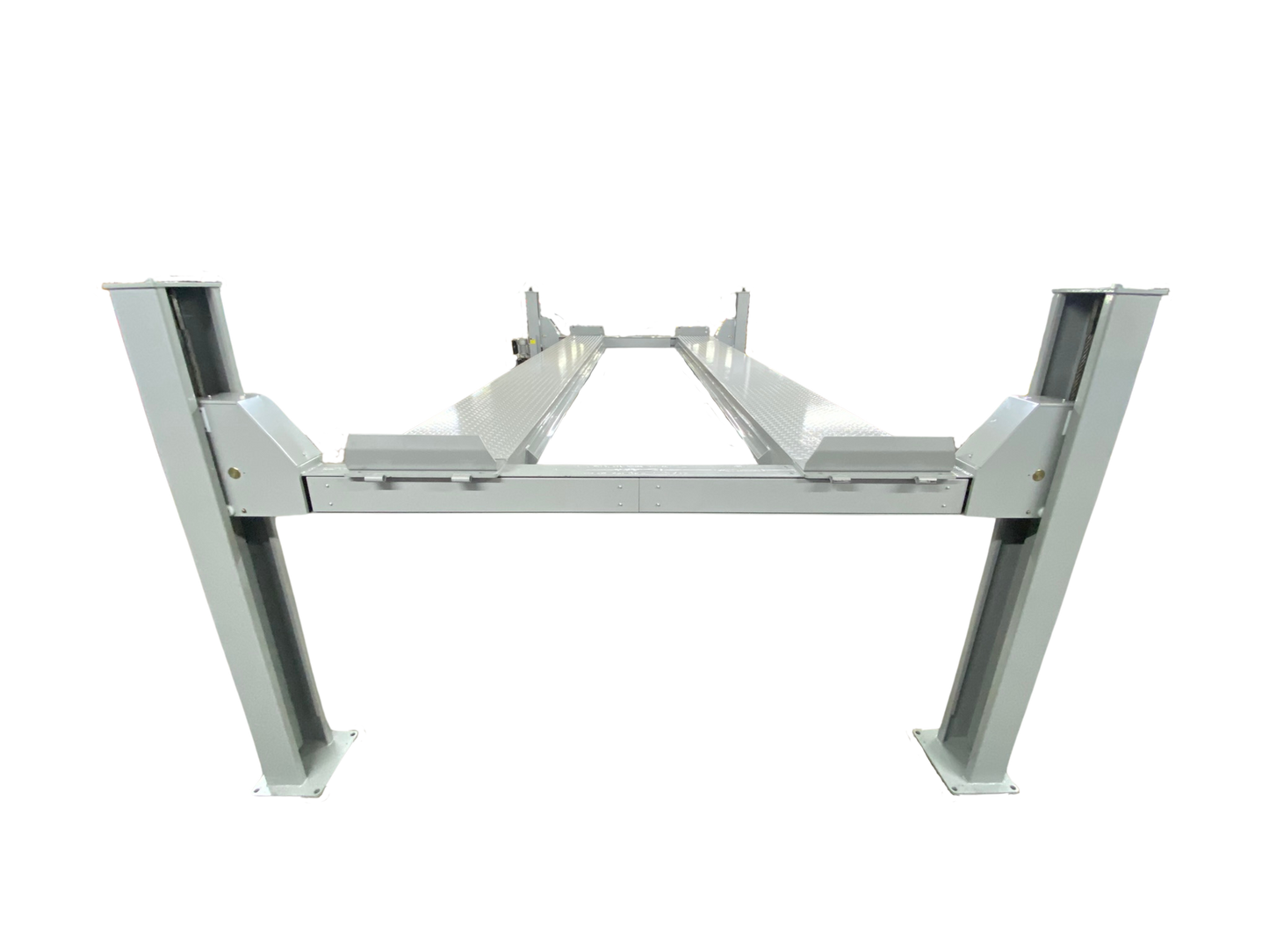

The Triumph NTR-24 is a commercial-grade, four-post automotive lift built to handle the most demanding jobs with strength, stability, and precision. With a massive 24,000 lb lifting capacity, this heavy-duty lift is ideal for servicing large trucks, buses, fleet vehicles, and industrial equipment.
Engineered for high-volume service centers and professional garages, the NTR-24 provides an expansive platform and unmatched durability. Its extra-long 289.9" runways and wide 24" tracks accommodate oversized vehicles with ease, while a lift height of 70.8" offers ample clearance for undercarriage access. Whether you're performing routine maintenance or major repairs, this lift delivers the power and space you need to work safely and efficiently.
Built with industrial-grade steel and designed for maximum stability, the NTR-24 features 9 locking positions, ensuring secure lifting at multiple working heights. The 220V single-phase power system drives a smooth, reliable hydraulic lift mechanism capable of handling even the heaviest loads with ease.
This lift does not include the RJ5000 rolling jack, but it is compatible for added versatility. Perfect for commercial repair shops, fleet service operations, and municipal garages, the Triumph NTR-24 stands as a top-tier solution for heavy-duty lifting needs.
| Key Features |
|---|
| 24,000 LB Capacity – Engineered for large commercial vehicles, heavy-duty trucks, buses, and fleet service. |
| Extra-Long Runways – Accommodates oversized and long-wheelbase vehicles. |
| Wide Runway Design – 24" wide platforms for superior support and stability. |
| 9 Locking Positions – Multiple heights for flexible access and safe working conditions. |
| Rugged Steel Construction – Built for durability in demanding commercial environments. |
| Smooth Hydraulic Operation – Reliable lift performance using 220V single-phase power. |
| Ready for Rolling Jacks – Compatible with RJ5000 (sold separately) for added versatility. |
| Specification | Details |
|---|---|
| Lift Model | NTR-24 |
| Capacity | 24,000 lbs |
| Overall Height | 93.1″ |
| Overall Length (w/o ramps) | 300″ |
| Overall Length (w/ ramps) | 338.9″ |
| Overall Width | 150.1″ |
| Minimum Runway Height | 9″ |
| Max Lifting Height | 70.8″ |
| Runway Length | 289.9″ |
| Runway Width | 24″ |
| Between Runways | 45.3″ – 49.2″ |
| Width Between Columns | 131.8″ |
| Locking Positions | 9 |
| Electrical Requirement | 220V Single Phase |
| Shipping Weight | 6,614 lbs |
| Shipping Dimensions | 295″ x 30″ x 43″ |
