Tuxedo TP9KAC-TUX Clear Floor 9,000lb Two Post Lift

Tuxedo TP9KAC-TUX Clear Floor 9,000lb Two Post Lift

Starting at $2,249.00
$2,399.00 Starting at $2,249.00
Sold out
$2,249.00
$2,399.00 $2,249.00
Sold out
Select Pickup or Delivery for final price.

Availability:  In Stock

Fulfillment
Secure checkout
BBB Accredited Business Verify accreditation →
Financing available Freight support Call 972-903-5162
SKU: TP9KAC-TUX
Vendor: Tuxedo
Category: Two Post Lift
Tags: Automotive Lifts Car Lifts Two Post Lift

Shipping

Shipping and fulfillment options vary by product. Most lifts and equipment include a flat-rate freight charge that is displayed on the product page or at checkout.

Certain oversized or specialized products require a custom freight quote due to size, weight, destination, or other delivery requirements. When a freight quote is required, it will be clearly identified on the product page.

For products marked “Freight Quote Required,” select the Freight Quote option on the product page or contact our team by phone or live chat. Submitting a freight quote request does not place an order or add the product to your cart.

Product Manual

TP9KAC-TUX Manual

Warranty

View Tuxedo Warranty Policy ↗

View full product details

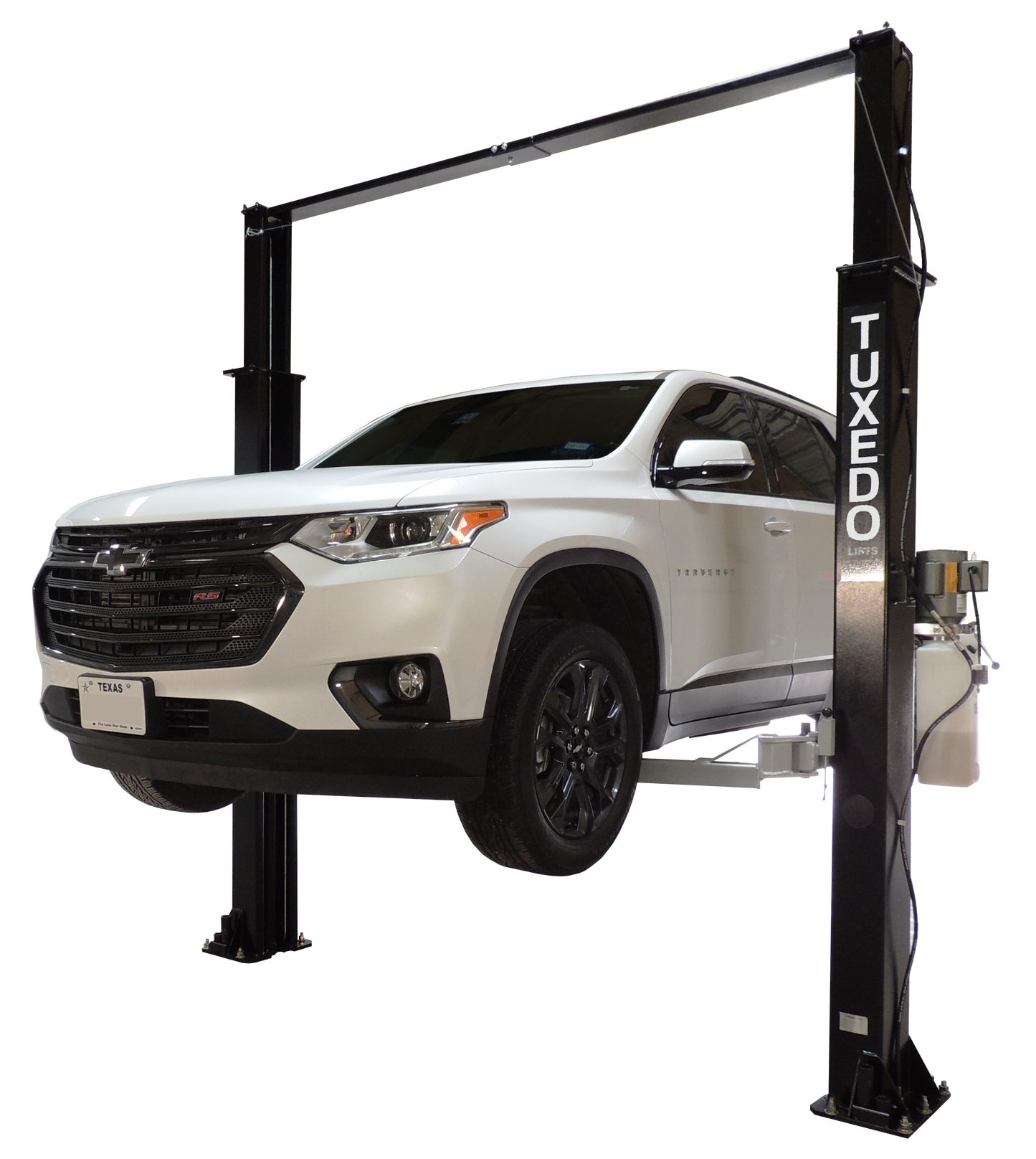

Tuxedo TP9KAC-TUX Two Post Clear Floor Lift

The Tuxedo TP9KAC-TUX Two Post Clear Floor Lift is built for professional automotive shops and serious DIY mechanics who demand efficiency, safety, and access. With a 9,000 lb lifting capacity and an asymmetric arm design, this lift provides superior door clearance and vehicle accessibility. Its clear floor design eliminates obstructions, giving you a clean, open workspace for easier movement and maintenance. Featuring a powerful chain drive cylinder system, automatic arm restraints, and a smooth 50-second lift time, the TP9KAC-TUX is the perfect combination of performance, safety, and reliability.

Product Features
  • 9,000 lb lifting capacity handles most passenger cars, SUVs, and light trucks

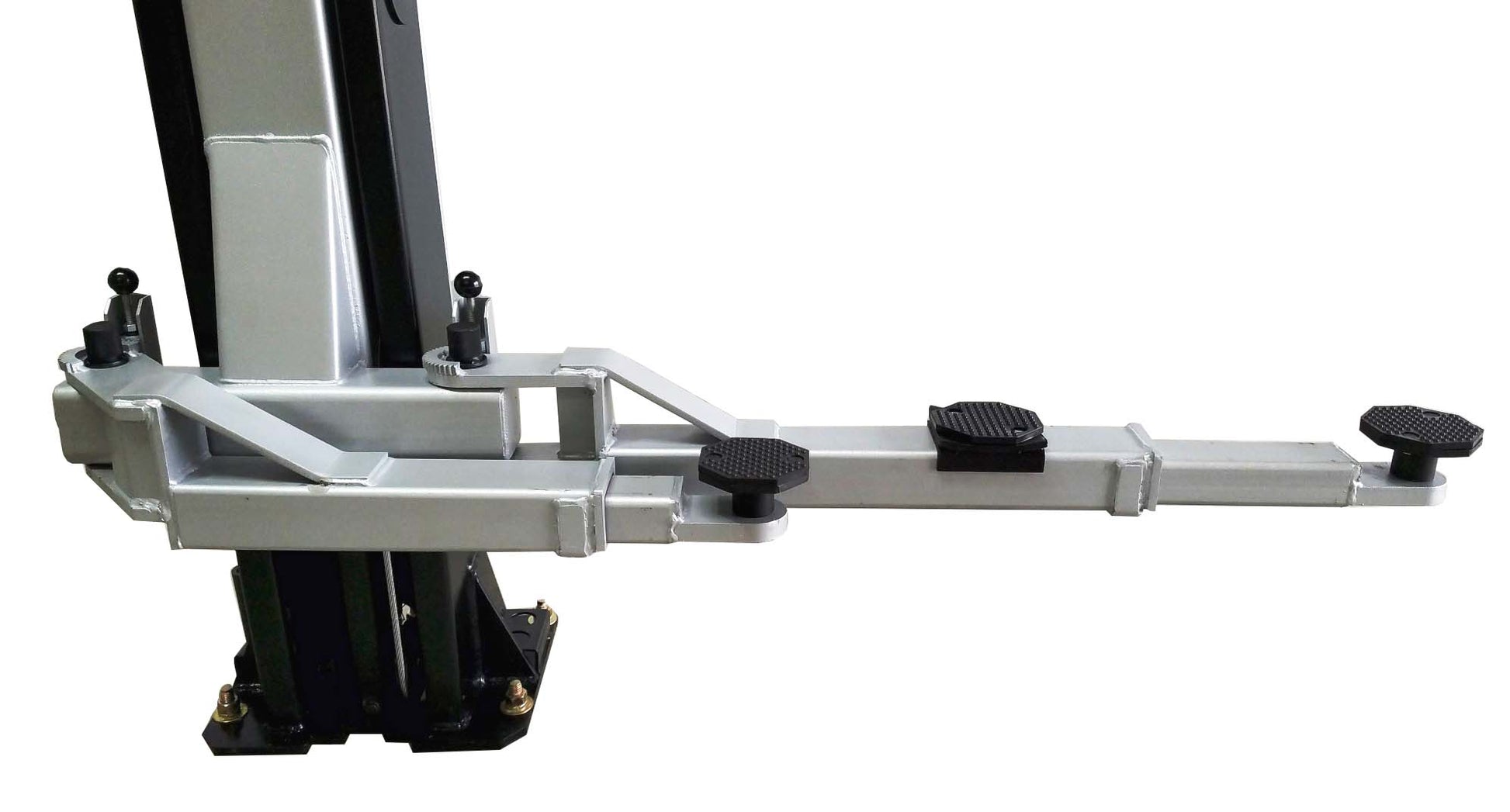

  • Asymmetric arm configuration for improved vehicle door access and balance
  • Clear floor design allows unobstructed movement under the lift
  • Heavy-duty chain drive cylinders for dependable performance
  • Dual-point safety lock release for secure operation
  • Automatic arm restraint system engages when lifting
  • Low-profile drop-in lift pads ideal for low-clearance vehicles
  • Includes saddle pad adapters and stackable height adapters
  • Durable black powder-coated finish for a professional appearance
  • Designed for easy installation, smooth operation, and long-term reliability

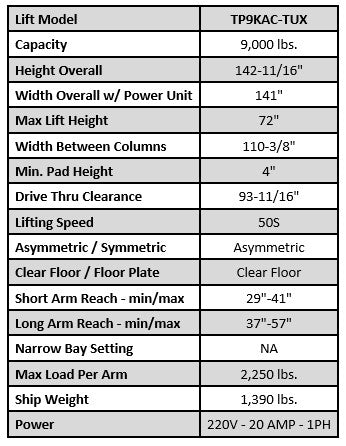

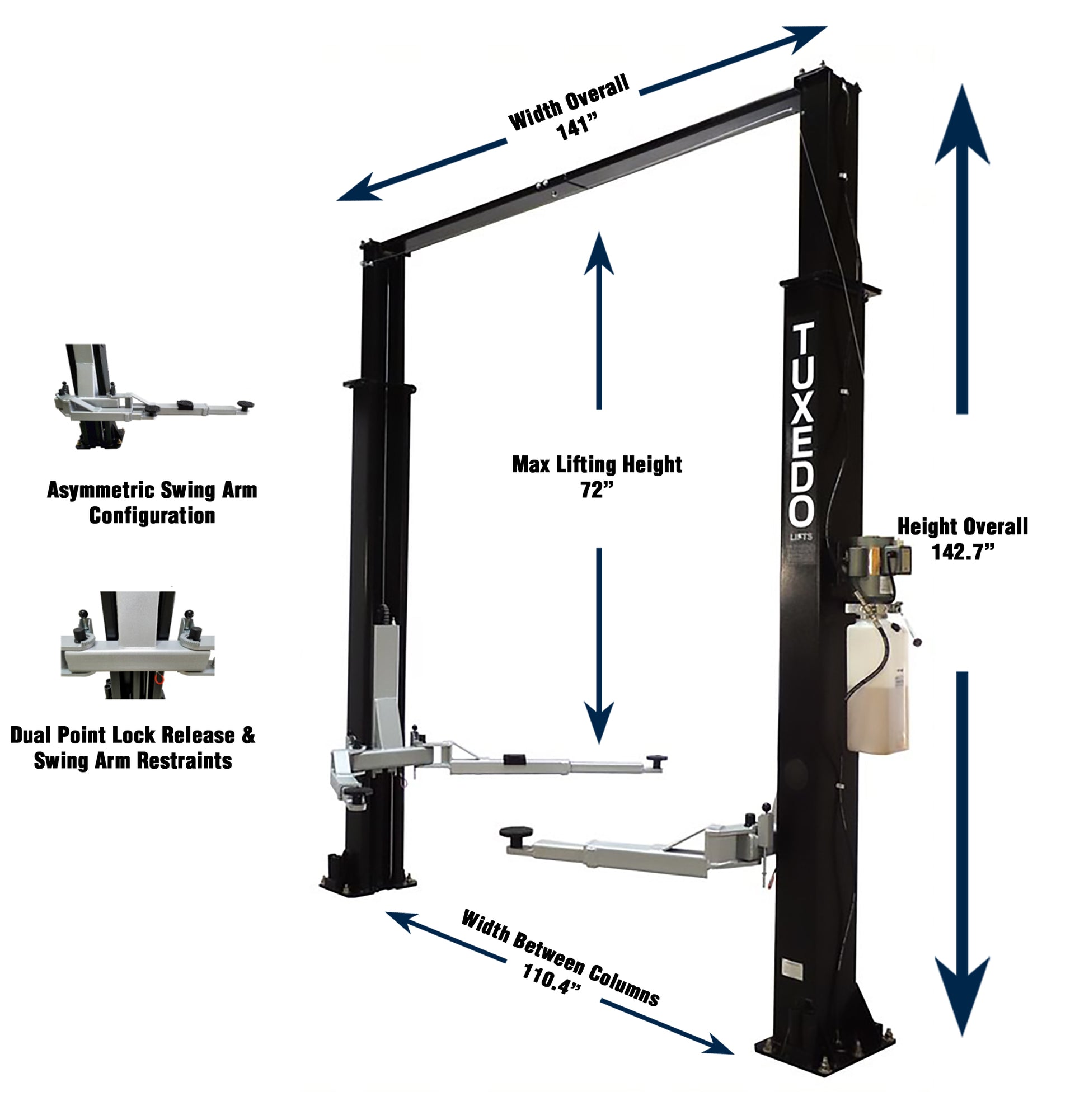

Product Specifications Details
Model TP9KAC-TUX
Lifting Capacity 9,000 lbs
Overall Height 142-11/16″
Overall Width (with Power Unit) 141″
Width Between Columns 110-3/8″
Drive-Thru Clearance 93″
Max Lift Height 72″
Min. Pad Height 4″
Lifting Speed 50 seconds
Lift Type Clear Floor / Asymmetric
Power Requirements 220V – 20 AMP – 1PH
Ship Weight 1,390 lbs
Warranty 5 Years Structure, 1 Year Parts
