Tuxedo TP9KSCX 9,000lb Clear Floor Two Post Lift - Symmetric Arms

Tuxedo TP9KSCX 9,000lb Clear Floor Two Post Lift - Symmetric Arms

Regular price $2,750.00
Regular price $2,899.00 Sale price $2,750.00
Sold out

AvailabilityLow stock: 25 left

SKU: TP9KSCX
Vendor: Tuxedo
Category: Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

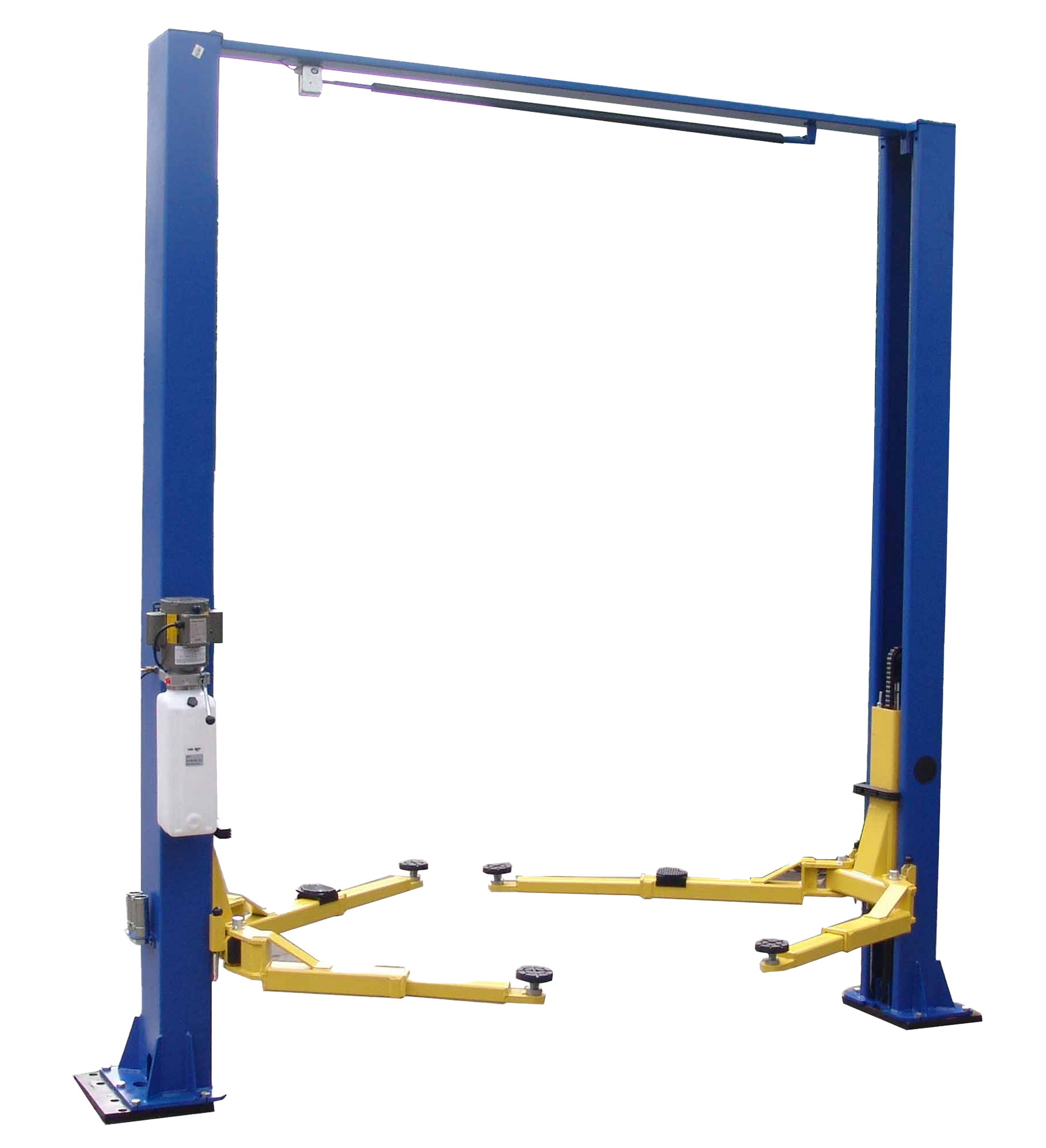

Tuxedo TP9KSCX 9,000 lb Clear Floor Two Post Lift - Symmetric Arms

The Tuxedo TP9KSCX 9,000 lb Clear Floor Two Post Lift delivers professional-grade lifting performance with the strength and stability you can trust. Designed with symmetric arms for balanced lifting, this heavy-duty two-post lift is perfect for full-size trucks, SUVs, and passenger cars. Its clear floor design eliminates obstructions between columns, providing a clean, open workspace ideal for transmission, exhaust, and undercar service.

Built for reliability and safety, the TP9KSCX features a dual point lock release system and an auto arm restraint system that securely locks your vehicle in place during operation. Chain drive cylinders provide smooth, consistent lifting performance, while internal hose routing and rubber door guards protect both your shop and vehicles from wear and damage. The low-profile spin-up lift pads and included stackable adapters make it versatile enough for everything from low-clearance sports cars to heavy-duty trucks. If you’re looking for a lift that combines strength, safety, and convenience — the TP9KSCX is your perfect fit.

Product Features
  • 9,000 lb lifting capacity for cars, trucks, and SUVs
  • Symmetric arms for balanced lifting and stable operation
  • Clear floor design for unobstructed undercar access
  • Dual point lock release for added safety and control
  • Auto arm restraint system ensures secure vehicle positioning
  • Chain drive cylinders for smooth, dependable lifting
  • Rubber door guards prevent scratches and damage
  • Internal hose routing keeps workspace neat and organized

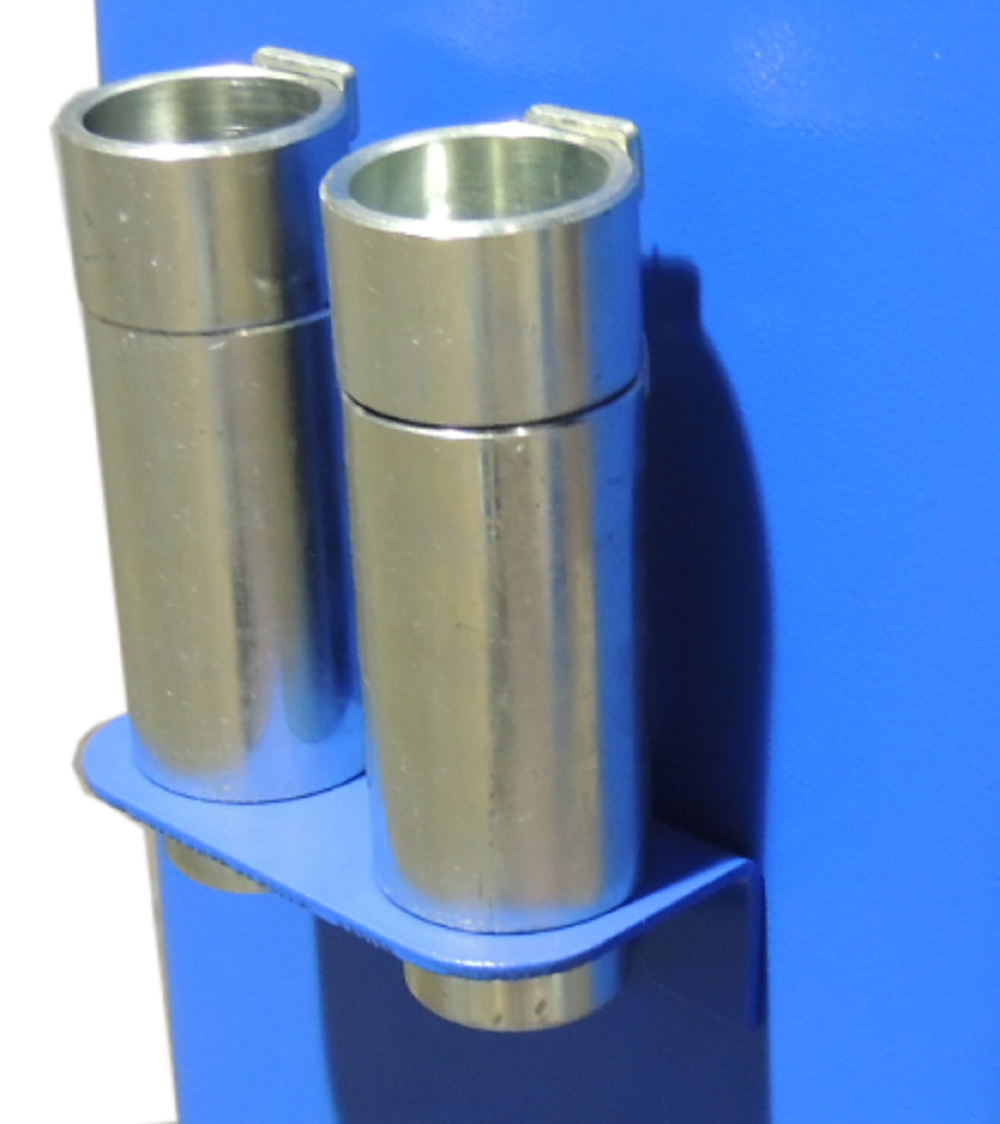

  • Low-profile spin-up lift pads with stackable adapters included
  • 5-year structural warranty / 1-year parts warranty under normal use

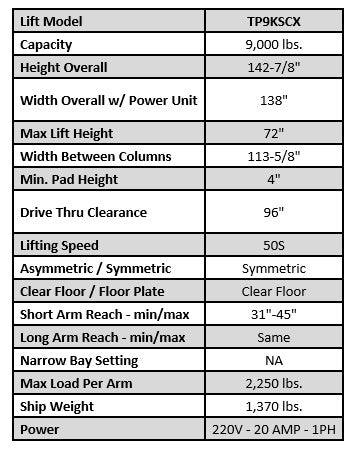

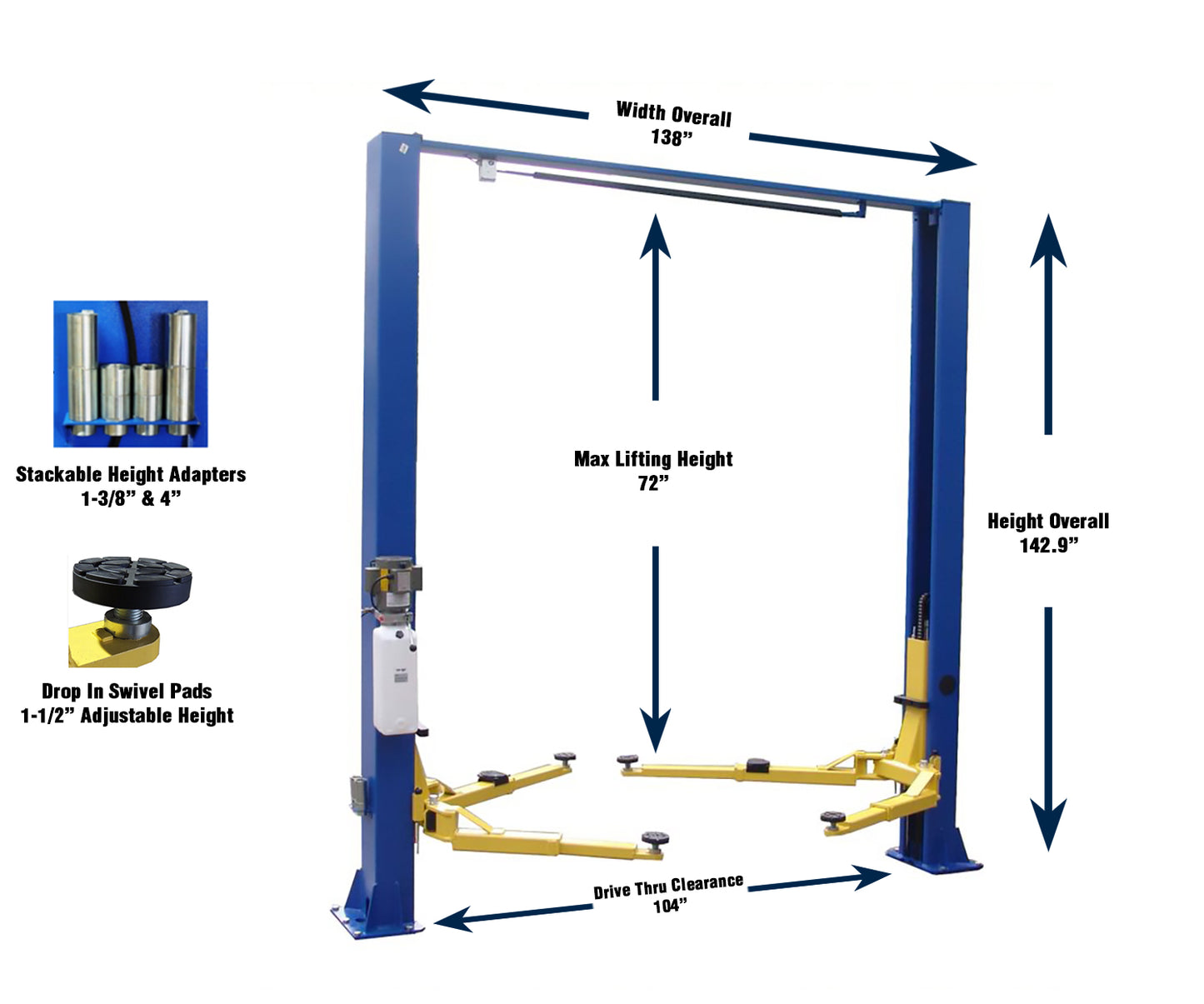

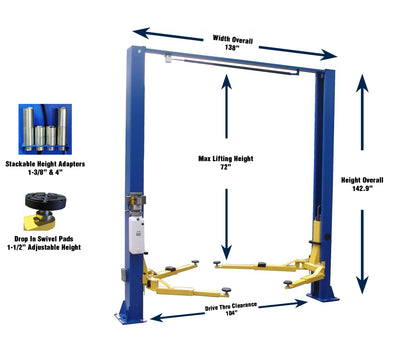

Product Specifications
Capacity 9,000 lbs
Overall Height 142-7/8″
Overall Width (w/ Power Unit) 138″
Width Between Columns 113-5/8″
Maximum Lift Height 72″
Drive-Thru Clearance 96″
Minimum Pad Height 4″
Lifting Speed 50 seconds
Arm Type Symmetric
Clear Floor / Floor Plate Clear Floor
Power Requirements 220V – 20 AMP – 1 PH
Shipping Weight 1,370 lbs
